SICOM3000A managed industrial switch, 16× 1 Gbit/s RJ45

SICOM3000A managed industrial switch, 16× 1 Gbit/s RJ45


Kyland

SICOM3000A-16GE-L2-L2: Layer 2 managed industrial switch, 16× RJ45 10/100/1000 Mbit/s. Two 24-48 VDC power inputs (18-72 VDC), IP40, -40 to +75 °C. More

Code: SICOM3000A-16GE-L2-L2

913 EUR excl. VAT (1 104,73 EUR Incl. VAT)
Recycling fee 0,04 EUR included in the price.
In stock
pcs
(2 pcs In stock)

Rezervace termínu

Get a quote
Kyland

SICOM3000A-16GE-L2-L2: Layer 2 managed industrial switch, 16× RJ45 10/100/1000 Mbit/s. Two 24-48 VDC power inputs (18-72 VDC), IP40, -40 to +75 °C. More

Code: SICOM3000A-16GE-L2-L2

Kyland SICOM3000A-16GE-L2-L2

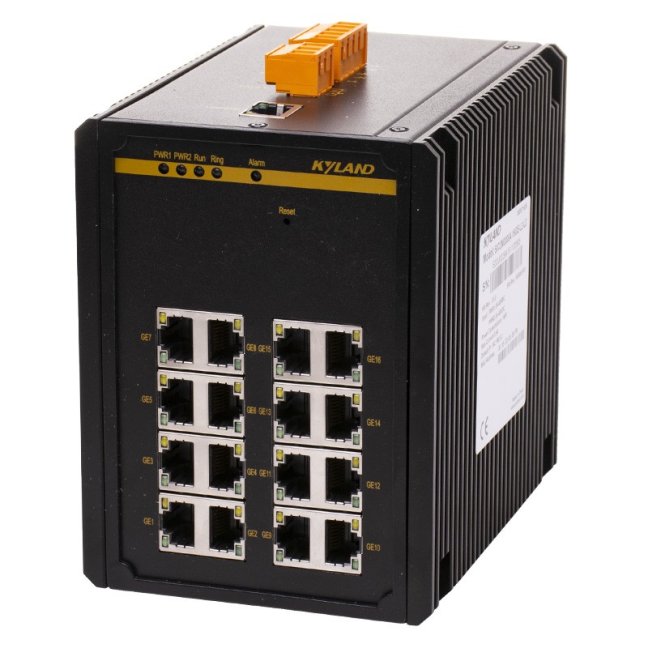

SICOM3000A - 16 gigabit RJ45 ports

SICOM3000A-16GE-L2-L2 connects sixteen Ethernet devices through RJ45 10/100/1000 Mbit/s ports. The gigabit ports are complemented by web, command line and SNMP management. This model designation does not include PN; we therefore do not attribute PROFINET support to this order variant. Two redundant 24-48 VDC power inputs allow separate power supply branches to be connected.

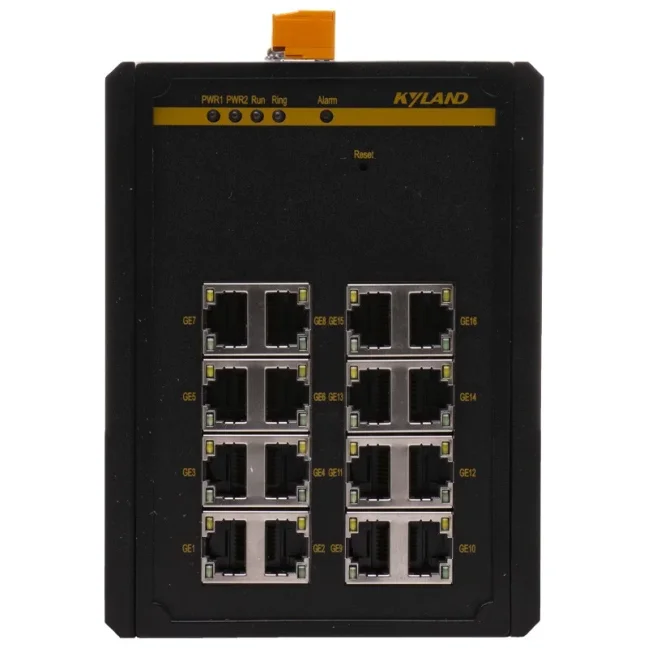

Kyland SICOM3000A-16GE-L2-L2 - sixteen RJ45 ports

Product selection and technical consultation
Send the full order number, required quantity and a description of the connections. We help you select the model and accessories and confirm the price and availability.

Enquire about a product and consultation
16× RJ45 10/100/1000 Mbit/s
VLAN, QoS and port diagnostics
2× 24-48 VDC; IP40

Switch applications

The switch connects PLCs, HMIs, industrial computers and other Ethernet devices in a control cabinet or industrial network. Port management, VLAN segmentation and diagnostics help separate communications and locate connection faults.

Ring redundancy requires the entire topology to be designed and the relevant protocols to be configured consistently. The two power inputs provide power supply redundancy; the Ethernet ring is configured separately.

Technical specifications

Order numberSICOM3000A-16GE-L2-L2
Manufacturer / seriesKyland SICOM3000A
TypeLayer 2 managed industrial Ethernet switch
Ethernet ports16× RJ45 10/100/1000 Mbit/s; automatic MDI/MDI-X
Optical ports / SFPThis order configuration has no optical ports or SFP slots.
Power supply24-48 VDC; permissible range 18-72 VDC

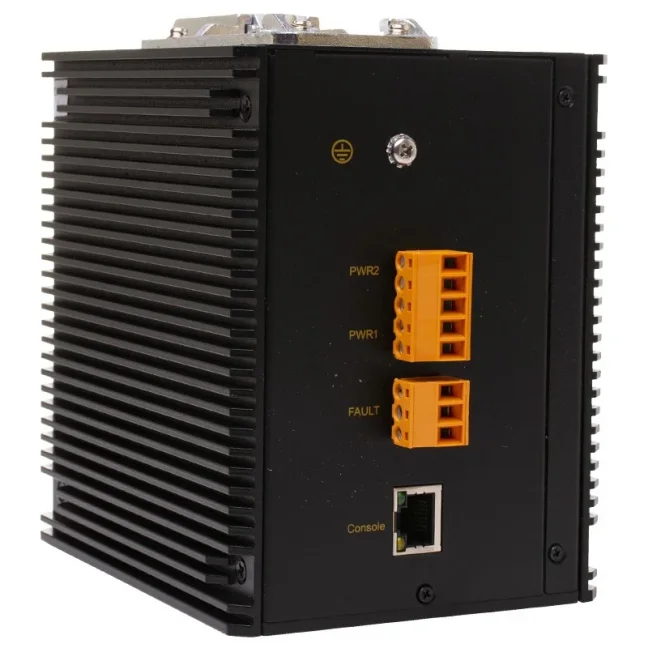

Power inputsTwo redundant inputs; overload and reverse polarity protection
Power terminal block5 poles, 5.08 mm pitch
Maximum power consumption<20 W for the large SICOM3000A chassis
ManagementWeb, CLI, RS232 console; SNMPv1/v2c/v3

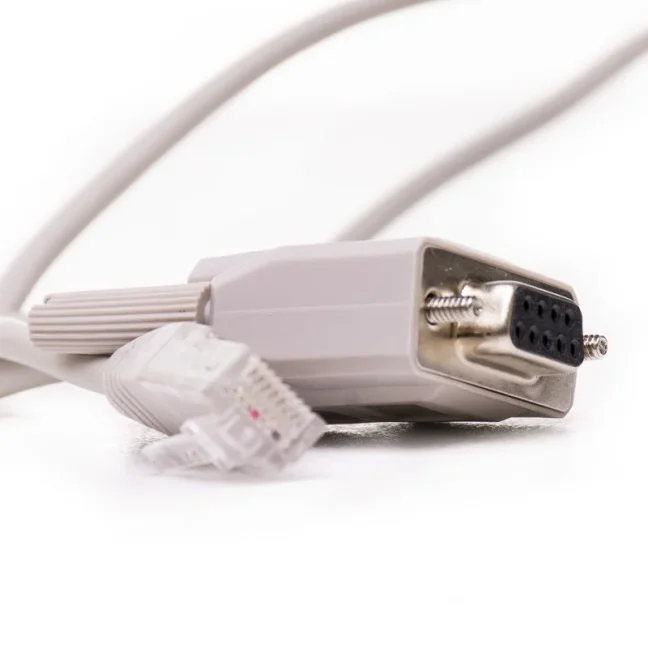

Console portRJ45, RS232; not an additional Ethernet port
DiagnosticsPort mirroring, RMON, Syslog, LLDP, loop detection, port and power alarms
VLANVLAN / PVLAN, GVRP; VLAN ID 1-4094
QoSIEEE 802.1p, DSCP; SP / WRR queues; ACL
Network redundancyDT-Ring, DT-Ring+, DT-VLAN, DRP/DHP, STP/RSTP/MSTP, G.8032 ERPS; MRP (MRM / MRC)
Network and management accessHTTPS/SSL, SSH, TACACS+, IEEE 802.1X, RADIUS, MAC address binding to ports
Industrial protocolsEtherNet/IP; Modbus/TCP
MAC address table8K
Packet buffer4 Mbit
Jumbo frames9.6 KB
Alarm contact3-pole terminal block, 5.08 mm pitch; max. 250 VAC / 220 VDC, max. 2 A
IndicatorsRun, Alarm, PWR1, PWR2, Ring; Link/ACT and port speed
Reset buttonRestart and restore the default configuration
Degree of protectionIP40
Chassis / coolingMetal chassis; natural convection, fanless
Dimensions (W × H × D)102 × 135 × 137 mm; excluding connectors, DIN rail and panel mounting parts
Device weight1.9 kg; large chassis

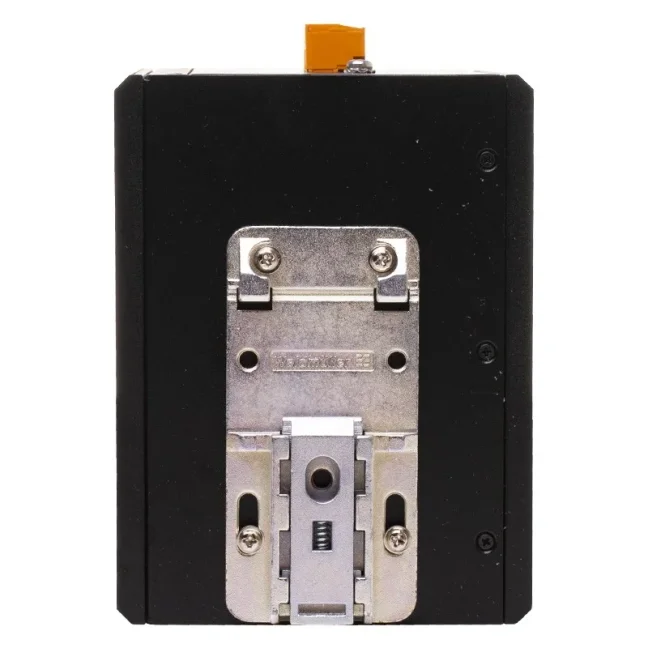

MountingDIN rail or panel; we will check panel accessories for your installation
Operating temperature-40 to +75 °C
Storage temperature-40 to +85 °C
Relative humidity5-95 %, non-condensing
Manufacturer warranty5 years

Communication and network functions

Configuration is available through web management, the console and the command line. SNMPv1/v2c/v3 enables monitoring from a network management system. Port mirroring provides a copy of selected port traffic for measurement; LLDP, Syslog and alarms complement network diagnostics.

The switch supports VLAN/PVLAN, GVRP, LACP port aggregation, IGMP snooping, QoS and ACL. HTTPS and SSH are available for management, together with IEEE 802.1X and RADIUS functions. Settings must match the installed firmware and the operational network rules.

Port configuration and replacement selection

Order code 16GE identifies sixteen gigabit copper ports. This version has no SFP slots and is not a PN variant. If PROFINET is required, select a documented variant with the PN suffix. For a replacement, compare the full order code, power supply, installation space and network configuration.

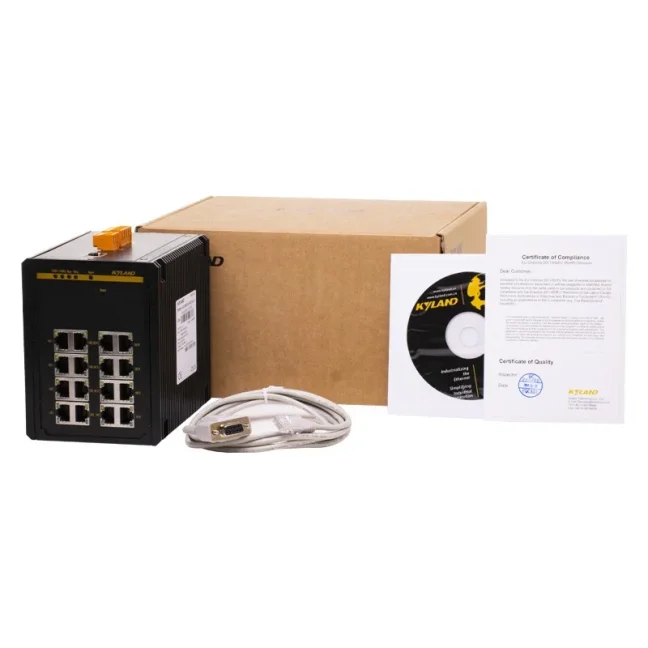

Scope of supply and accessories

The quotation covers the switch in the stated order configuration. We will confirm the exact scope of supply and required mounting accessories in our quotation. Select the power supply, network cables and console connection to suit the installation. Both offered versions have RJ45 ports only; SFP modules cannot be fitted.

Frequently asked questions

Can this switch replace another SICOM3000A configuration?

Check the full order number, port speed, power supply and dimensions. When changing the type or firmware, check the switch configuration and the associated project. A matching series name alone is not sufficient.

What power supply do I need?

This version has two redundant 24-48 VDC inputs, with a permissible range of 18-72 VDC. Check polarity and terminal wiring before connection.

Does this model have optical ports or SFP slots?

No. This order number identifies sixteen copper RJ45 ports. Optical versions in the series have different order codes.

How do I select firmware and configuration files?

Send the full order number, hardware revision and current firmware version. We will check the matching files. Back up the configuration and plan downtime before an update.

Can you help with switch selection and configuration?

Yes. Send the full order number, quantity and a brief network diagram. For advice on an existing installation, include the hardware revision and firmware version. We will discuss the suitable model, accessories and required settings.

Why buy from FOXON

Kyland distributor

We are a distributor of Kyland products. We supply new original products with a warranty.

Stock availability and delivery

We check current availability from our own and partner warehouses. Before you order, we confirm the price and possible delivery date for the specific model.

Product selection and technical advice

We help you choose the model, power supply and accessories to suit your connections and communication requirements.

Solution design and configuration

We discuss the connections and application requirements. Where needed, we propose a suitable setup and agree on the scope of assistance with configuration and commissioning.

More than 3,500customers
We supply tomore than 100 countries worldwide
Express delivery?We will check. Contact us now.

Order configuration and delivery

This product page is for order number SICOM3000A-16GE-L2-L2. We supply a new original product. We confirm the exact configuration, availability, warranty terms and delivery date in the quotation. A different port speed, power supply or PROFINET support cannot be determined from the series name alone.

Dimensional drawing

Dimensional drawing of the large SICOM3000A chassis, 102 × 135 × 137 mm
Large chassis, 102 × 135 × 137 mm. Dimensions are in mm; the drawing shows a different port layout within the series. This order configuration has 16 RJ45 ports without SFP.

Downloads

The manufacturer datasheet and manuals are in English. Check the mounting, wiring and operating requirements before installation.

Information for a technical consultation

Send the order number, required quantity and a description of the connected devices. We will agree on a suitable configuration and the scope of assistance with connection design and commissioning.

Product selection and technical consultation

Send the full order number, required quantity and a description of the connections. We help you select the model and accessories and confirm the price and availability.

Enquire about a product and consultation
Order numberSICOM3000A-16GE-L2-L2
Manufacturer / seriesKyland SICOM3000A
TypeLayer 2 managed industrial Ethernet switch
Ethernet ports16× RJ45 10/100/1000 Mbit/s; automatic MDI/MDI-X
Optical ports / SFPThis order configuration has no optical ports or SFP slots.
Power supply24-48 VDC; permissible range 18-72 VDC
Power inputsTwo redundant inputs; overload and reverse polarity protection
Power terminal block5 poles, 5.08 mm pitch
Maximum power consumption<20 W for the large SICOM3000A chassis
ManagementWeb, CLI, RS232 console; SNMPv1/v2c/v3
Console portRJ45, RS232; not an additional Ethernet port
DiagnosticsPort mirroring, RMON, Syslog, LLDP, loop detection, port and power alarms
VLANVLAN / PVLAN, GVRP; VLAN ID 1-4094
QoSIEEE 802.1p, DSCP; SP / WRR queues; ACL
Network redundancyDT-Ring, DT-Ring+, DT-VLAN, DRP/DHP, STP/RSTP/MSTP, G.8032 ERPS; MRP (MRM / MRC)
Network and management accessHTTPS/SSL, SSH, TACACS+, IEEE 802.1X, RADIUS, MAC address binding to ports
Industrial protocolsEtherNet/IP; Modbus/TCP
MAC address table8K
Packet buffer4 Mbit
Jumbo frames9.6 KB
Alarm contact3-pole terminal block, 5.08 mm pitch; max. 250 VAC / 220 VDC, max. 2 A
IndicatorsRun, Alarm, PWR1, PWR2, Ring; Link/ACT and port speed
Reset buttonRestart and restore the default configuration
Degree of protectionIP40
Chassis / coolingMetal chassis; natural convection, fanless
Dimensions (W × H × D)102 × 135 × 137 mm; excluding connectors, DIN rail and panel mounting parts
Device weight1.9 kg; large chassis
MountingDIN rail or panel; we will check panel accessories for your installation
Operating temperature-40 to +75 °C
Storage temperature-40 to +85 °C
Relative humidity5-95 %, non-condensing
Manufacturer warranty5 years

Accessories4
