eBOX-3250 Industrial computer NODKA

Powerful processor

Warranty 2 years (option up to 4 years)

Intel® Core™ i5-11500T, 16GB RAM DDR4, 256GB SSD, 3x GLAN, HDMI, 4x USB3.0, 2xUSB 2.0, 4x RS232/485, 12-24VDC, fanless, OS buy extra More

Manufacturer: NODKA Code: eBOX-3250-B-i511500T-16G-SSD256G

1 091,50 EUR excl. VAT (1 320,72 EUR incl. VAT)

Recycling fee 0,51 EUR v cene.

In stock

pcs

(1 pcs in stock)

Buy more for 230 EUR and get free delivery!

0 EUR230 EUR

Intel® Core™ i5-11500T, 16GB RAM DDR4, 256GB SSD, 3x GLAN, HDMI, 4x USB3.0, 2xUSB 2.0, 4x RS232/485, 12-24VDC, fanless, OS buy extra More

Manufacturer: NODKA Code: eBOX-3250-B-i511500T-16G-SSD256G

Scalable Fanless Industrial Computer with Intel® Core™ i5-11500T

Intel® Core™ i5-11500T
16GB RAM DDR (max 32GB)
3 x Realtek GbE LAN
4 x USB3.0，2 x USB2.0
4 x COM1-4 selectable to support RS232 or RS485 mode by the switch RS485 support auto flow control Optional additional 2x CAN bus or 2x RS232/485
1x HDMI interface
1×mSATA, 1×M.2 NVME SSD (Specifications 2280)
8 x DI photoelectric isolation wet contact, isolation class 2500Vrms
8 x DO, OC gate output, isolation class 2000Vrms
Power supply 12-24VDC with overcurrent, overvoltage and polarity inverse protection, Power supply is not included

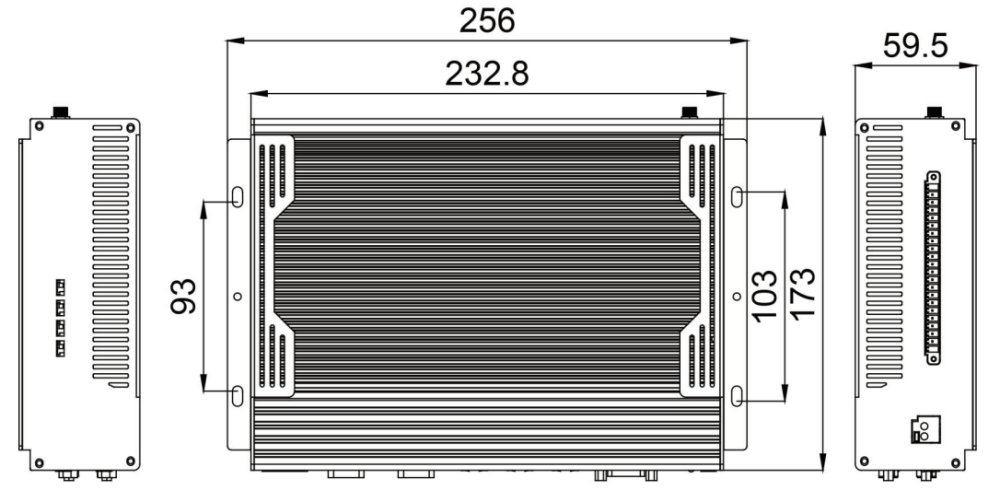

Dimensions (L)256mm x (W)173mm x (H)59.5mm
Wide operating temperature -20 ~ 60℃ supported
Ready for OS Windows 10, Windows 10 IoT Ent. LTSC, Windows 11, Linux Ubuntu

Extended warranty

The basic warranty provided is 2 years
Extended warranty +1 year for +10% of the price
Extended warranty +2 year for +20% of the price

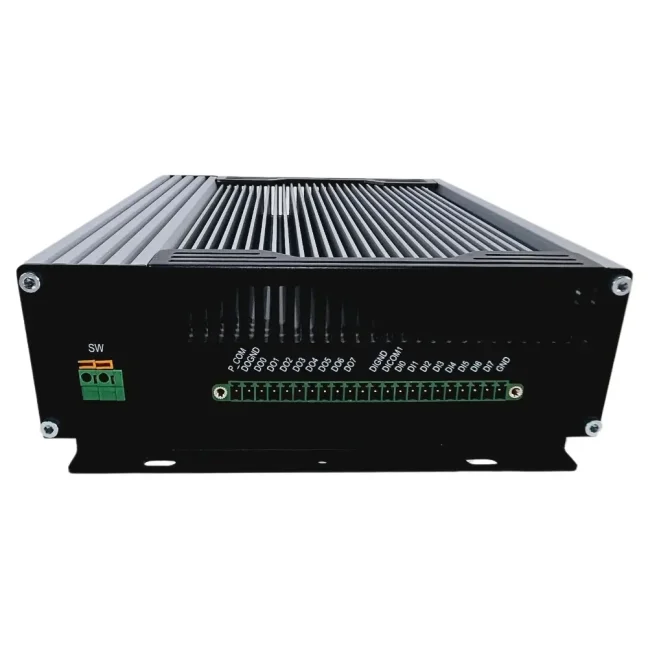

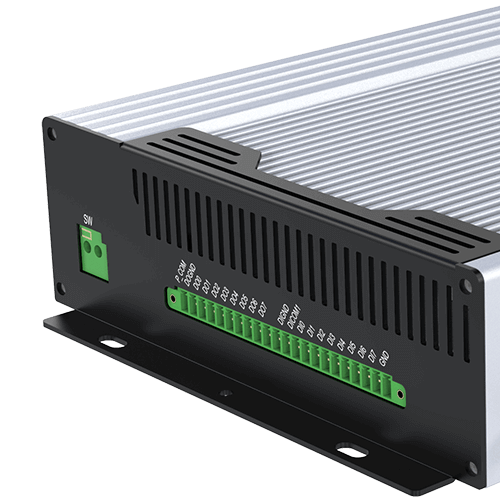

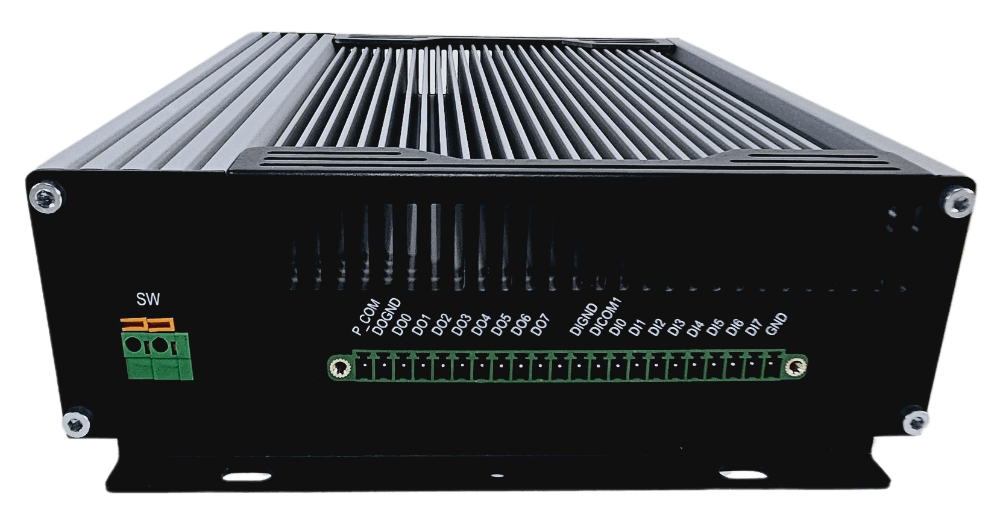

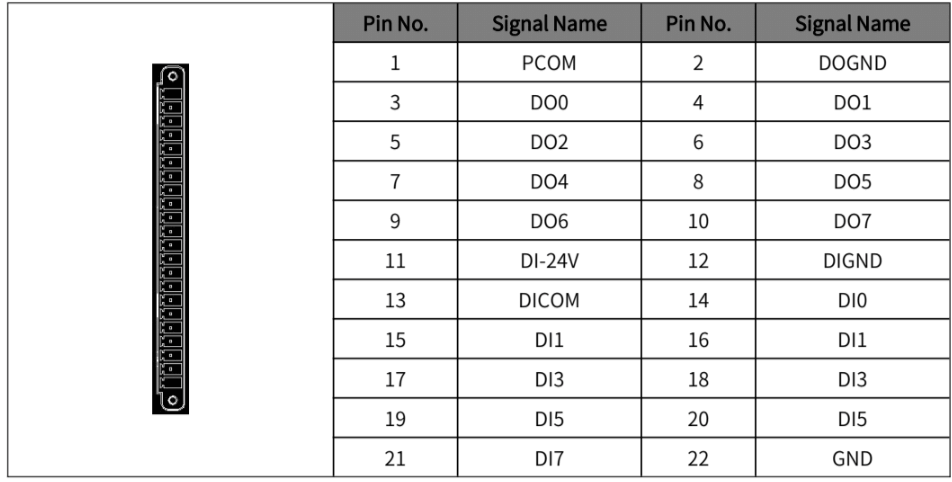

8x digital input and 8x digital output

On the side of the computer there is a socket with 8xDI inputs 24V and 8xDO outputs OC gate 24V 300mA. These digital inputs and outputs can be used and controlled through INtime, VxWorks, RTX, EC-Win and Linux environments. They are suitable for machine control and collecting digital signals from the machine.

Processor

CPU：Intel® Core™ i5-11500T
DIMM：2×DDR4L-2400MHz，MAX 32GB
Storage Medium：1×SATA,1×M.2 NVME SSD (2280)

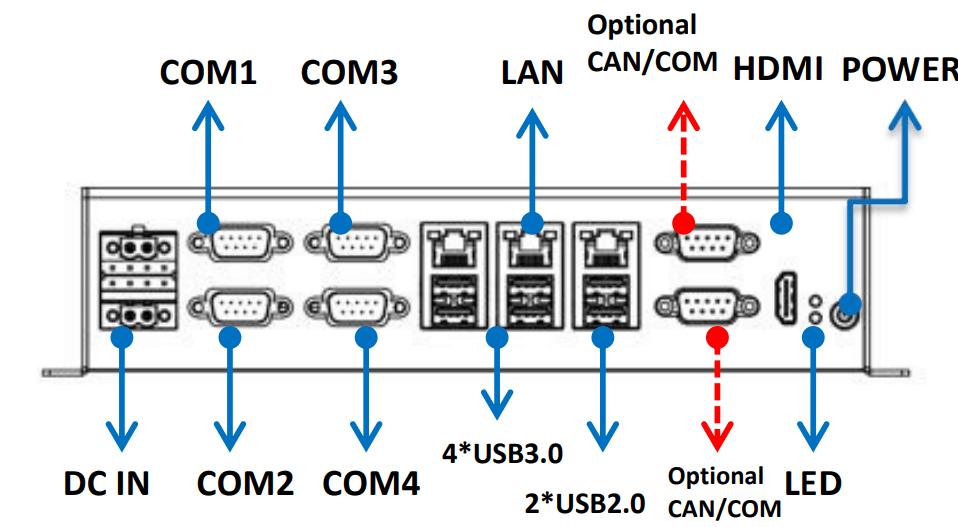

I/O Interface

LAN：3×10/100/1000Mbps Ethernet
USB：4×USB3.0, 2×USB2.0

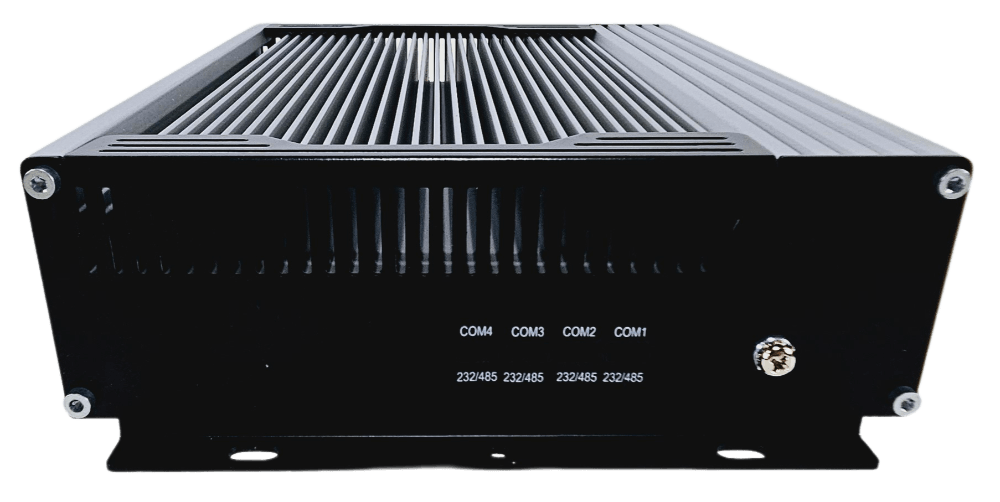

COM：4×COM1-4, selectable to support RS232 or RS485 mode by the switch, RS485 support auto flow control,2 x RS-232（COM5-6）

Display

HDMI：4096×2160@30Hz

Physical

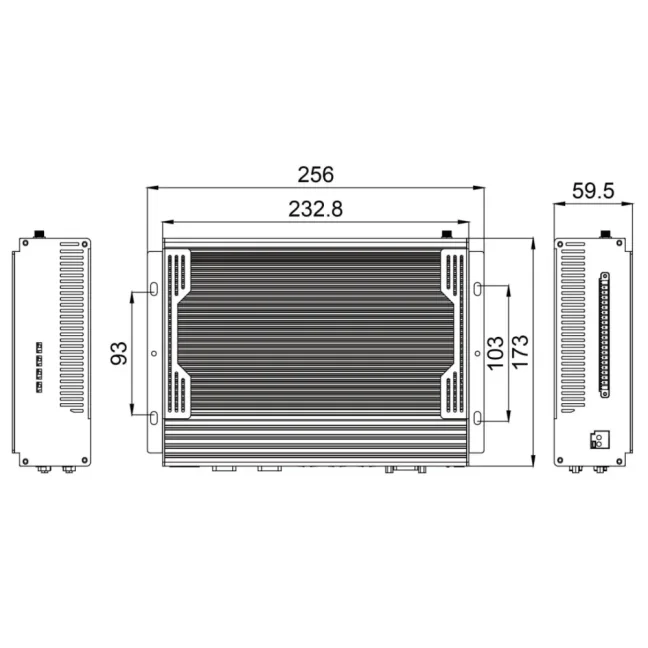

Dimensions：(L)256mm x (W)173mm x (H)59,5mm
Weight：2Kg
Box Structure：Aluminum-magnesium alloy box, Fanless

Mounting

Mount：Wall-mounted

Operating System

Microsoft Windows：Windows 10, Windows 10 IoT Enterprise LTSC, Windows 11
Linux：Ubuntu

Power

Input Voltage：DC12-24V ±10%, overcurrent, overvoltage and polarity inverse protection
Consumption：Typical:10-15W

Environment

Work temperature：-20ºC ~ 60ºC (-4℉~140℉) with air flow (mSATA), 5~95% (Non-condensing)
Storage Temperature：-40ºC ~ 80ºC (-40℉ ~ 176℉) with air flow (msATA), 5~95% (Non-condensing)
Vibration：5~500Hz, 1.5Grms@with SSD, Follow IEC60068-2-64
Shock：10G peak acceleration(11ms duration) with SSD, Follow IEC60068-2-27
EMC：CE/FCC Class B

Other

WatchDog：0~255 level programmable
