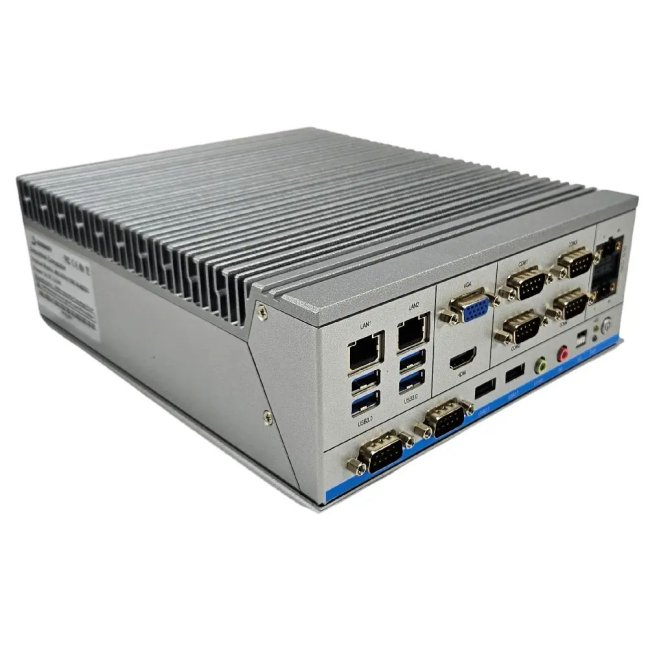

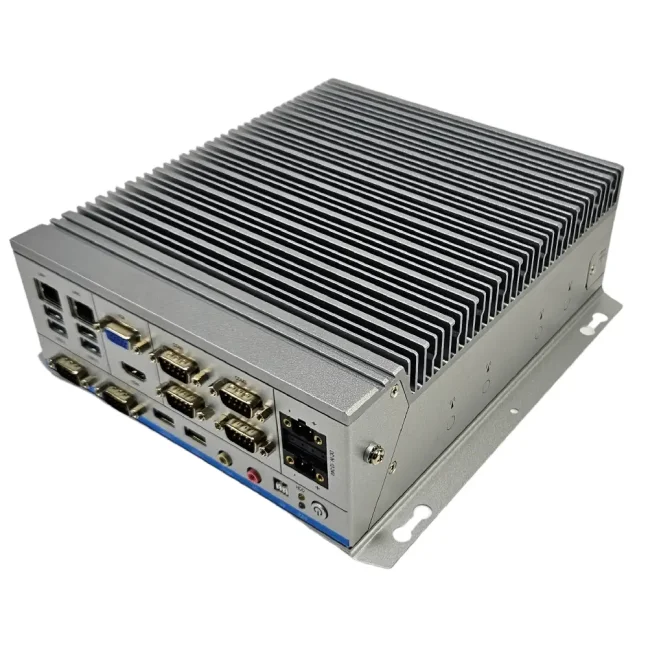

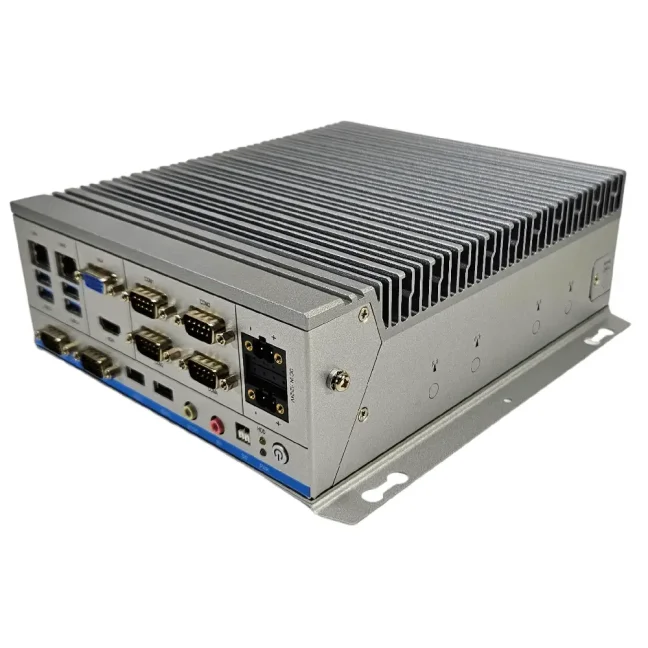

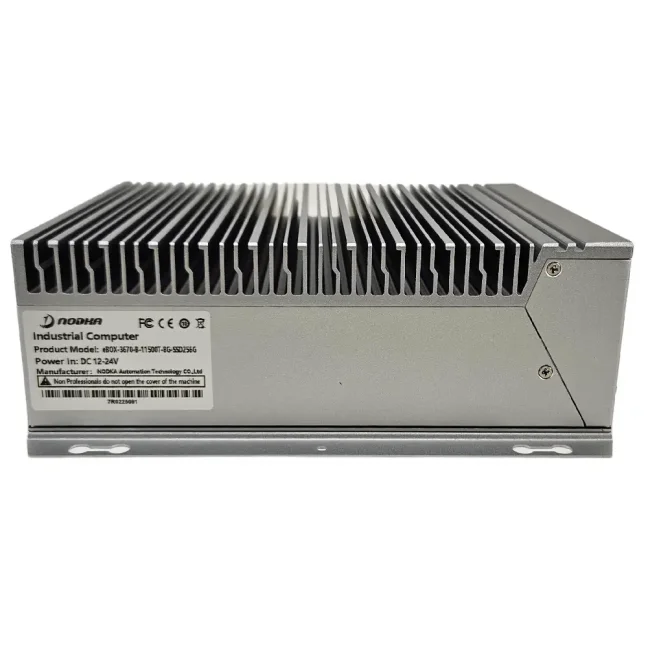

eBOX-3670-B industrial computer NODKA
eBOX-3670-B industrial computer NODKA
Intel® Core™ i5-11500T, 8GB DDR3 RAM, 256GB SSD, 2x GLAN, HDMI+ VGA, 6x USB, 2x RS232/RS485, 4x RS232, 2×miniPCle expansion slots, 12-24VDC, fanless, OS for extra charge More
Manufacturer: NODKA Code: eBOX-3670-B-i511500T-8G-SSD256G
- CPU Intel® Core™ Intel Core i5-11500T, LGA1200, Chipset H510
- 16GB RAM (max 32GB), DDR4-2400MHz
- 128GB SSD (larger drive available at extra cost)
- 2 x Intel GbE LAN controller
- 4 x USB3.0, 2x USB 2.0. 1x USB2.0 Type A on board for USB dongle
- 2 x RS232/RS485, 4xRS232, RS485 with auto data flow control support
- 1x VGA, 1x HDMI port
- 1×2.5" SATA,1×M.2 disk interface, support disk supports SATA
- 2 x miniPCIE expansion slot, support Wifi, 3G/4G modules
- DC12~24V power supply with over-current, over-voltage and over-polarity protection

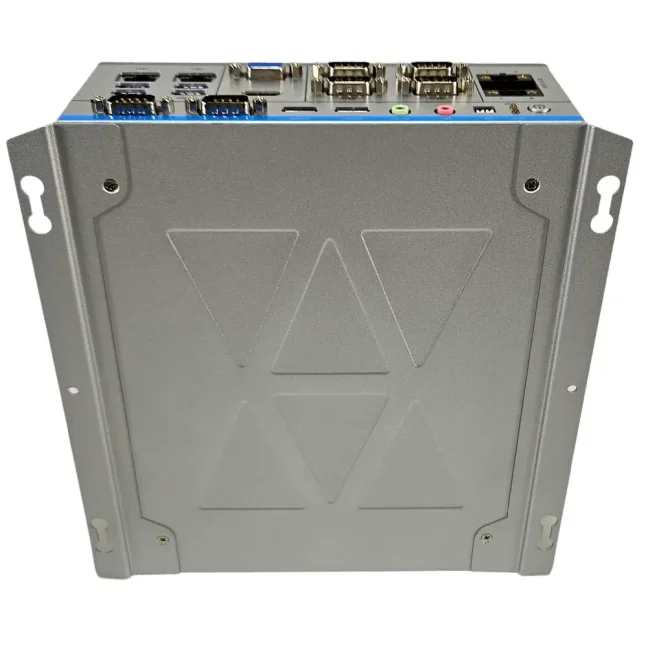

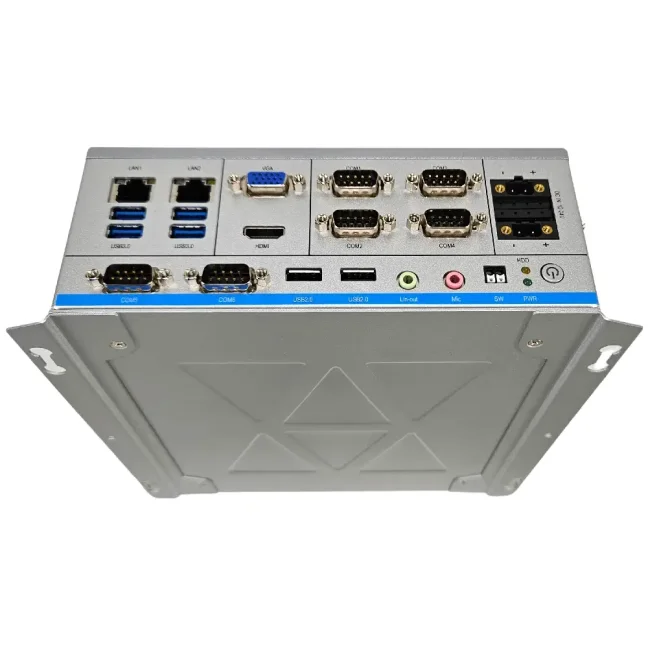

- Support wall or DIN rail mounting (DIN rail bracket is not included, must be purchased separately)
- Wide operating temperature -20~60℃ supported
- Ready for Windows 10, Windows 10 IoT Ent. LTSC, Windows 11, Linux Ubuntu
Extended warranty
- The basic warranty provided is 2 years
- Extended warranty +1 year for +10% of the price
- Extended warranty +2 year for +20% of the price
2×Full size miniPCe slot SIM card slot for WIFI/4G
1×M.2 Key-M Slot (SATA SDD, 2280)
1×2.5" SATA HDD bracket
Support Dual Display
1× VGA (max resolution 1920 × 1200@60Hz)
1× HDMI (max resolution 4096 × 2160@30Hz)
Processor
- CPU:Rocket Lake,(11 Gen)-Core-i5 Series,6 Core 12 threads,2.7GHz/4.6GHz,12MB,65W,DDR4-3200MHz, Quasi-system, L520 core module, support lntel the 10/11th generation LGA1200
- Chipset:H510
- Memory:2×DDR4-2400MHz, MAX 32GB
- Storage Medium:1×2.5" SATA, 1×M.2 Key-M Slot(SATA SSD, 2280)

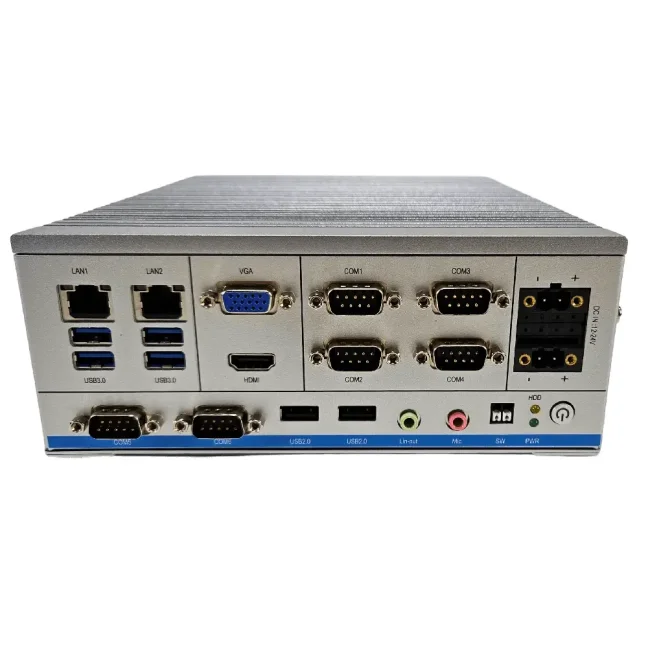

I/O Interface
- LAN:2×Realtek GbE LAN controller
- USB:4×USB3.0, 2×USB2.0
- COM:COM1~COM2:RS232/RS485, COM3~COM6: RS232
Display
- VGA:1920×1200@60Hz
- HDMI:4096×2160@30Hz
Physical

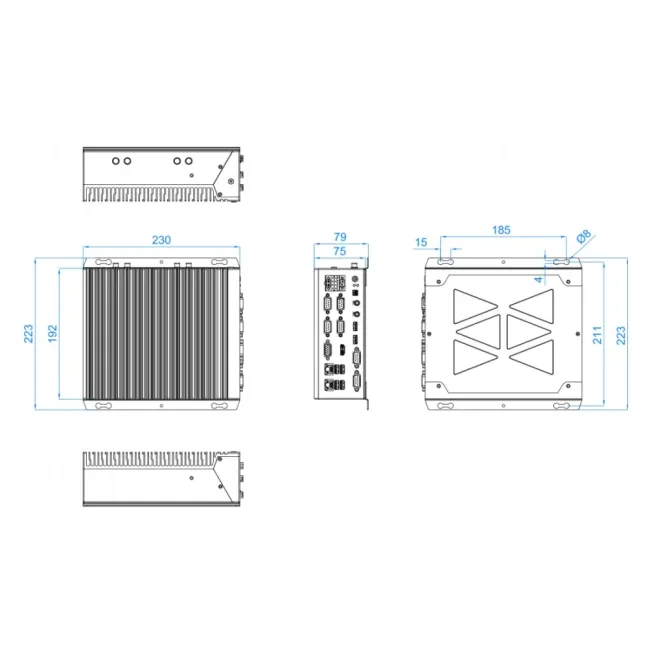

- Dimensions :(L)230mm x (W)192mm x (H)75mm
- Weight:3.6KG
- Box Structure:Aluminum-magnesium alloy BOX
- Cooling system:Fanless
Mounting
- Mount:Wall-mounted
Operating System
- Microsoft Windows:Windows 10, Windows 10 IoT Enterprise LTSC, Windows 11
- Linux:Ubuntu
Power
- Input Voltage:DC12-24V, overcurrent, overvoltage and reverse polarity protection
- Consumption:35W
Environment
- Work temperature:-20 ~ 60°C (-4℉~140℉) with air flow(mSATA)
- Storage Temperature:-40 ~ 80℃ (-40 ~ 176℉) with air flow(mSATA)
- Relative Humidity:5~95% (Non condensation)
- Vibration:Operating Random Vibration Test 5~500Hz, 1.5Grms@with SSD, follow IEC 60068-2-64
- Shock:Operating 20G peak acceleration (11ms duration), follow IEC 60068-2-27
- EMC:CE/FCC Class B
Other
- WatchDog:1~255 seconds programmable
Expansion Slot
- MiniPCIe:1×full size miniPCIe card solt with SIM card slot expandable WIFI/4G
