Kyland Aquam8620 / Aquam8120

Aquam8620 / Aquam8120 - switches with up to 20 M12 ports, Layer 3 / Layer 2, EN50155

Aquam8620 / Aquam8120 is a series of onboard switches with up to 16 Fast Ethernet ports and four gigabit M12 ports. Aquam86xx models support Layer 3; Aquam81xx models are Layer 2. PoE, bypass, NAT and ETBN depend on the specific configuration and are not included in every version.

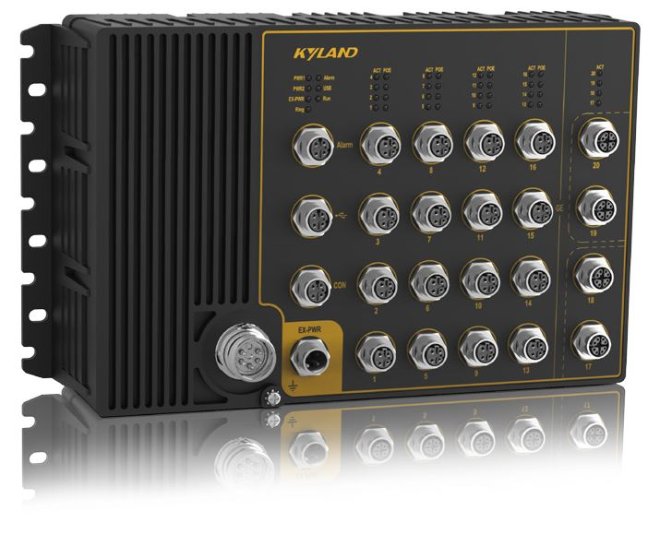

Kyland Aquam8620 / Aquam8120 - series photograph

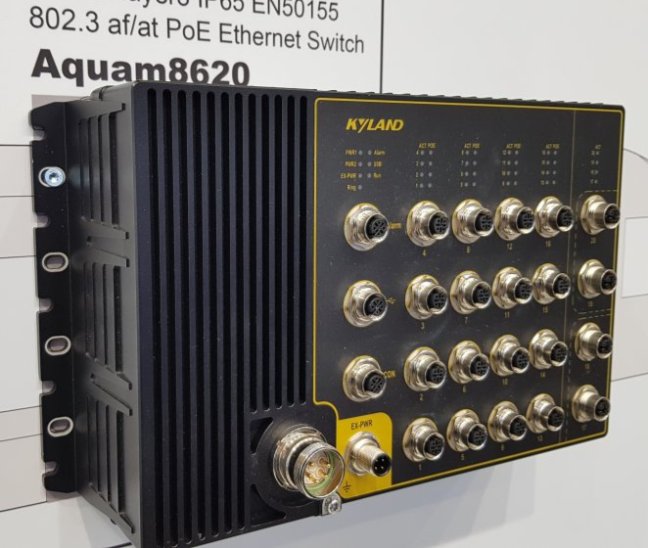

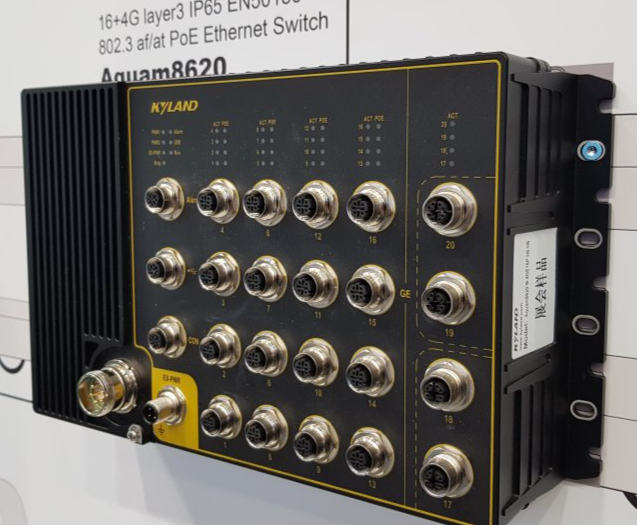

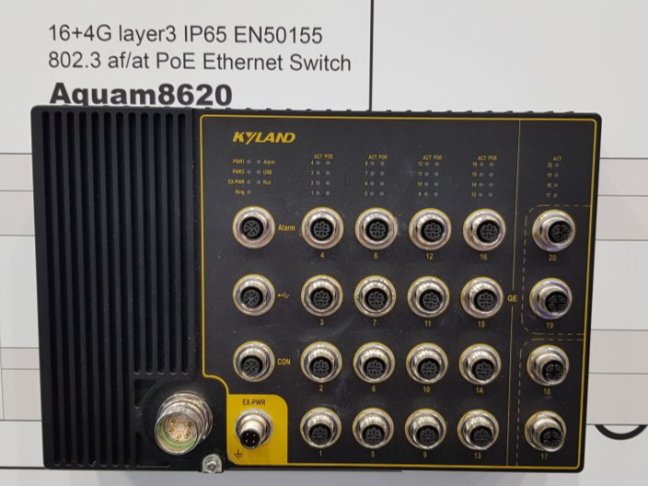

Illustrative series photograph. The actual ports and mechanical version depend on the confirmed configuration.

Need help selecting or ordering this switch?
Send us the required number and type of ports, power supply and quantity. We will recommend a suitable model and confirm availability.

Request a switch and accessories
Up to 20 M12 Ethernet ports
Aquam86xx Layer 3 / Aquam81xx Layer 2
IP65; optional PoE

Switch applications

Aquam switches serve Ethernet networks on rail vehicles, passenger information systems, CCTV systems and other industrial installations requiring resistance to shock and vibration. M12 connectors help ensure secure cabling connections.

Before selecting a device, check the required vehicle standards, power supply, port count and installation space. We will confirm compliance of the specific supplied variant and the available documents in our quotation.

Technical specifications

Version Configuration on request
Manufacturer / series Kyland Aquam8620 / Aquam8120
Type Managed switches: Aquam86xx Layer 3 / Aquam81xx Layer 2
Ethernet ports Up to 16× 10/100Base-T(X), M12 D + 4× 10/100/1000Base-T(X), M12 X
PoE Optional; IEEE 802.3af/at, up to 30 W per port, shared budget depends on the power supply
Power supply L2-L2: 24-48 VDC (16.8-60 VDC); H6-H6: 72-110 VDC (50.4-137.5 VDC)
Power inputs Two redundant inputs
Power connectors M23 for the switch; separate M12 for additional PoE power
Maximum power consumption <22 W at 110 VDC without PoE
Degree of protection IP65
Dimensions (W × H × D) 325 × 189 × 91.3 mm
Device weight 4.25 kg
Chassis / cooling Metal chassis; natural convection, fanless
Mounting Panel mounting
Operating temperature -40 to +70 °C
Storage temperature -40 to +85 °C
Relative humidity 5-95 %, non-condensing
MAC address table 32K
Packet buffer 32 Mbit
Railway applications EN50155, EN50121; IEC61373 for shock and vibration
Manufacturer warranty 5 years

Ports and network functions

Layer 3 models support static routing, OSPF, RIP and VRRP. Layer 2 models do not inherit these routing functions. The series offers VLAN, QoS, port mirroring, SNMP and diagnostics. Bypass requires variant B; NAT and TTDP/TTDB/TRDP functions are selected through the corresponding NAT/ETBN variant.

PoE and optional functions

The PoE/PoE+ version has a shared power budget of 80/120 W depending on the variant and power supply. An additional isolated 50-54 VDC supply allows the budget to be increased to up to 240 W. A limit of up to 30 W per port does not mean that all ports can be loaded to this value simultaneously.

If you require bypass, NAT or ETBN, state this in your enquiry. We will confirm the specific ports, supported functions and firmware for the selected order code.

Scope of supply and accessories

We will confirm the exact scope of supply in our quotation. Select power cables, M12/M23 connectors and mounting accessories for the specific device. The connector coding and contact count must match the relevant port.

Frequently asked questions

How do I select the exact configuration?

Send the full order number or a photograph of the nameplate, the required port count, power supply and any PoE requirement. For a replacement, we will also check the dimensions and network configuration.

Does every model in this series have PoE?

No. PoE is a feature of selected order configurations. The exact port and power supply code is decisive; the series name alone is not sufficient.

How do I select cables and connectors?

Check the M12 coding, contact count and wiring of every port. Ethernet, power and console connectors are not interchangeable.

Can FOXON help me select a switch?

Yes. Send us your requirements for ports, data rates, power supply and operating environment. We will recommend a suitable model and accessories and provide technical support.

Why order from FOXON?

We are a distributor of Kyland. We supply new industrial switches and help you select the right model for your network.

Selection for your network

We discuss the number and type of ports, data rates, power supply and operating conditions. We recommend a suitable switch and the accessories you need.

Availability and delivery date

We check the current availability of the required model and quantity. We confirm the delivery date before you place your order.

Supplies for individual machines and projects

We prepare quotations for a single switch or multiple units for machine builders and integrators. We agree on quantities and subsequent deliveries to suit your project.

Technical support

We advise on device connections, power supply and mounting. We discuss technical questions in the context of your specific model and network.

Kyland distributionNew industrial switches
Selection for your applicationSwitch and required accessories
Technical supportBefore purchase and during use

Available switch configurations

Order configuration Ethernet ports PoE Power supply
16T / 16P 16× 100 Mbit/s T: without PoE; P: PoE L2-L2 / H6-H6
4GE16T / 4GE16P 16× 100 Mbit/s + 4× 1 Gbit/s T: without PoE; P: PoE L2-L2 / H6-H6

The table lists series configurations, not confirmed stock availability of every variant. We will establish the full order number and check availability to match your requirements.
