Aquam8512A-9T-L13-L13 - Layer 3 managed switch, 9× 100 Mbit/s M12

Aquam8512A-9T-L13-L13 is a Layer 3 managed switch with nine 10/100 Mbit/s M12 ports. The 9T order configuration has no gigabit ports or PoE. The L13-L13 power supply variant provides two redundant 24 VDC inputs with a permissible range of 16.8-30 VDC.

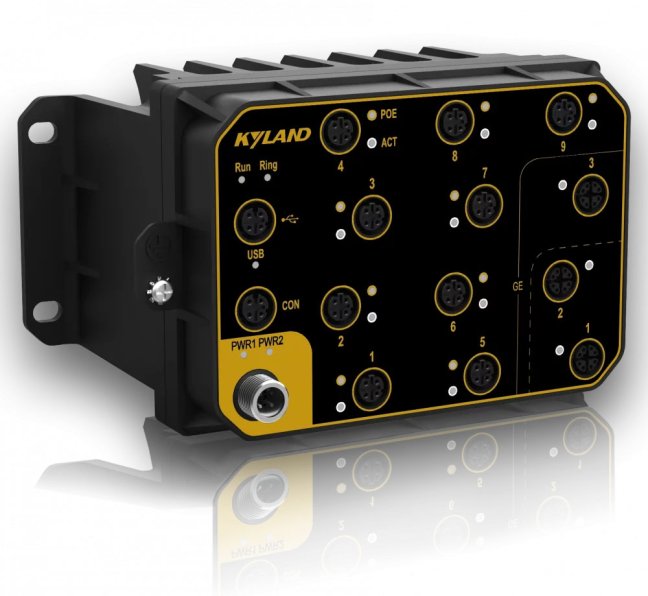

Kyland Aquam8512A - series photograph

The illustrative series photograph shows a different port configuration. The offered 9T variant has nine 100 Mbit/s ports without PoE.

Need help selecting or ordering this switch?
Send us the required number and type of ports, power supply and quantity. We will recommend a suitable model and confirm availability.

Request a switch and accessories
9 M12 ports, 10/100 Mbit/s
Layer 3; OSPF and static routing
24 VDC; two power inputs

Switch applications

Aquam switches serve Ethernet networks on rail vehicles, passenger information systems, CCTV systems and other industrial installations requiring resistance to shock and vibration. M12 connectors help ensure secure cabling connections.

Before selecting a device, check the required vehicle standards, power supply, port count and installation space. We will confirm compliance of the specific supplied variant and the available documents in our quotation.

Technical specifications

Order numberAquam8512A-9T-L13-L13
Manufacturer / seriesKyland Aquam8512A
TypeLayer 3 managed industrial Ethernet switch
Ethernet ports9× 10/100Base-T(X), M12 D
PoEWithout PoE
Power supplyL13-L13: 24 VDC (16.8-30 VDC)
Power inputsTwo redundant inputs
Maximum power consumption<16 W; without PoE
Degree of protectionWe will confirm the degree of protection of the specific version before you order.
Dimensions (W × H × D)Depends on the mechanical version; we will check the drawing before you order.
Device weight<2 kg
Chassis / coolingMetal chassis; natural convection, fanless
MountingPanel mounting
Operating temperature-40 to +75 °C
Storage temperature-40 to +85 °C
Relative humidity5-95 %, non-condensing
MAC address table16K
Packet buffer12 Mbit
Railway applicationsEN50155, EN50121; IEC61373 for shock and vibration
Manufacturer warranty5 years

Ports and network functions

The switch supports static routing, OSPF v2.0, VRRP and multicast functions. Management and diagnostics use web, CLI, an RS232 console via M12, SNMPv1/v2c/v3, port mirroring, Syslog and LLDP. Optional bypass on other series variants must not be attributed to this model without the corresponding order designation.

Scope of supply and accessories

We will confirm the exact scope of supply in our quotation. Select power cables, M12/M23 connectors and mounting accessories for the specific device. The connector coding and contact count must match the relevant port.

Frequently asked questions

How do I select the exact configuration?

Send the full order number or a photograph of the nameplate, the required port count, power supply and any PoE requirement. For a replacement, we will also check the dimensions and network configuration.

Does the 9T version have gigabit ports or PoE?

No. Code 9T identifies nine 10/100 Mbit/s ports without PoE. Gigabit or PoE variants have different order designations.

How do I select cables and connectors?

Check the M12 coding, contact count and wiring of every port. Ethernet, power and console connectors are not interchangeable.

Can FOXON help me select a switch?

Yes. Send us your requirements for ports, data rates, power supply and operating environment. We will recommend a suitable model and accessories and provide technical support.

Why order from FOXON?

We are a distributor of Kyland. We supply new industrial switches and help you select the right model for your network.

Selection for your network

We discuss the number and type of ports, data rates, power supply and operating conditions. We recommend a suitable switch and the accessories you need.

Availability and delivery date

We check the current availability of the required model and quantity. We confirm the delivery date before you place your order.

Supplies for individual machines and projects

We prepare quotations for a single switch or multiple units for machine builders and integrators. We agree on quantities and subsequent deliveries to suit your project.

Technical support

We advise on device connections, power supply and mounting. We discuss technical questions in the context of your specific model and network.

Kyland distributionNew industrial switches
Selection for your applicationSwitch and required accessories
Technical supportBefore purchase and during use

Available switch configurations

Order configurationEthernet portsPoEPower supply
Aquam8512A-9T-L13-L139× 10/100Base-T(X), M12 DWithout PoE24 VDC (16.8-30 VDC)

Dimensional drawings

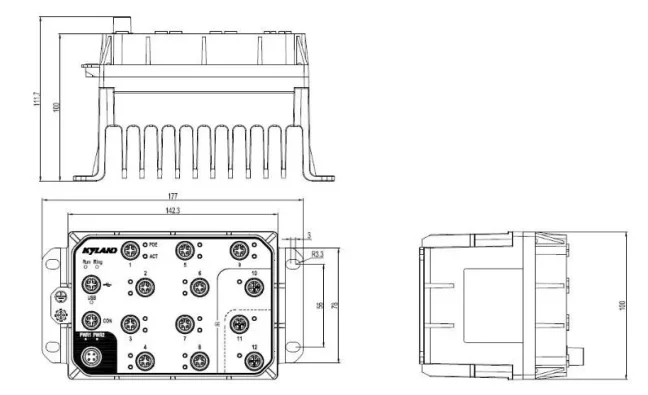

Aquam8512A - Mechanical version with cooling fins
Aquam8512A - Mechanical version with cooling fins. Dimensions are in mm; the ports shown are illustrative. Check the exact mechanical version of the supplied device before mounting.
Aquam8512A - Mechanical version without cooling fins
Aquam8512A - Mechanical version without cooling fins. Dimensions are in mm; the ports shown are illustrative. Check the exact mechanical version of the supplied device before mounting.

Downloads

The manufacturer datasheet and manuals are in English. Check the mounting, wiring and operating requirements before installation.

For the 2016 installation manual, check compatibility with the hardware revision of the supplied device.
