SIEMENS 6XV1840-2AU10 - PROFINET Type A cable for permanent installation

SIEMENS 6XV1840-2AU10 - PROFINET Type A cable for permanent installation


SIEMENS

SIEMENS 6XV1840-2AU10 - shielded PROFINET Type A cable, CAT 5e, 4-core, PVC, FastConnect. For permanent installation. Sold by the metre; minimum order quantity from FOXON is 10 m. More

Code: 6XV1840-2AU10

2 EUR excl. VAT (2,42 EUR Incl. VAT)
In stock
m
(1295 m In stock)

Rezervace termínu

Get a quote
SIEMENS

SIEMENS 6XV1840-2AU10 - shielded PROFINET Type A cable, CAT 5e, 4-core, PVC, FastConnect. For permanent installation. Sold by the metre; minimum order quantity from FOXON is 10 m. More

Code: 6XV1840-2AU10

SIEMENS6XV1840-2AU10
SIEMENS 6XV1840-2AU10 - PROFINET cable

IE FC TP Standard Cable GP 2x2 (Type A)

PROFINET and Industrial Ethernet cabling

PROFINET Type A cable for permanent installation

2×2 · CAT 5e · FastConnect · green PVC sheath

The SIEMENS 6XV1840-2AU10 IE FC TP Standard Cable GP 2x2 (Type A) is a shielded cable for PROFINET and Industrial Ethernet. It has 4 data conductors, a green PVC sheath and a FastConnect design for quick termination. The Type A version is designed for permanent installation.

6XV1840-2AU10CAT 5e · FastConnect

Send the required length, device type and cable installation method. We will check the suitable version.

Type APermanent installation
4 wiresCAT 5e · SF/UTP
PVC · FastConnectDouble shielding
From 10 mSold by the metre
Practical application

Use during the installation and maintenance of the network

Type A cable is designed for fixed industrial installations. It is used for stationary connections between equipment and switchboards. For machine parts that move repeatedly, select the appropriate flexible or trailing version based on the actual stresses involved.

How to place an order

Sold by the metre, in lengths of 10 metres or more

We sell the cable by the metre, cut from a reel. The minimum order quantity at FOXON is 10 m. Enter the required length in metres in the Quantity field, for example 25 for a length of 25 m. We will confirm the exact length, availability and delivery method before ordering.

The Siemens order number refers to a version with a production length of 1,000 m. FOXON dispenses the cable by the metre; the quantity listed in the online shop is expressed in metres.

Materials

Cable construction and shielding

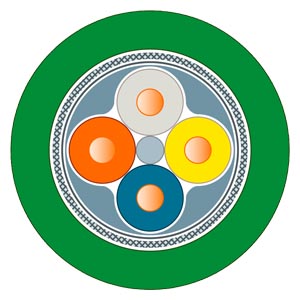

The PE-insulated data conductors are arranged in a twisted quad configuration. They are protected by aluminium foil and a tinned copper braid. Both the inner and outer sheaths are made of PVC. The conductors are coloured white, yellow, blue and orange. The double shielding requires correct connection at the connector.

SIEMENS 6XV1840-2AU10 - PROFINET cable - detail 2
SIEMENS 6XV1840-2AU10 - product details
Installation proposal

Bend radius and operating conditions

The minimum bend radius is 19.5 mm for a single bend and 49 mm for repeated bending. The operating temperature range is -40 to +75 °C; during installation, it is -40 to +60 °C. The maximum tensile force is 150 N.

The PVC sheath is not halogen-free. The cable is UV-resistant; resistance to mineral oils is defined by the IEC 60811-2-1 test, 4 hours at 70 °C. Resistance to water and grease is limited.

FastConnect

Preparation and assembly of connectors

The FastConnect design simplifies the preparation of the sheath and screening. The connector must match the cross-section and type of the conductors, as well as the cable diameter. The 6GK1901-1GA00 tool is designed for preparing Siemens IE FastConnect cables; select the correct cartridge and cut length according to the specific connector.

Route the cable in accordance with the specified bending radius and clearance from power lines. Ensure strain relief, proper shielding contact and protection against damage. After installation, check the wiring connections and the quality of the completed transmission route.

PROFINET network

Connection length and transmission

The specified cable length for 100BASE-TX is 100 m. The complete link must meet the requirements for cables, connectors and transmission performance. A 1000 m reel does not mean a single Ethernet link can be that long.

The cable connects the device ports within the network. It does not convert protocols and is not a substitute for an industrial switch. PROFINET is different from PROFIBUS DP; do not connect terminating resistors designed for PROFIBUS to its data path.

SIEMENS / IE FC TP Standard Cable GP 2x2 (Type A)

Technical specifications for the 6XV1840-2AU10

ManufacturerSIEMENS
Order number6XV1840-2AU10
Model designationIE FC TP Standard Cable GP 2x2 (Type A)
PROFINET typeA
UsesPermanent installation
CategoryCAT 5e
Number of data conductors4
ShieldingSF/UTP, aluminium foil and tinned copper braid
Inner / outer sheathPVC / PVC
Sheath colourGreen
FastConnectYes
Conductor constructionSolid conductors
Inner conductor diameter0,64 mm
Outer diameter of the cable6.5 mm ±0.2 mm
Nominal impedance100 Ω ±15 % at 1-100 MHz
Loop resistance, maximum115 mΩ/m
Attenuation at 100 MHz, maximum19.5 dB / 100 m
Cable length for 100BASE-TX100 m
PoE / PoE+Yes / yes
Minimum bend radius19.5 mm for a single bend; 49 mm for repeated bending
Operating temperature-40 to +75 °C
Temperature during installation-40 to +60 °C
Maximum tensile force150 N
Mass per unit length61 kg/km
Sales unitMetre
FOXON minimum order quantity10 m
ConnectorsThey are not fitted
Delivery

Contents of the delivery

Cable of the required and confirmed length, cut to order. Connectors and stripping tools are not included with the cable.

Practical questions

Selection and correct use

Is this cable suitable for a drag chain?

Type A cable is designed for fixed industrial installations. It is used for stationary connections between equipment and switchboards. For machine parts that move repeatedly, select the appropriate flexible or trailing version based on the actual stresses involved.

How do I order the required length?

We sell the cable by the metre, cut from a reel. The minimum order quantity at FOXON is 10 m. Enter the required length in metres in the Quantity field, for example 25 for a length of 25 m. We will confirm the exact length, availability and delivery method before ordering.

Is the sheath PVC or PUR?

The PVC sheath is not halogen-free. The cable is UV-resistant; resistance to mineral oils is defined by the IEC 60811-2-1 test, 4 hours at 70 °C. Resistance to water and grease is limited.

What bending radius should be used?

The minimum bend radius is 19.5 mm for a single bend and 49 mm for repeated bending. The operating temperature range is -40 to +75 °C; during installation, it is -40 to +60 °C. The maximum tensile force is 150 N.

Can the FastConnect tool be used?

The FastConnect design simplifies the preparation of the sheath and screening. The connector must match the cross-section and type of the conductors, as well as the cable diameter. The 6GK1901-1GA00 tool is designed for preparing Siemens IE FastConnect cables; select the correct cartridge and cut length according to the specific connector.

PROFINET Technical Support

Why order from FOXON

We can help you select the cabling and accessories to suit your specific PROFINET installation. Please send us a routing diagram, a list of devices and a description of the environment.

Selection for a specific route

We will review the cable routing, movement, temperature and requirements of the installation.

Cable and connectors

We will check the compatibility of the conductors, the shielding, the dimensions and the method of installation.

Preparing the cabling

We’ll help you choose the right tool and procedure for your specific connector.

PROFINET Diagnostics

We can help with cable testing and identifying the causes of communication failures.

Czech technical support

We will discuss the topology, environment and cable replacement procedure with regard to the machine operating conditions.

Delivery Confirmation

Before placing an order, we will confirm the specifications, quantity and delivery date.

Correct cablingCable routing, movement and construction
Fitting connectorsCable preparation and shield connection
Network measurementCabling and communication quality
Documentation

Technical data sheets and installation documentation

In the ‘Downloads’ tab, you will find the latest technical data sheets in EN, DE and ES, the PROFINET passive components installation guide and the Siemens cabling selection guide.

Open downloads
SIEMENS

Technical specifications of the 6XV1840-2AU10

IE FC TP Standard Cable GP 2x2 (Type A)

Identification and design

ManufacturerSIEMENS
Order number6XV1840-2AU10
Model designationIE FC TP Standard Cable GP 2x2 (Type A)
PROFINET typeA
UsesPermanent installation
CategoryCAT 5e
Number of data conductors4
ShieldingSF/UTP, aluminium foil and tinned copper braid
Inner / outer sheathPVC / PVC
Sheath colourGreen
FastConnectYes

Electrical and operational parameters

Conductor constructionSolid conductors
Inner conductor diameter0,64 mm
Outer diameter of the cable6.5 mm ±0.2 mm
Nominal impedance100 Ω ±15 % at 1-100 MHz
Loop resistance, maximum115 mΩ/m
Attenuation at 100 MHz, maximum19.5 dB / 100 m
Cable length for 100BASE-TX100 m
PoE / PoE+Yes / yes
Minimum bend radius19.5 mm for a single bend; 49 mm for repeated bending
Operating temperature-40 to +75 °C
Temperature during installation-40 to +60 °C
Maximum tensile force150 N
Mass per unit length61 kg/km

Delivery

Sales unitMetre
FOXON minimum order quantity10 m
ConnectorsThey are not fitted
Connection

Compatibility and installation

The FastConnect design simplifies the preparation of the sheath and screening. The connector must match the cross-section and type of the conductors, as well as the cable diameter. The 6GK1901-1GA00 tool is designed for preparing Siemens IE FastConnect cables; select the correct cartridge and cut length according to the specific connector.

Route the cable in accordance with the specified bending radius and clearance from power lines. Ensure strain relief, proper shielding contact and protection against damage. After installation, check the wiring connections and the quality of the completed transmission route.

Installation proposal

Use and delivery

The minimum bend radius is 19.5 mm for a single bend and 49 mm for repeated bending. The operating temperature range is -40 to +75 °C; during installation, it is -40 to +60 °C. The maximum tensile force is 150 N.

We sell the cable by the metre, cut from a reel. The minimum order quantity at FOXON is 10 m. Enter the required length in metres in the Quantity field, for example 25 for a length of 25 m. We will confirm the exact length, availability and delivery method before ordering.

FAQ - 6XV1840-2AU10

Choosing the right model

Is this cable suitable for a drag chain?

Type A cable is designed for fixed industrial installations. It is used for stationary connections between equipment and switchboards. For machine parts that move repeatedly, select the appropriate flexible or trailing version based on the actual stresses involved.

How do I order the required length?

We sell the cable by the metre, cut from a reel. The minimum order quantity at FOXON is 10 m. Enter the required length in metres in the Quantity field, for example 25 for a length of 25 m. We will confirm the exact length, availability and delivery method before ordering.

Is the sheath PVC or PUR?

The PVC sheath is not halogen-free. The cable is UV-resistant; resistance to mineral oils is defined by the IEC 60811-2-1 test, 4 hours at 70 °C. Resistance to water and grease is limited.

Installation

Installation and use

What bending radius should be used?

The minimum bend radius is 19.5 mm for a single bend and 49 mm for repeated bending. The operating temperature range is -40 to +75 °C; during installation, it is -40 to +60 °C. The maximum tensile force is 150 N.

Can the FastConnect tool be used?

The FastConnect design simplifies the preparation of the sheath and screening. The connector must match the cross-section and type of the conductors, as well as the cable diameter. The 6GK1901-1GA00 tool is designed for preparing Siemens IE FastConnect cables; select the correct cartridge and cut length according to the specific connector.

How long can a connection be designed to be?

The specified cable length for 100BASE-TX is 100 m. The complete link must meet the requirements for cables, connectors and transmission performance. A 1000 m reel does not mean a single Ethernet link can be that long.

Is the cable suitable for Gigabit Ethernet?

This is a cable with 4 data conductors. For standard 1000BASE-T Gigabit Ethernet, select a suitable cable with 4 pairs and compatible connectors. The CAT 5e designation alone does not mean that this 4-wire design is suitable for Gigabit transmission.

Maintenance

Operations and technical consultancy

Are the connectors included in the delivery?

No. We supply cable sold by the metre, without any connectors fitted. Please select a connector based on the specific conductors, the cable diameter, the method of installation and the space available around the port.

Is it necessary to connect PROFIBUS terminating resistors?

The cable connects the device ports within the network. It does not convert protocols and is not a substitute for an industrial switch. PROFINET is different from PROFIBUS DP; do not connect terminating resistors designed for PROFIBUS to its data path.

Will the new cable ensure the entire network runs smoothly?

Reliability also depends on the connectors, shielding, topology, power supply and device configuration. After replacement, we recommend testing the transmission path and verifying communication whilst the system is in operation.
