IE FC TP Flexible Cable GP 2x2 (Type B)

PROFINET and Industrial Ethernet cabling

Flexible PROFINET Type B cable

2×2 · CAT 5e · FastConnect · green PVC sheath

The SIEMENS 6XV1870-2B IE FC TP Flexible Cable GP 2x2 (Type B) is a shielded cable for PROFINET and Industrial Ethernet. It has 4 data conductors, a green PVC sheath and a FastConnect design for quick termination. The flexible Type B version is designed for occasional movement.

6XV1870-2BCAT 5e · FastConnect

Send the required length, device type and cable installation method. We will check the suitable version.

Type BOccasional movement
4 wiresCAT 5e · SF/UTP
PVC · FastConnectDouble shielding
From 10 mSold by the metre
Practical application

Use during the installation and maintenance of the network

Type B cable is designed for moving parts subject to intermittent movement. For continuous cyclic movement, energy chains or torsion, select a cable specifically approved for the relevant operating conditions. Flexible conductors do not, in themselves, guarantee a service life under continuous bending.

How to place an order

Sold by the metre, in lengths of 10 metres or more

We sell the cable by the metre, cut from a reel. The minimum order quantity at FOXON is 10 m. Enter the required length in metres in the Quantity field, for example 25 for a length of 25 m. We will confirm the exact length, availability and delivery method before ordering.

The manufacturer specifies a minimum of 20 m for direct orders of this version. FOXON sells the cable by the metre, starting from 10 m; we will confirm the exact length before ordering.

Materials

Cable construction and shielding

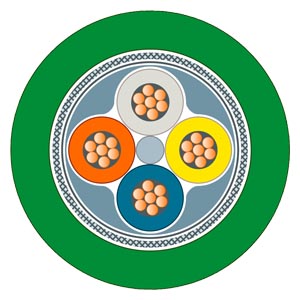

The PE-insulated data conductors are arranged in a twisted quad configuration. They are protected by aluminium foil and a tinned copper braid. Both the inner and outer sheaths are made of PVC. The conductors are coloured white, yellow, blue and orange. The double shielding requires correct connection at the connector.

SIEMENS 6XV1870-2B - PROFINET cable - detail 2
SIEMENS 6XV1870-2B - product details
Installation proposal

Bend radius and operating conditions

The minimum bend radius is 32.5 mm for a single bend and 52 mm for repeated bending. The operating temperature range is -25 to +75 °C; during installation, it is -10 to +60 °C. The maximum tensile force is 150 N.

The PVC sheath is not halogen-free. The cable is UV-resistant; resistance to mineral oils is defined by the IEC 60811-404 test, 7×24 hours at 90 °C. Resistance to water and grease is limited.

FastConnect

Preparation and assembly of connectors

The FastConnect design simplifies the preparation of the sheath and screening. The connector must match the cross-section and type of the conductors, as well as the cable diameter. The 6GK1901-1GA00 tool is designed for preparing Siemens IE FastConnect cables; select the correct cartridge and cut length according to the specific connector.

Route the cable in accordance with the specified bending radius and clearance from power lines. Ensure strain relief, proper shielding contact and protection against damage. After installation, check the wiring connections and the quality of the completed transmission route.

PROFINET network

Connection length and transmission

The specified cable length for 100BASE-TX is 85 m. Allow for connectors, additional cables and attenuation along the complete link. Do not automatically apply the 100 m limit of the fixed-installation Type A cable.

The cable connects the device ports within the network. It does not convert protocols and is not a substitute for an industrial switch. PROFINET is different from PROFIBUS DP; do not connect terminating resistors designed for PROFIBUS to its data path.

SIEMENS / IE FC TP Flexible Cable GP 2x2 (Type B)

Technical specifications for the 6XV1870-2B

ManufacturerSIEMENS
Order number6XV1870-2B
Model designationIE FC TP Flexible Cable GP 2x2 (Type B)
PROFINET typeB
UsesOccasional movement
CategoryCAT 5e
Number of data conductors4
ShieldingSF/UTP, aluminium foil and tinned copper braid
Inner / outer sheathPVC / PVC
Sheath colourGreen
FastConnectYes
Conductor constructionFlexible
Inner conductor diameter0,75 mm
Outer diameter of the cable6.5 mm ±0.2 mm
Nominal impedance100 Ω ±5 % at 1-100 MHz
Loop resistance, maximum120 mΩ/m
Attenuation at 100 MHz, maximum21 dB / 100 m
Cable length for 100BASE-TX85 m
PoE / PoE+Yes / yes
Minimum bend radius32.5 mm for a single bend; 52 mm for repeated bending
Operating temperature-25 to +75 °C
Temperature during installation-10 to +60 °C
Maximum tensile force150 N
Mass per unit length68 kg/km
Sales unitMetre
FOXON minimum order quantity10 m
ConnectorsThey are not fitted
Delivery

Contents of the delivery

Cable of the required and confirmed length, cut to order. Connectors and stripping tools are not included with the cable.

Practical questions

Selection and correct use

Is this cable suitable for a drag chain?

Type B cable is designed for moving parts subject to intermittent movement. For continuous cyclic movement, energy chains or torsion, select a cable specifically approved for the relevant operating conditions. Flexible conductors do not, in themselves, guarantee a service life under continuous bending.

How do I order the required length?

We sell the cable by the metre, cut from a reel. The minimum order quantity at FOXON is 10 m. Enter the required length in metres in the Quantity field, for example 25 for a length of 25 m. We will confirm the exact length, availability and delivery method before ordering.

Is the sheath PVC or PUR?

The PVC sheath is not halogen-free. The cable is UV-resistant; resistance to mineral oils is defined by the IEC 60811-404 test, 7×24 hours at 90 °C. Resistance to water and grease is limited.

What bending radius should be used?

The minimum bend radius is 32.5 mm for a single bend and 52 mm for repeated bending. The operating temperature range is -25 to +75 °C; during installation, it is -10 to +60 °C. The maximum tensile force is 150 N.

Can the FastConnect tool be used?

The FastConnect design simplifies the preparation of the sheath and screening. The connector must match the cross-section and type of the conductors, as well as the cable diameter. The 6GK1901-1GA00 tool is designed for preparing Siemens IE FastConnect cables; select the correct cartridge and cut length according to the specific connector.

PROFINET Technical Support

Why order from FOXON

We can help you select the cabling and accessories to suit your specific PROFINET installation. Please send us a routing diagram, a list of devices and a description of the environment.

Selection for a specific route

We will review the cable routing, movement, temperature and requirements of the installation.

Cable and connectors

We will check the compatibility of the conductors, the shielding, the dimensions and the method of installation.

Preparing the cabling

We’ll help you choose the right tool and procedure for your specific connector.

PROFINET Diagnostics

We can help with cable testing and identifying the causes of communication failures.

Czech technical support

We will discuss the topology, environment and cable replacement procedure with regard to the machine operating conditions.

Delivery Confirmation

Before placing an order, we will confirm the specifications, quantity and delivery date.

Correct cablingCable routing, movement and construction
Fitting connectorsCable preparation and shield connection
Network measurementCabling and communication quality
Documentation

Technical data sheets and installation documentation

In the ‘Downloads’ tab, you will find the latest technical data sheets in EN, DE and ES, the PROFINET passive components installation guide and the Siemens cabling selection guide.

Open downloads
SIEMENS

Technical specifications of the 6XV1870-2B

IE FC TP Flexible Cable GP 2x2 (Type B)

Identification and design

ManufacturerSIEMENS
Order number6XV1870-2B
Model designationIE FC TP Flexible Cable GP 2x2 (Type B)
PROFINET typeB
UsesOccasional movement
CategoryCAT 5e
Number of data conductors4
ShieldingSF/UTP, aluminium foil and tinned copper braid
Inner / outer sheathPVC / PVC
Sheath colourGreen
FastConnectYes

Electrical and operational parameters

Conductor constructionFlexible
Inner conductor diameter0,75 mm
Outer diameter of the cable6.5 mm ±0.2 mm
Nominal impedance100 Ω ±5 % at 1-100 MHz
Loop resistance, maximum120 mΩ/m
Attenuation at 100 MHz, maximum21 dB / 100 m
Cable length for 100BASE-TX85 m
PoE / PoE+Yes / yes
Minimum bend radius32.5 mm for a single bend; 52 mm for repeated bending
Operating temperature-25 to +75 °C
Temperature during installation-10 to +60 °C
Maximum tensile force150 N
Mass per unit length68 kg/km

Delivery

Sales unitMetre
FOXON minimum order quantity10 m
ConnectorsThey are not fitted
Connection

Compatibility and installation

The FastConnect design simplifies the preparation of the sheath and screening. The connector must match the cross-section and type of the conductors, as well as the cable diameter. The 6GK1901-1GA00 tool is designed for preparing Siemens IE FastConnect cables; select the correct cartridge and cut length according to the specific connector.

Route the cable in accordance with the specified bending radius and clearance from power lines. Ensure strain relief, proper shielding contact and protection against damage. After installation, check the wiring connections and the quality of the completed transmission route.

Installation proposal

Use and delivery

The minimum bend radius is 32.5 mm for a single bend and 52 mm for repeated bending. The operating temperature range is -25 to +75 °C; during installation, it is -10 to +60 °C. The maximum tensile force is 150 N.

We sell the cable by the metre, cut from a reel. The minimum order quantity at FOXON is 10 m. Enter the required length in metres in the Quantity field, for example 25 for a length of 25 m. We will confirm the exact length, availability and delivery method before ordering.

FAQ - 6XV1870-2B

Choosing the right model

Is this cable suitable for a drag chain?

Type B cable is designed for moving parts subject to intermittent movement. For continuous cyclic movement, energy chains or torsion, select a cable specifically approved for the relevant operating conditions. Flexible conductors do not, in themselves, guarantee a service life under continuous bending.

How do I order the required length?

We sell the cable by the metre, cut from a reel. The minimum order quantity at FOXON is 10 m. Enter the required length in metres in the Quantity field, for example 25 for a length of 25 m. We will confirm the exact length, availability and delivery method before ordering.

Is the sheath PVC or PUR?

The PVC sheath is not halogen-free. The cable is UV-resistant; resistance to mineral oils is defined by the IEC 60811-404 test, 7×24 hours at 90 °C. Resistance to water and grease is limited.

Installation

Installation and use

What bending radius should be used?

The minimum bend radius is 32.5 mm for a single bend and 52 mm for repeated bending. The operating temperature range is -25 to +75 °C; during installation, it is -10 to +60 °C. The maximum tensile force is 150 N.

Can the FastConnect tool be used?

The FastConnect design simplifies the preparation of the sheath and screening. The connector must match the cross-section and type of the conductors, as well as the cable diameter. The 6GK1901-1GA00 tool is designed for preparing Siemens IE FastConnect cables; select the correct cartridge and cut length according to the specific connector.

How long can a connection be designed to be?

The specified cable length for 100BASE-TX is 85 m. Allow for connectors, additional cables and attenuation along the complete link. Do not automatically apply the 100 m limit of the fixed-installation Type A cable.

Is the cable suitable for Gigabit Ethernet?

This is a cable with 4 data conductors. For standard 1000BASE-T Gigabit Ethernet, select a suitable cable with 4 pairs and compatible connectors. The CAT 5e designation alone does not mean that this 4-wire design is suitable for Gigabit transmission.

Maintenance

Operations and technical consultancy

Are the connectors included in the delivery?

No. We supply cable sold by the metre, without any connectors fitted. Please select a connector based on the specific conductors, the cable diameter, the method of installation and the space available around the port.

Is it necessary to connect PROFIBUS terminating resistors?

The cable connects the device ports within the network. It does not convert protocols and is not a substitute for an industrial switch. PROFINET is different from PROFIBUS DP; do not connect terminating resistors designed for PROFIBUS to its data path.

Will the new cable ensure the entire network runs smoothly?

Reliability also depends on the connectors, shielding, topology, power supply and device configuration. After replacement, we recommend testing the transmission path and verifying communication whilst the system is in operation.
