HELUKABEL 800654 - Flexible PROFINET Type B cable

HELUKABEL 800654 - Flexible PROFINET Type B cable


HELUKABEL

HELUKABEL 800654 - shielded PROFINET Type B cable, CAT 5e, 4-core, PVC, FastConnect. Suitable for occasional movement. Sold by the metre; minimum order quantity from FOXON is 10 m. More

Code: 800654

Total in stock: 13 m External stock 13 m
Variant does not exist
m

Rezervace termínu

Get a quote
HELUKABEL

HELUKABEL 800654 - shielded PROFINET Type B cable, CAT 5e, 4-core, PVC, FastConnect. Suitable for occasional movement. Sold by the metre; minimum order quantity from FOXON is 10 m. More

Code: 800654

Part Sales 1

Condition Code Warranty Availability Delivery
Express?
Price excl. VAT
Used (U) 800654 U 3 months In external stock 13 m
Within 2-4 days / Express
On request
HELUKABEL800654
HELUKABEL 800654 - PROFINET cable

HELUKAT® PROFInet B CAT.5e SF/UTP PVC FLEX

PROFINET and Industrial Ethernet cabling

Flexible PROFINET Type B cable

2×2 · CAT 5e · FastConnect · green PVC sheath

HELUKABEL 800654 HELUKAT® PROFInet B CAT.5e SF/UTP PVC FLEX is a shielded cable for PROFINET and Industrial Ethernet. It has 4 data conductors, a green PVC sheath and a FastConnect design for quick termination. The flexible Type B version is designed for occasional movement.

800654CAT 5e · FastConnect

Send the required length, device type and cable installation method. We will check the suitable version.

Type BOccasional movement
4 wiresCAT 5e · SF/UTP
PVC · FastConnectDouble shielding
From 10 mSold by the metre
Practical application

Use during the installation and maintenance of the network

Type B cable is designed for moving parts subject to intermittent movement. For continuous cyclic movement, energy chains or torsion, select a cable specifically approved for the relevant operating conditions. Flexible conductors do not, in themselves, guarantee a service life under continuous bending.

How to place an order

Sold by the metre, in lengths of 10 metres or more

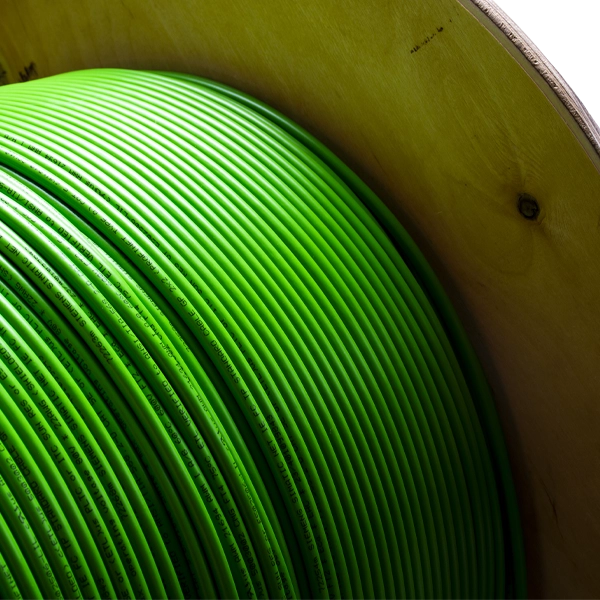

We sell the cable by the metre, cut from a reel. The minimum order quantity at FOXON is 10 m. Enter the required length in metres in the Quantity field, for example 25 for a length of 25 m. We will confirm the exact length, availability and delivery method before ordering.

Materials

Cable construction and shielding

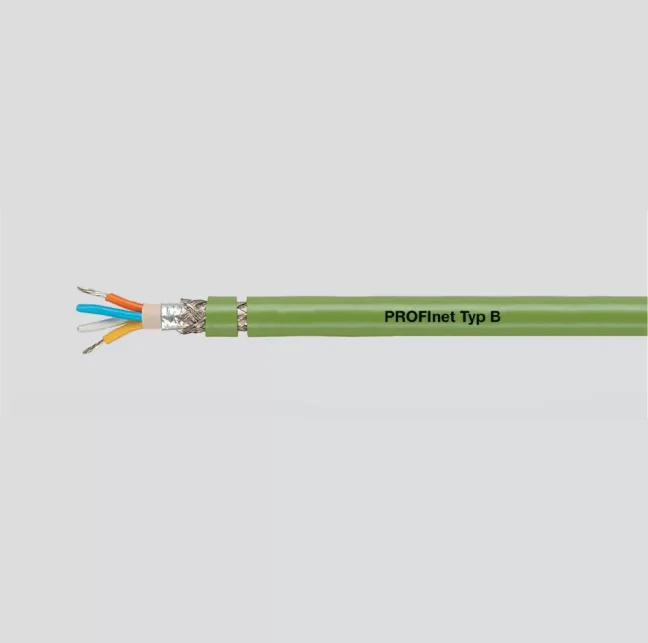

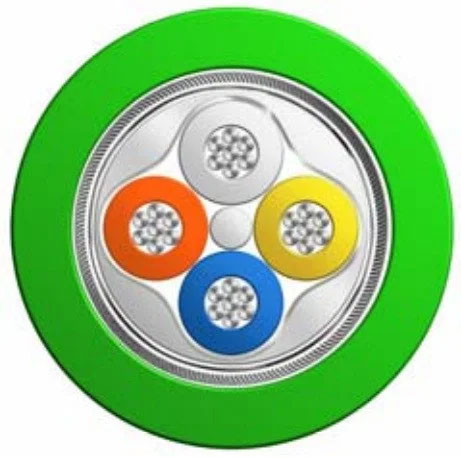

The PE-insulated data conductors are arranged in a twisted quad configuration. They are protected by aluminium foil and a tinned copper braid. Both the inner and outer sheaths are made of PVC. The conductors are coloured white, yellow, blue and orange. The double shielding requires correct connection at the connector.

HELUKABEL 800654 - PROFINET cable - detail 2
HELUKABEL 800654 - product details
HELUKABEL 800654 - PROFINET cable - detail 3
HELUKABEL 800654 - product details
Installation proposal

Bend radius and operating conditions

The minimum radius is 10 times the outer diameter when in motion and 5 times the outer diameter when fixed in place. The temperature range is -20 to +60 °C for moving applications and -40 to +80 °C when fixed in place. Separate temperature limits apply for UL mode.

The cable has both an outer and inner PVC sheath. The manufacturer states that it is resistant to oils, UV radiation, weathering and microorganisms. Please verify suitability for the specific medium, temperature and duration of exposure. The PVC designation alone does not confirm that the cable is halogen-free.

FastConnect

Preparation and assembly of connectors

The cable supports FastConnect (SK) preparation. Before assembly, check that the tool and connector suit the exact conductor construction and cable diameter. Follow the connector installation instructions for stripping lengths and shield contact.

Route the cable in accordance with the specified bending radius and clearance from power lines. Ensure strain relief, proper shielding contact and protection against damage. After installation, check the wiring connections and the quality of the completed transmission route.

PROFINET network

Connection length and transmission

The cable is designed for PROFINET systems up to 100 Mbit/s. Design the connection length taking into account the cable, connectors and attenuation along the entire route. The CAT 5e category alone does not guarantee any connection length or gigabit transmission over 4 wires.

The cable connects the device ports within the network. It does not convert protocols and is not a substitute for an industrial switch. PROFINET is different from PROFIBUS DP; do not connect terminating resistors designed for PROFIBUS to its data path.

HELUKABEL / HELUKAT® PROFInet B CAT.5e SF/UTP PVC FLEX

Technical specifications 800654

ManufacturerHELUKABEL
Order number800654
Model designationHELUKAT® PROFInet B CAT.5e SF/UTP PVC FLEX
PROFINET typeB
UsesOccasional movement
CategoryCAT 5e
Number of data conductors4
ShieldingSF/UTP, aluminium foil and tinned copper braid
Inner / outer sheathPVC / PVC
Sheath colourGreen
FastConnectYes
Wires2×2×AWG 22/7, tinned copper
Cross-section, approximately0.35 mm²
Outer diameter of the cable6.3-6.7 mm
Nominal impedance100 Ω ±15 Ω at 1-100 MHz
Conductor resistance at 20 °C, maximum57.5 Ω/km
Loop resistance at 20 °C, maximum115 Ω/km
Capacitance between conductorsApproximately 48 pF/m at 800 Hz
Typical attenuation at 100 MHz21 dB / 100 m
Minimum bend radius10 times the diameter when in motion; 5 times when stationary
Temperature range-20 to +60 °C when in motion; -40 to +80 °C when stationary
Temperature for ULCMG up to +75 °C; AWM up to +60 °C
Weight per length, approximately67 kg/km
Sales unitMetre
FOXON minimum order quantity10 m
ConnectorsThey are not fitted
Delivery

Contents of the delivery

Cable of the required and confirmed length, cut to order. Connectors and stripping tools are not included with the cable.

Practical questions

Selection and correct use

Is this cable suitable for a drag chain?

Type B cable is designed for moving parts subject to intermittent movement. For continuous cyclic movement, energy chains or torsion, select a cable specifically approved for the relevant operating conditions. Flexible conductors do not, in themselves, guarantee a service life under continuous bending.

How do I order the required length?

We sell the cable by the metre, cut from a reel. The minimum order quantity at FOXON is 10 m. Enter the required length in metres in the Quantity field, for example 25 for a length of 25 m. We will confirm the exact length, availability and delivery method before ordering.

Is the sheath PVC or PUR?

The cable has both an outer and inner PVC sheath. The manufacturer states that it is resistant to oils, UV radiation, weathering and microorganisms. Please verify suitability for the specific medium, temperature and duration of exposure. The PVC designation alone does not confirm that the cable is halogen-free.

What bending radius should be used?

The minimum radius is 10 times the outer diameter when in motion and 5 times the outer diameter when fixed in place. The temperature range is -20 to +60 °C for moving applications and -40 to +80 °C when fixed in place. Separate temperature limits apply for UL mode.

Can the FastConnect tool be used?

The cable supports FastConnect (SK) preparation. Before assembly, check that the tool and connector suit the exact conductor construction and cable diameter. Follow the connector installation instructions for stripping lengths and shield contact.

PROFINET Technical Support

Why order from FOXON

We can help you select the cabling and accessories to suit your specific PROFINET installation. Please send us a routing diagram, a list of devices and a description of the environment.

Selection for a specific route

We will review the cable routing, movement, temperature and requirements of the installation.

Cable and connectors

We will check the compatibility of the conductors, the shielding, the dimensions and the method of installation.

Preparing the cabling

We’ll help you choose the right tool and procedure for your specific connector.

PROFINET Diagnostics

We can help with cable testing and identifying the causes of communication failures.

Czech technical support

We will discuss the topology, environment and cable replacement procedure with regard to the machine operating conditions.

Delivery Confirmation

Before placing an order, we will confirm the specifications, quantity and delivery date.

Correct cablingCable routing, movement and construction
Fitting connectorsCable preparation and shield connection
Network measurementCabling and communication quality
Documentation

Technical data sheets and installation documentation

In the ‘Downloads’ tab, you will find the latest HELUKABEL technical data sheet in English for the exact order number 800654.

Open downloads
HELUKABEL

Technical specifications 800654

HELUKAT® PROFInet B CAT.5e SF/UTP PVC FLEX

Identification and design

ManufacturerHELUKABEL
Order number800654
Model designationHELUKAT® PROFInet B CAT.5e SF/UTP PVC FLEX
PROFINET typeB
UsesOccasional movement
CategoryCAT 5e
Number of data conductors4
ShieldingSF/UTP, aluminium foil and tinned copper braid
Inner / outer sheathPVC / PVC
Sheath colourGreen
FastConnectYes

Electrical and operational parameters

Wires2×2×AWG 22/7, tinned copper
Cross-section, approximately0.35 mm²
Outer diameter of the cable6.3-6.7 mm
Nominal impedance100 Ω ±15 Ω at 1-100 MHz
Conductor resistance at 20 °C, maximum57.5 Ω/km
Loop resistance at 20 °C, maximum115 Ω/km
Capacitance between conductorsApproximately 48 pF/m at 800 Hz
Typical attenuation at 100 MHz21 dB / 100 m
Minimum bend radius10 times the diameter when in motion; 5 times when stationary
Temperature range-20 to +60 °C when in motion; -40 to +80 °C when stationary
Temperature for ULCMG up to +75 °C; AWM up to +60 °C
Weight per length, approximately67 kg/km

Delivery

Sales unitMetre
FOXON minimum order quantity10 m
ConnectorsThey are not fitted
Connection

Compatibility and installation

The cable supports FastConnect (SK) preparation. Before assembly, check that the tool and connector suit the exact conductor construction and cable diameter. Follow the connector installation instructions for stripping lengths and shield contact.

Route the cable in accordance with the specified bending radius and clearance from power lines. Ensure strain relief, proper shielding contact and protection against damage. After installation, check the wiring connections and the quality of the completed transmission route.

Installation proposal

Use and delivery

The minimum radius is 10 times the outer diameter when in motion and 5 times the outer diameter when fixed in place. The temperature range is -20 to +60 °C for moving applications and -40 to +80 °C when fixed in place. Separate temperature limits apply for UL mode.

We sell the cable by the metre, cut from a reel. The minimum order quantity at FOXON is 10 m. Enter the required length in metres in the Quantity field, for example 25 for a length of 25 m. We will confirm the exact length, availability and delivery method before ordering.

FAQ - 800654

Choosing the right model

Is this cable suitable for a drag chain?

Type B cable is designed for moving parts subject to intermittent movement. For continuous cyclic movement, energy chains or torsion, select a cable specifically approved for the relevant operating conditions. Flexible conductors do not, in themselves, guarantee a service life under continuous bending.

How do I order the required length?

We sell the cable by the metre, cut from a reel. The minimum order quantity at FOXON is 10 m. Enter the required length in metres in the Quantity field, for example 25 for a length of 25 m. We will confirm the exact length, availability and delivery method before ordering.

Is the sheath PVC or PUR?

The cable has both an outer and inner PVC sheath. The manufacturer states that it is resistant to oils, UV radiation, weathering and microorganisms. Please verify suitability for the specific medium, temperature and duration of exposure. The PVC designation alone does not confirm that the cable is halogen-free.

Installation

Installation and use

What bending radius should be used?

The minimum radius is 10 times the outer diameter when in motion and 5 times the outer diameter when fixed in place. The temperature range is -20 to +60 °C for moving applications and -40 to +80 °C when fixed in place. Separate temperature limits apply for UL mode.

Can the FastConnect tool be used?

The cable supports FastConnect (SK) preparation. Before assembly, check that the tool and connector suit the exact conductor construction and cable diameter. Follow the connector installation instructions for stripping lengths and shield contact.

How long can a connection be designed to be?

The cable is designed for PROFINET systems up to 100 Mbit/s. Design the connection length taking into account the cable, connectors and attenuation along the entire route. The CAT 5e category alone does not guarantee any connection length or gigabit transmission over 4 wires.

Is the cable suitable for Gigabit Ethernet?

This is a cable with 4 data conductors. For standard 1000BASE-T Gigabit Ethernet, select a suitable cable with 4 pairs and compatible connectors. The CAT 5e designation alone does not mean that this 4-wire design is suitable for Gigabit transmission.

Maintenance

Operations and technical consultancy

Are the connectors included in the delivery?

No. We supply cable sold by the metre, without any connectors fitted. Please select a connector based on the specific conductors, the cable diameter, the method of installation and the space available around the port.

Is it necessary to connect PROFIBUS terminating resistors?

The cable connects the device ports within the network. It does not convert protocols and is not a substitute for an industrial switch. PROFINET is different from PROFIBUS DP; do not connect terminating resistors designed for PROFIBUS to its data path.

Will the new cable ensure the entire network runs smoothly?

Reliability also depends on the connectors, shielding, topology, power supply and device configuration. After replacement, we recommend testing the transmission path and verifying communication whilst the system is in operation.
