8.4" TFT display as a replacement for the original 9" and 10" CRT monitor in Siemens WS 400-200 systems. Replaces mointors with 6FM1420-1AA00 (Mono), 6FM1420-1BA00 (Colour), 6FM1420-1BA02 and 6FM1496-2BA22. More
Manufacturer: TSUBIS Code: LCD12-0083

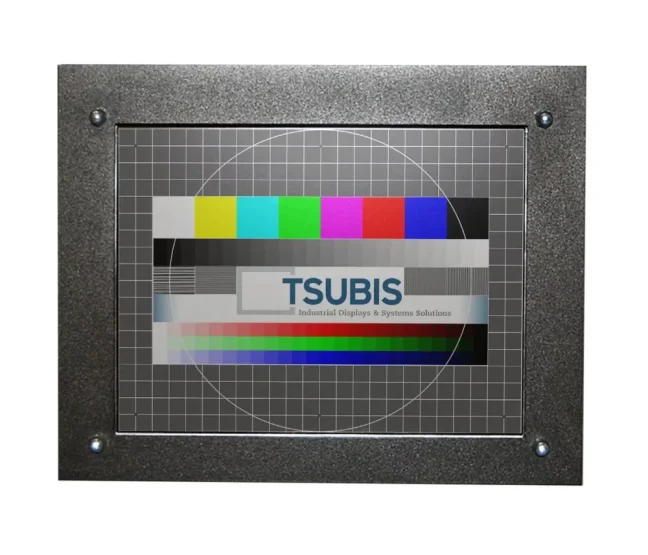

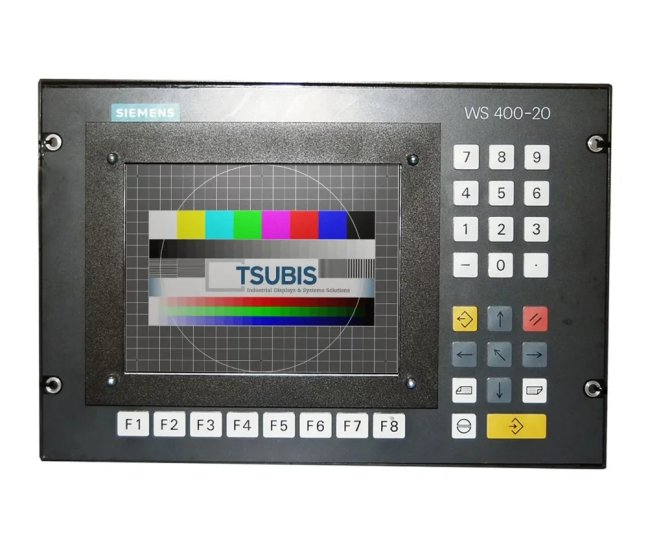

This 8,4″ industrial monitor replaces the colored 9″ and 10″ tube monitors in the Siemens Simatic control WS 400-20. In this control the graphic card WF 470 was used. The monitor is supplied including a double front panel and in turn integrated into the existing control unit.
Both electrically and mechanically the TFT monitor was adapted to the original Siemens control. An exchange is therefore easy and uncomplicated with few handles possible ("Plug & Play" principle).
8.4" TFT LCD replacement monitor for 9" or 10" CRT monitor (monochrome and colour).
- Control manufacturer.
- Control units: WS 400-20 (with WF 470 graphics card, 6FM1470-4AA25).
- Installation variant: front panel including protective glass

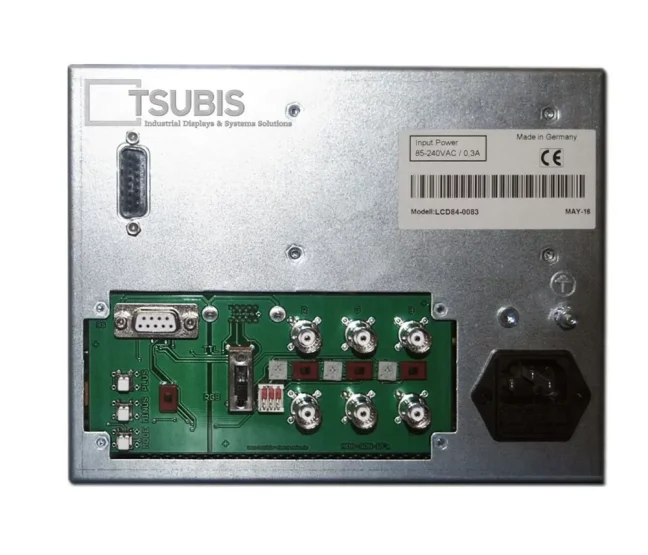

- Video connection: 3x BNC (6 x BNC available for possible pass-through operation)
- Front panel dimensions (WxH): 220 × 173 mm
- Power supply: 85-240 V AC
- Siemens Monitor Codes:
- 6FM1420-1AA00 (mono)
- 6FM1420-1BA00 (color)
- 6FM1420-1BA02
- 6FM1496-2BA22
