Monitor for Yaskawa YASNAC SIM-16

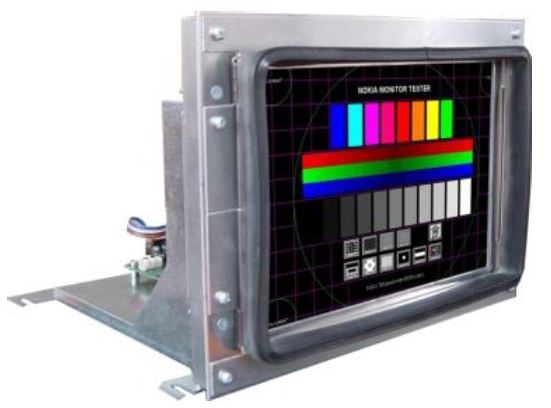

8.4” TFT LCD replacement monitor for 9" CRT monitor.
- Replacement monitor for MDT-948B-3A, MATSUURA/YASNAC SIM12 and MATSUURA/YASNAC SIM16.
- LCD replacement-monitor 8,4” TFT Full Colour active, 800 x 600 pixels
- Frequency 15 - 45 kHz horizontal, 50 - 75 Hz vertical
- Active area TFT screen 170 x 128 mm (W x H)
- Connector 20 pin box header
- Housing dimension compatible
- Settings via OSD (On Screen Display)
- Power supply DC 12 V
- Temperature range -10° to 55°C operating temperature
- Manufactured according to CE industry standard, EN55022, EN55024
