Main battery Mobile Panel IWLAN
Options 2
| Condition | Code | Availability | Price excl. VAT | |
|---|---|---|---|---|
| New in sealed box (NC) | 6AV6671-5CL00-0AX1 NC | 1 pcs |
On request
|
|
| Refurbished (R) | 6AV6671-5CL00-0AX1 R | 6 pcs |
On request
|

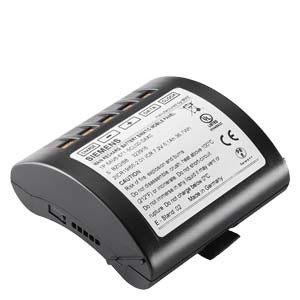

6AV6671-5CL00-0AX1 – SIEMENS – Mobile Panel IWLAN battery
The 6AV6671-5CL00-0AX1 is the main rechargeable battery for the Mobile Panel IWLAN. According to Siemens’ technical data, the current version has a voltage of 7.4 V and a capacity of 5.8 Ah.
Need to confirm the correct battery configuration?
Please send a photograph of the battery, the connector and the device label. We will confirm availability and the delivery date.
Battery application
It is used to power the mobile panel. It is designed for the Mobile Panel 277 IWLAN, 277F IWLAN and the corresponding V2 and RFID variants; it is not a non-rechargeable PLC backup battery.
Technical specifications
| Order number | 6AV6671-5CL00-0AX1 |
|---|---|
| Voltage | 7,4 V DC |
| Capacity of the current version | 5.8 Ah |
| Technology | Li-ion; rechargeable |
| Dimensions: width × height × thickness | 75 × 78 × 33 mm |
| Weight without / with packaging | 220 / 320 g |
| Protection rating | IP20 |
| Charge status indication | In 20% increments |
Configuration and replacement selection
For older batteries, the values on the label vary depending on the model. Please send a photograph of the original battery and the panel order number; we will confirm the variant to be supplied before you place your order. Please charge the battery using the method specified for the specific panel.
Scope of delivery
One main battery with a slide-out element. Neither the panel nor the charging accessories are included in the scope of supply.
Frequently asked questions about batteries
What is this battery used for?
In a rechargeable battery, the stored energy is used to power the relevant device. This is not automatically a PLC backup battery. Check the battery’s function and method of use according to the exact type of device.
Is the battery rechargeable?
Yes. Charge it only using a charging system designed for the specific device and this type of battery. A non-rechargeable lithium cell is not a suitable replacement.
How often is replacement recommended?
Follow the equipment manufacturer’s instructions. Monitor the battery’s age, runtime per charge, casing condition and diagnostics. For rechargeable batteries, wear and tear also depends on the number of charge cycles and the charging method. There is no universal replacement interval applicable to all configurations.
How can I tell if a battery is worn out or faulty?
Depending on the device, this may manifest as a reduced operating time, an inability to charge properly or a diagnostic message. Do not continue to use a damaged or deformed battery pack; follow the device’s service instructions.
How does the cold affect a battery?
Low temperatures limit the available power and usable capacity. The temperature inside the device and the limits of the entire assembly are decisive. The operating range differs from the charging range; observe both sets of manufacturer’s specifications.
Does high temperature shorten service life?
Higher temperatures accelerate battery ageing. Take into account both operating and storage conditions, and do not leave a spare battery in an overheated area. Adhere to the temperature limits for both the equipment and the battery pack.
Is the battery replaced whilst the device is switched on or off?
Follow the procedure for the specific type of equipment. Before disconnecting the main battery, ensure that the machine and equipment are in the required state. Do not regard replacement whilst the system is live or maintaining operation during replacement as a generally supported function.
What should be checked before and after replacement?
Compare the order number, voltage, technology, dimensions, contacts and mechanical mounting. Check the condition of the equipment and its diagnostics. After replacement, verify correct installation, signalling and operation in accordance with the manufacturer’s instructions; record the date of replacement in the maintenance log.
Is the same voltage sufficient for selection?
No. The chemical system, charging conditions, contacts, polarity, mechanical design and equipment requirements must also match. Identical size or voltage alone do not constitute confirmation of a suitable replacement.
How should a spare battery be stored?
Comply with the manufacturer’s specifications regarding temperature, state of charge and storage duration. Protect the contacts from short circuits, moisture and mechanical damage. The storage methods for primary batteries and rechargeable batteries differ.
