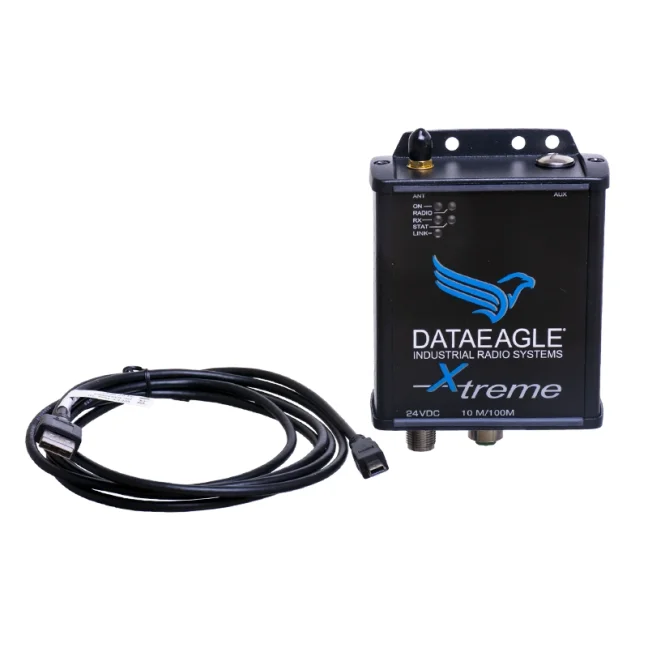

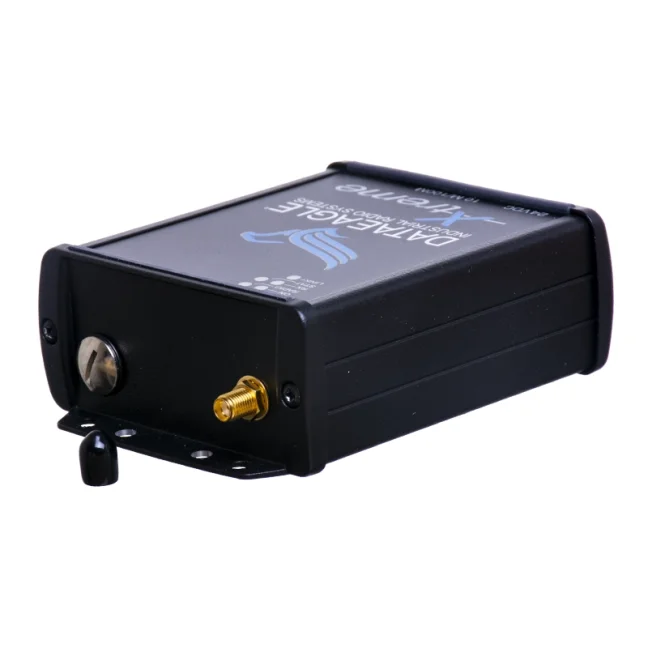

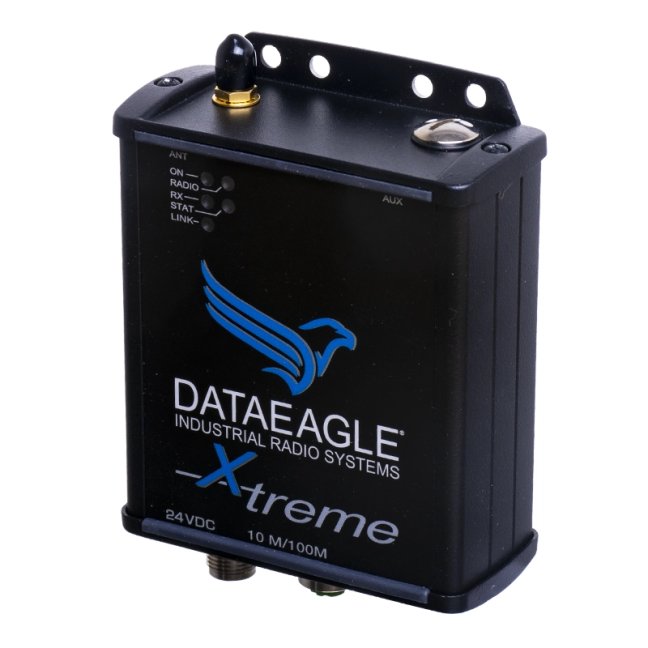

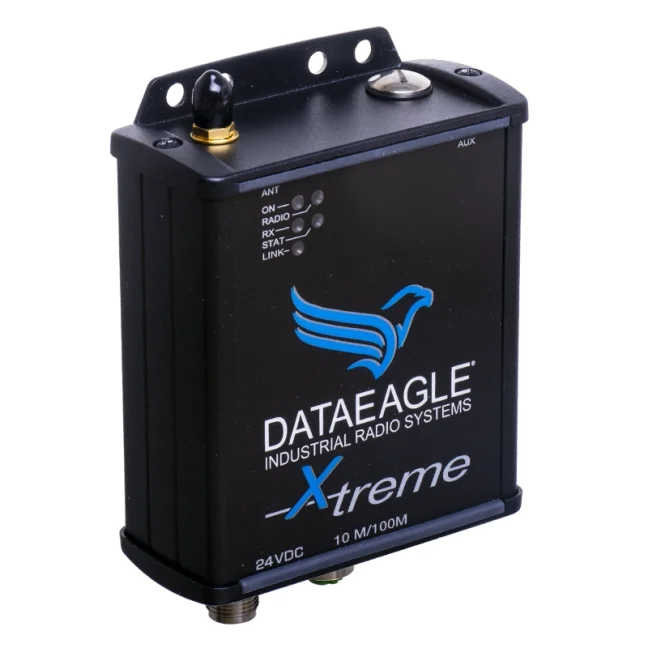

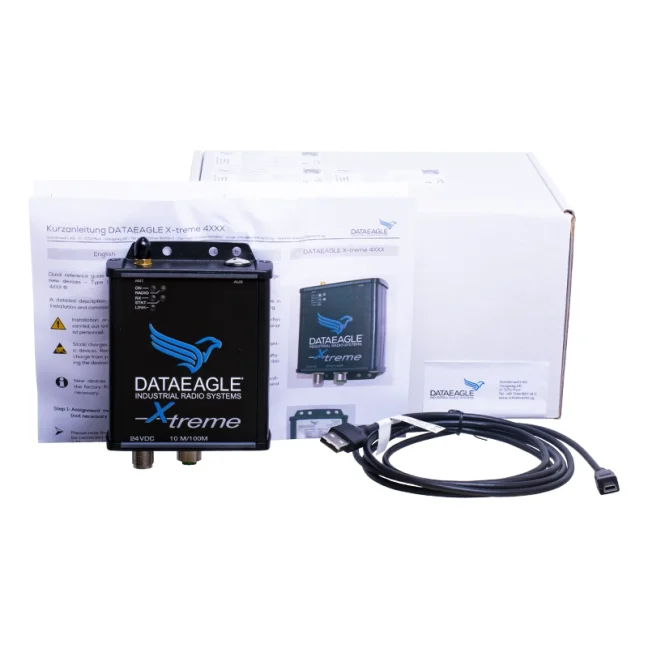

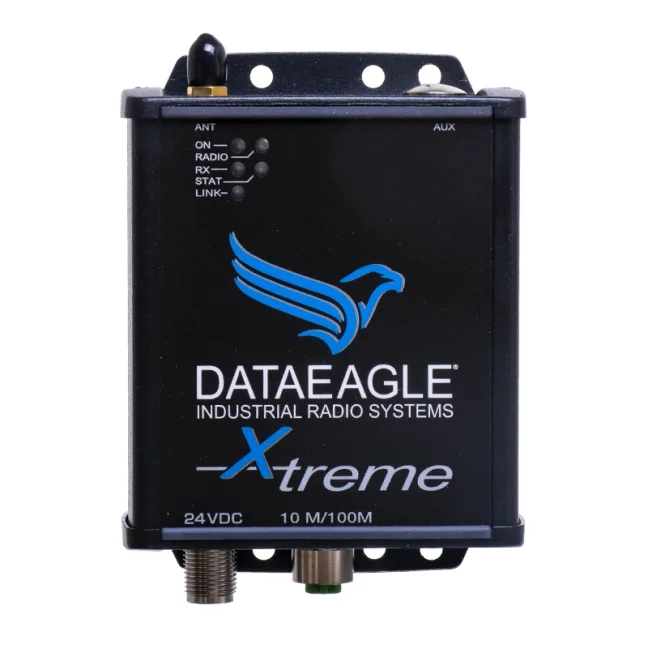

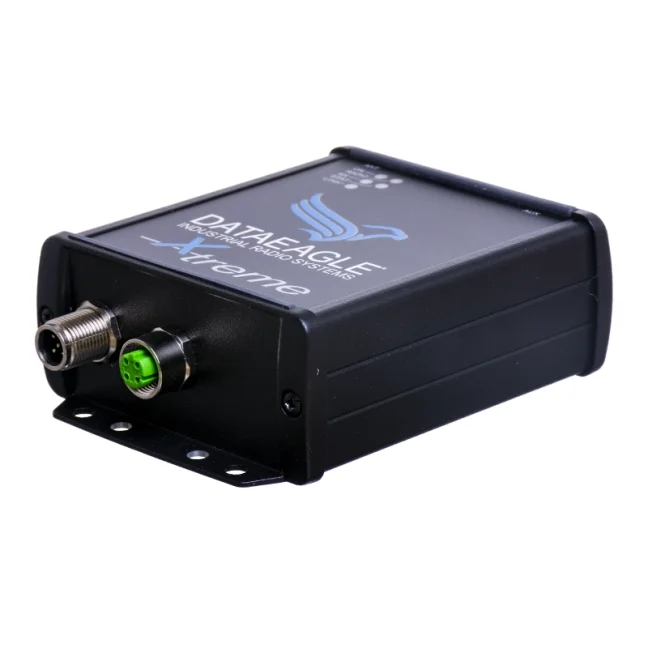

DATAEAGLE 4333 X-TREME, 869 MHz
Plug'n'Play PROFINET wireless network transmission, 869MHz operation, range up to 300m indoors and 1km-3km outdoors. IP65 protection More
Manufacturer: Schildknecht Code: 11372
Plug'n'Play PROFINET wireless network transmission, 869MHz operation, range up to 300m indoors and 1km-3km outdoors. IP65 protection More
Manufacturer: Schildknecht Code: 11372
The DATAEAGLE 4333 uses the PROFINET frequency of 869 MHz for wireless communication transmission, which can achieve a range of up to 300 m indoors and up to 3000 m outdoors, depending on the antennas used.
A minimum of 1x DATAEAGLE 4333 transmitter (Master) and 1x DATAEAGLE 4333 receiver (Slave) is required to establish a wireless connection. Up to 4 receivers can be connected to one transmitter. In total, a maximum of 6 PROFINET IO stations (IO devices) can be installed behind all transmitters together. Antenna not included. One antenna is required for each unit.
Notice:
The DATAEAGLE 4333 supports the PROFINET RT protocol and does not support the PROFIsafe protocol. If you are not sure if the DATAEAGLE 4333 is the right choice for you, please contact our technical support and we will help you with your selection.
Compact and X-Treme variants
The units are available in Compact (IP20) and X-treme (IP65) versions and can be combined with each other.
Examples of using wireless PROFINET via DATAEAGLE products
We have been successfully equipping industrial plants with our radio data transmission system for more than 40 years. Most often we deploy DATAEAGLE wireless products in:
- Substitute of conductor lines
- Substitute of trailing cables and cable chains
- Substitute of optical data transceivers
- Crane systems
- Warehouse systems
- Automotive industry
- Transport vehicles
- Water, wastewater, waste and raw material management
- Engineering
- Lifts, inclined lifts and cable cars
- Oil and gas industry
- Steel and cement plants
- Stage technology
We will be happy to help you choose the right configuration
We are happy to help you with your antenna selection. Let us know at technical support how you will be using the units in the space (ideally send a project diagram). We will select direct or omnidirectional antennas for you, or extension cables for the most suitable signal path.
GENERAL | |
Voltage supply | 24 V DC |
Connection Voltage supply | M12, A-coded |
Power consumption | 100 mA |
Fixing | 4-hole screw mounting |
Protection class | IP65 |
Temperature range | -20...+60 °C |
Conformity | CE |
Weight | 280 g |
Width | 88 mm |
Height | 120 mm |
Depth | 42 mm |
Color | Black |
RADIO TECHNOLOGY | |
Frequency | 869 MHz |
Transmitting power | 500 mW (EIRP) |
Max. Number radio slaves | 4 |
Range indoor | 300 m |
Range outdoor | 1000 -3000 m |
Antenna connection | SMA connector (female) - 50 Ohm |
INTERFACE | |
Max. Ethernet transmission rate | 100 Mbps |
2-port Switch | No |
Ethernet connection | M12, B-coded |
Optimized for | PROFINET |
Max. Number PROFINET devices | 6 |
PROFIsafe | No |
