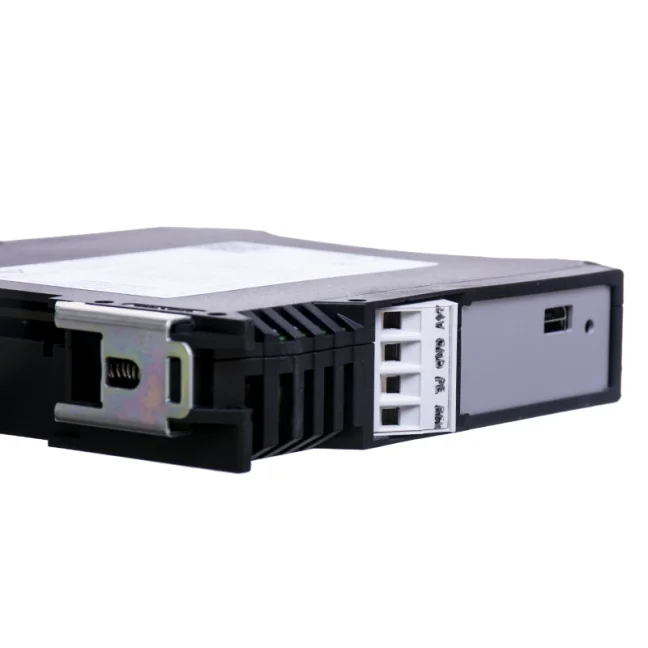

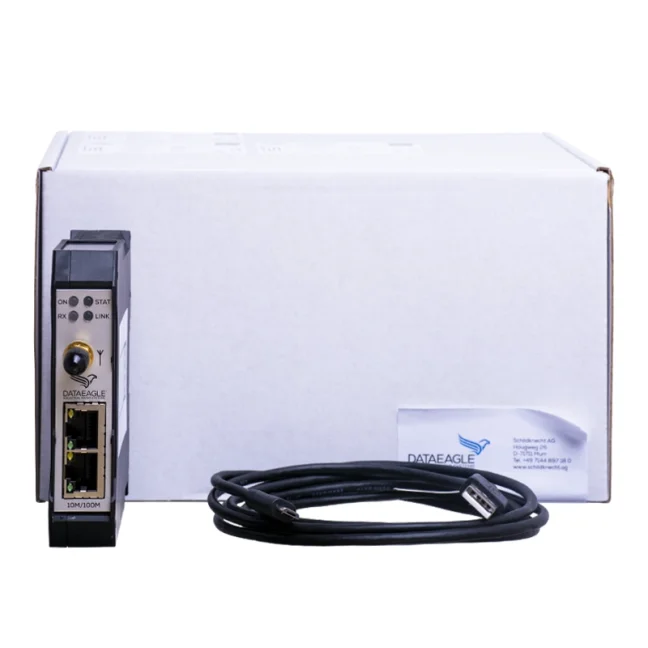

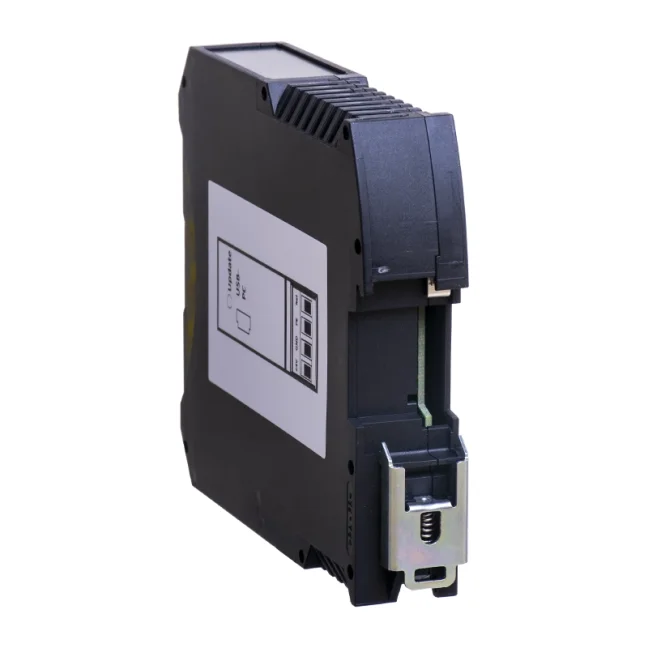

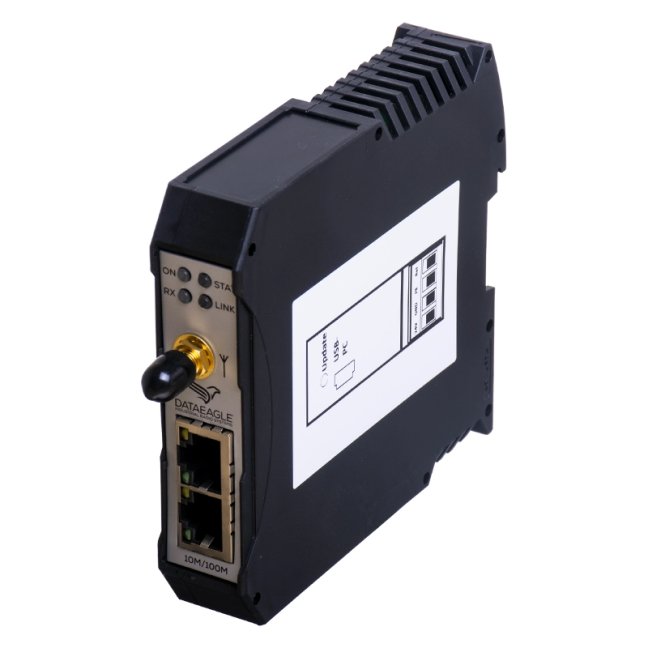

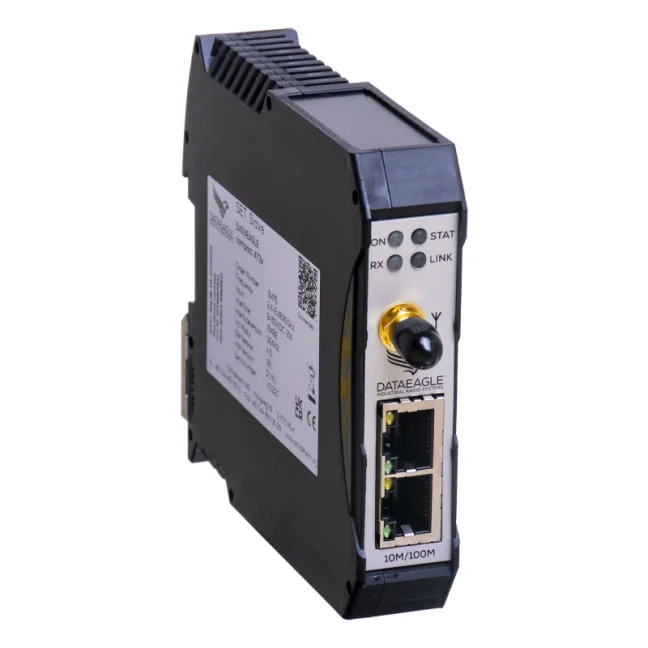

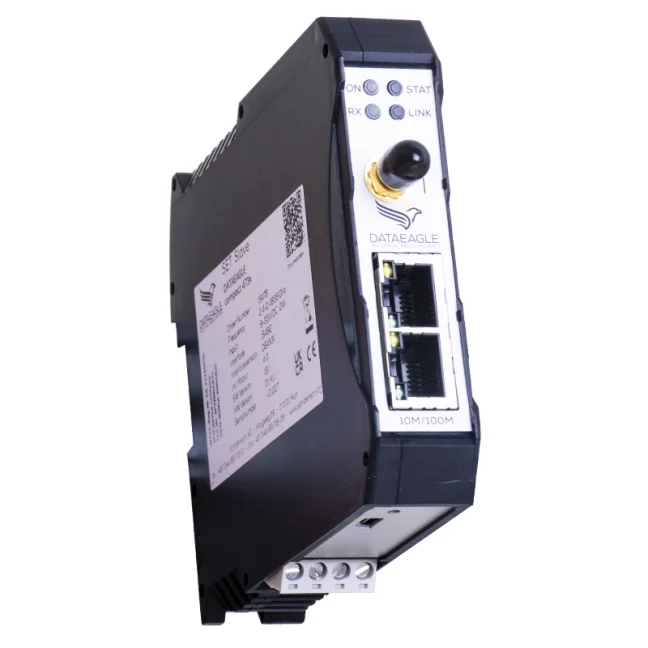

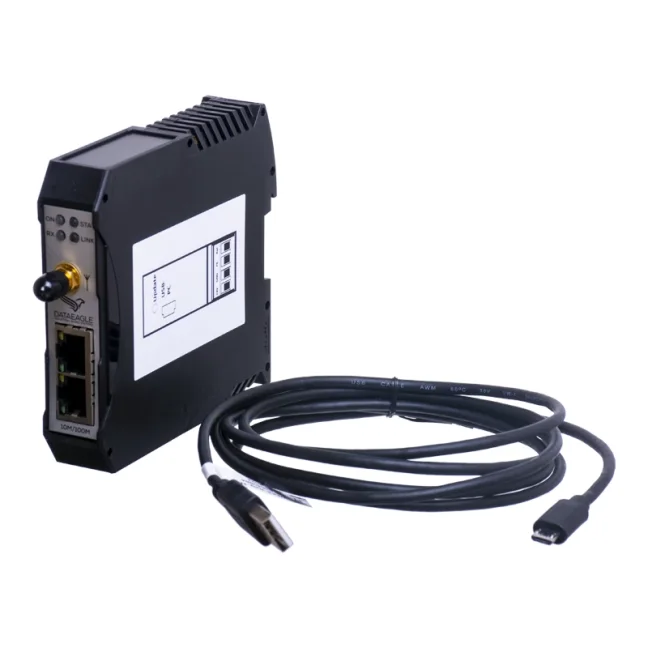

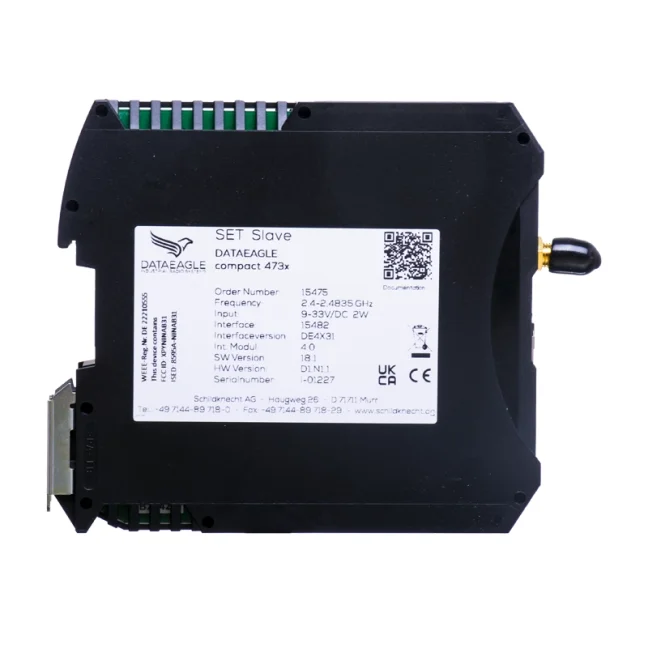

PROFINET DATAEAGLE 4333 Compact Wireless, 869 MHz

PROFINET DATAEAGLE 4333 Compact Wireless, 869 MHz

FOXON PLUS

Schildknecht

Radio unit for PROFINET wireless connectivity. 869 MHz, IP20, RJ45 connection, 24 V DC. Stand-alone unit; a complete connection requires a matching counterpart. More

Code: 11144

1 849 EUR excl. VAT (2 237,29 EUR Incl. VAT)
Recycling fee 0,04 EUR included in the price.
Delivery in 2-3 weeks
pcs
(0 pcs In stock)

Rezervace termínu

Get a quote
Schildknecht

Radio unit for PROFINET wireless connectivity. 869 MHz, IP20, RJ45 connection, 24 V DC. Stand-alone unit; a complete connection requires a matching counterpart. More

Code: 11144

SCHILDKNECHT DATAEAGLE 4000

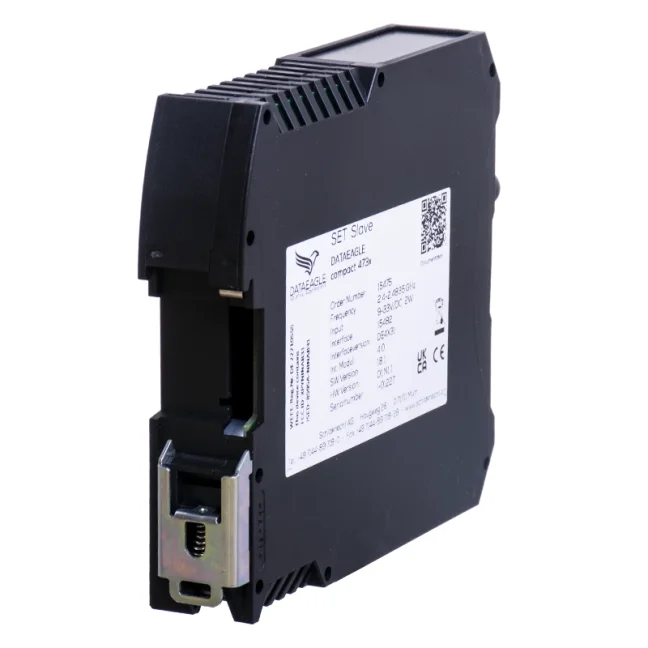

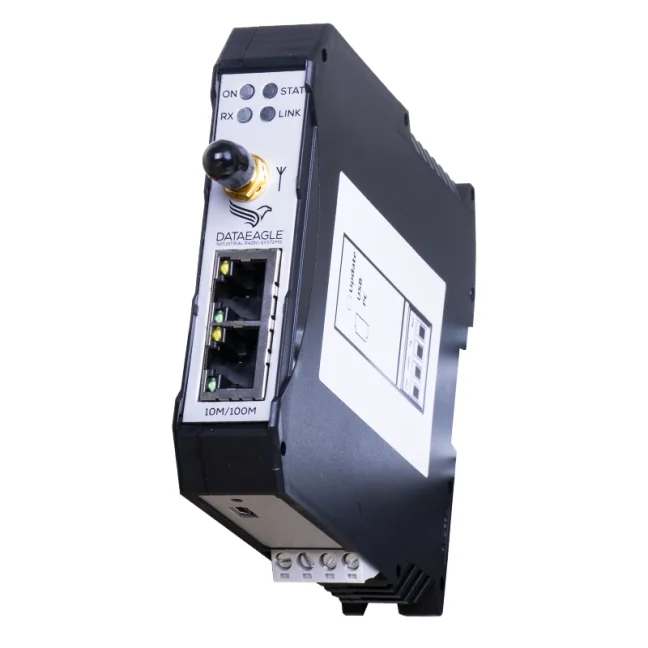

DATAEAGLE 4333 Compact - wireless PROFINET for the control cabinet

DATAEAGLE 4333 Compact (11144) connects parts of an industrial Ethernet network via an 869 MHz radio link. The IP20 version is designed for installation on a DIN rail inside a control cabinet. This card constitutes a single radio unit, not an entire wireless link.

Are you enquiring about a single module or a complete wireless link?
Please send us a network diagram, the number of units and your transmission requirements. We will coordinate the modules, communication and configuration.

Enquire about a module or a complete assembly
869 MHzRadio technology
IP20DIN-rail mounting
PROFINETUp to 6 devices per connection

Using wireless PROFINET

Radio connectivity is ideal for mobile trolleys, turntables, cranes and other pieces of equipment where data cables are prone to wear and tear or are difficult to route. The connection is designed taking into account the distance, the environment, the communication load and the required response times.

The Compact version, with an IP20 rating, is designed for installation inside a control cabinet. Position the antenna taking into account the metal shielding of the control cabinet and any surrounding obstacles.

Technical specifications

ManufacturerSCHILDKNECHT
Manufacturer’s order number11144
ModelDATAEAGLE 4333 Compact
Item typeOne radio unit
Radio technology869 MHz
MatingIP20
Power supply24 V DC

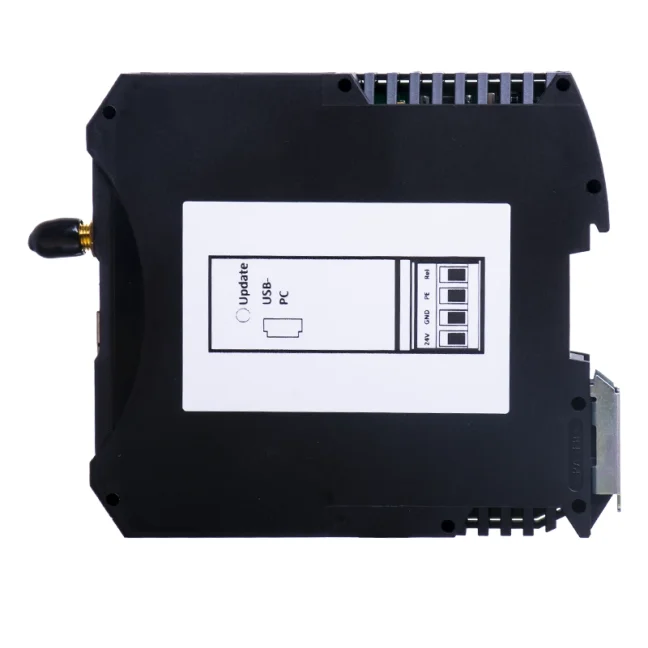

Connecting the power supplyClamps

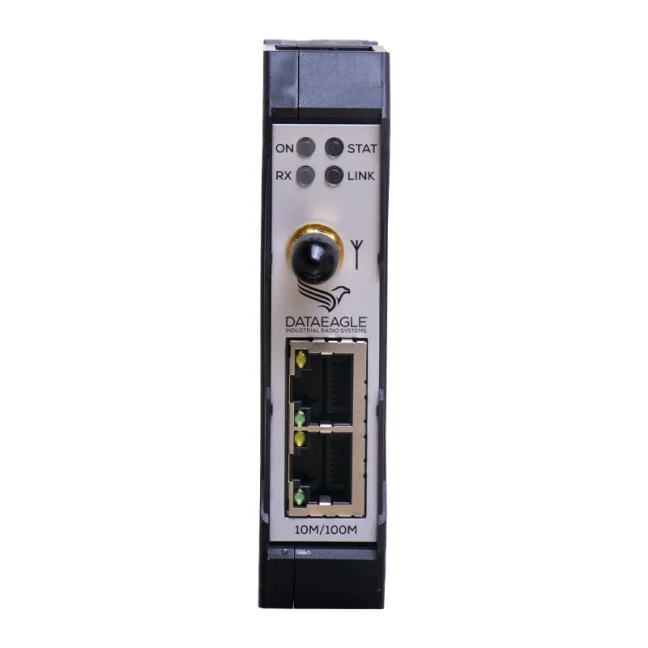

Ethernet connectionRJ45
Maximum speed of the wired interface100Mbit/s - this is not the radio’s bandwidth

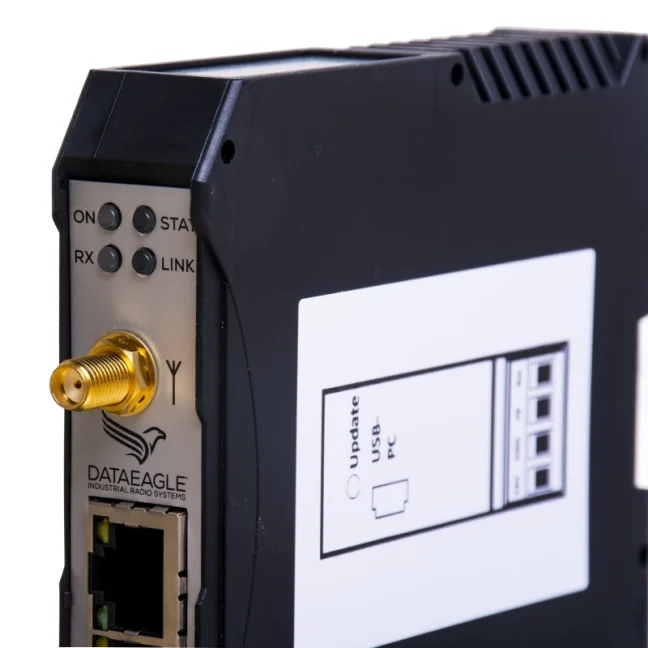

Antenna socketSMA, female, 50 Ω
MountingDIN-rail mounting
Operating temperature-20 to +60°C
Dimensions (W × H × D)22,5 × 99 × 114,5 mm
Module weight160g
Approximate range outdoors1 to 3 km
Maximum number of radio receivers4
Maximum number of PROFINET devices6
PROFIsafeNot supported

The range is approximate. It depends on the antennas, obstacles, the location and movement of the units, and surrounding radio traffic. The stated speed of the wired interface does not represent the radio transmission bandwidth.

Communication and Transmission Design

The DATAEAGLE 4333 is designed for PROFINET transmission. Up to four radio receivers can be connected to a single radio control unit. For the remote part of the network, there is a total limit of six PROFINET devices.

DATAEAGLE 4333 does not support PROFIsafe. A 100 Mbit/s Ethernet interface does not determine the throughput of the radio link. Transmission at 869 MHz must be assessed on the basis of data volume, communication times and installation conditions.

Module, complete assembly and accessories

This card represents a single radio unit. To complete the connection, a suitable counterpart is required, and the Master and Slave roles must be configured. The number of units and the topology are determined by the wiring configuration.

Antennas are not included with the standalone unit. We will select a suitable antenna for each unit, along with an antenna cable and mounting bracket as required. We will also provide power cables, Ethernet cables and connectors. We will confirm the exact contents of the delivery and the required configuration in the quotation.

Please send us a network diagram, the number of remote devices, the protocol and the required communication times, the distance, a description of the movement and photographs of the environment. When replacing an older module, please include a photograph of the label and the current configuration.

Documentation to download

Diagrams and examples of use

The diagrams and illustrations show examples of installation. The specific number of stations, communication functions and accessories depend on the model selected and the configuration specified in the quotation.

DATAEAGLE TV videos, tutorials and webinars

Selected videos from the manufacturer in English. Start with a brief introduction, or go for in-depth webinars and tutorials.

EN · 1:29

Wireless PROFINET - DATAEAGLE 4000

A brief overview of the DATAEAGLE4000 series for wireless industrial communication.

Open the video on YouTube
EN · 3:40

How does DATAEAGLE radio transmission work?

The difference between a cable connection and a radio link, and an explanation of data pre-processing in the DATAEAGLE system.

Open the video on YouTube

The videos demonstrate the principles behind the DATAEAGLE 4000 series and show examples of its use. Specific functions and connections depend on the model selected and its configuration. The DATAEAGLE 4333 model does not support PROFIsafe.

Industrial Wireless Webinars - 3 videos in English
Industrial Wireless Webinar - Part 1: Designing an Industrial Wireless Link, in English
EN · 38:26 · 2020
1. Design of an industrial wireless link

The basics of power transmission, differences compared to cables and slip rings, project planning and practical demonstrations.

Watch the English webinar
Industrial Wireless Webinar - Part 2: WLAN, Bluetooth and their applications, in English
EN · 46:39 · 2020
2. WLAN, Bluetooth and their uses

A comparison of radio technologies, signal propagation, network convergence and examples from the field of automation.

Watch the English webinar
Industrial Wireless Webinar - Part 3: Applications, Diagnostics and Antennas, in English
EN · 44:47 · 2020
3. Applications, diagnostics and antennas

Industry examples, a demonstration of PROFINET/PROFIsafe diagnostics in the DATAEAGLE Wizard, and the selection and positioning of antennas.

Watch the English webinar
Firmware update guides - in English
EN · 2:40 · 2016
Main firmware update

An older demonstration of how to connect the unit to a PC and update the main CPU’s firmware. The instructions in the video are in English.

Older examples from2016. The programme interface and procedure vary depending on the model. Before updating, please check the exact model, hardware and firmware versions, and ensure you have the correct update file. FOXON’s technical support team will help you with the correct procedure.

More videos on the DATAEAGLE TV channel - The channel also features German videos; the selection in this section is in English.

Frequently Asked Questions

Is one unit enough for wireless transmission?

No. To connect two radio sites, you need two suitable units with the appropriate communication and configuration. This card constitutes one module.

Are all the protocols included in the basic module?

This model supports PROFINET but does not support PROFIsafe.

Is the range guaranteed indoors as well?

Range is affected by metal obstacles, movement, antennas and surrounding radio traffic. To carry out the design, we need the transmission route and photographs of the surroundings.

Is the aerial part of the unit?

The antenna must be selected separately, depending on the installation. When quoting for a complete system, we will specify the antennas, cables, mounting arrangements and unit connections.

Can the existing module be replaced without further verification?

Before carrying out the replacement, we will verify the exact model, radio variant, communication functions, roles and settings on both sides of the connection. A similar name alone does not confirm that the replacement is suitable.

Why buy DATAEAGLE from FOXON

Schildknecht Distributor

We are the distributor of Schildknecht products for the Czech Republic and Slovakia. We have been representing the manufacturer since 2015.

Products in stock

We hold Schildknecht products in stock. We will confirm the availability of the selected model and the required quantity before you place your order.

From single items to larger batches

We can arrange deliveries ranging from single items to larger batches. We can also help organise deliveries for the repeat production of machinery and equipment.

Technical support and consultancy

We can help you choose modules, communication options, configurations and antennas. We provide technical support and advice on installation and operation.

More than 3 500customers
We supply tomore than 100 countries around the world
Express delivery?We’ll look into it - please contact us straight away.

DATAEAGLE enquiry - 11144

Please quote code 11144, the required quantity and whether you are enquiring about a single item or a complete assembly. For the proposal, please attach a network diagram, a specification, the number of radio sites and end devices, the distance, photographs of the site and the required response times.

Enquire about a module or a complete assembly

Book an online consultation · +420 488 588 749 · poptavka@foxon.cz

Technical specifications

ManufacturerSCHILDKNECHT
Manufacturer’s order number11144
ModelDATAEAGLE 4333 Compact
Item typeOne radio unit
Radio technology869 MHz
MatingIP20
Power supply24 V DC
Connecting the power supplyClamps
Ethernet connectionRJ45
Maximum speed of the wired interface100Mbit/s - this is not the radio’s bandwidth
Antenna socketSMA, female, 50 Ω
MountingDIN-rail mounting
Operating temperature-20 to +60°C
Dimensions (W × H × D)22,5 × 99 × 114,5 mm
Module weight160g
Approximate range outdoors1 to 3 km
Maximum number of radio receivers4
Maximum number of PROFINET devices6
PROFIsafeNot supported

The range is approximate. It depends on the antennas, obstacles, the location and movement of the units, and surrounding radio traffic. The stated speed of the wired interface does not represent the radio transmission bandwidth.

The supported protocols, number of remote devices and connections will vary depending on the specific model and configuration. Please refer to the ‘Description’ tab for further details.
