Euroconnection AS-PLPE005/69MM - Ready-made PROFINET cable with RJ45 connector, length 0.5 m

Euroconnection AS-PLPE005/69MM - Ready-made PROFINET cable with RJ45 connector, length 0.5 m


Euroconnection

Euroconnection AS-PLPE005/69MM - a ready-made PROFINET cable, 0.5 m long, with an RJ45 connector at both ends. For connecting industrial devices without the need to fit connectors on site. Sold individually. More

Code: AS-PLPE005/69MM

42 EUR excl. VAT (50,82 EUR Incl. VAT)
Recycling fee 0,04 EUR included in the price.
In stock
pcs
(25 pcs In stock)

Rezervace termínu

Get a quote
Euroconnection

Euroconnection AS-PLPE005/69MM - a ready-made PROFINET cable, 0.5 m long, with an RJ45 connector at both ends. For connecting industrial devices without the need to fit connectors on site. Sold individually. More

Code: AS-PLPE005/69MM

EuroconnectionAS-PLPE005/69MM
Euroconnection AS-PLPE005/69MM - PROFINET cable

PROFINET RJ45 to RJ45 patch cable

PROFINET and Industrial Ethernet cabling

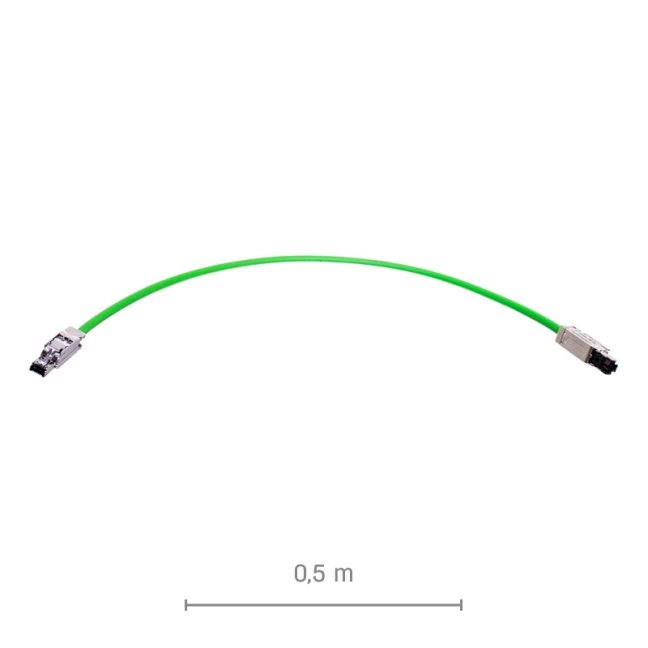

Ready-made PROFINET cable with RJ45 connector, length 0.5 m

2 RJ45 connectors · ready-to-connect assembly

The Euroconnection AS-PLPE005/69MM is a ready-made PROFINET patch cable, 0.5 m in length, with an RJ45 connector at each end. It is suitable for connecting devices within an industrial control cabinet or between devices with compatible Ethernet ports. The connectors are already fitted.

AS-PLPE005/69MMRJ45 / RJ45

Send the required length, device type and cable installation method. We will check the suitable version.

0.5 mThe length of this cable assembly
RJ45 / RJ45Connectors at both ends
Finished assemblyNo on-site connector fitting required
Sold individuallyQuantity refers to the number of cables
Practical application

Use during the installation and maintenance of the network

The 0.5 m length allows you to connect ports without having to make a cable on site. When selecting a cable, take into account the entire route, the bending radius and the space required for the connectors. Once connected, the cable should not be taut or place any strain on the device’s socket.

How to place an order

Ordering a ready-made cable

This item refers to 1 ready-made cable, 0.5 m in length. Enter the number of cables in the ‘Quantity’ field. We also offer lengths of 0.5 m, 1 m, 2 m, 3 m, 5 m, 7 m and 10 m as individual items. We will confirm any other lengths and the minimum order quantity for custom assemblies in our quotation.

Installation

Connections and the area around the ports

There is an RJ45 connector at both ends. Before ordering, check the available space around the ports, the space required to secure the connector, and the device’s cabling requirements. The RJ45 connector itself does not guarantee a specific data transfer rate, PoE power supply or suitability for wet environments.

Route the cable in accordance with the specified bending radius and clearance from power lines. Ensure strain relief, proper shielding contact and protection against damage. After installation, check the wiring connections and the quality of the completed transmission route.

Choice of design

Movement and environmental conditions

The flexible design makes routing easier. For continuous movement in a drag chain, torsion or a robotic application, the exact complete assembly, bend radius and operating conditions must be confirmed. Send the travel length, speed, temperature and required number of cycles.

Product photos

Cable and connector design

The photographs show the cable and details of the connectors in this product range. The exact code and length specified in the specifications are essential for placing an order.

Euroconnection AS-PLPE005/69MM - PROFINET cable - detail 2
Euroconnection AS-PLPE005/69MM - product details
Euroconnection AS-PLPE005/69MM - PROFINET cable - detail 3
Euroconnection AS-PLPE005/69MM - product details
Euroconnection AS-PLPE005/69MM - PROFINET cable - detail 4
Euroconnection AS-PLPE005/69MM - product details
Euroconnection AS-PLPE005/69MM - PROFINET cable - detail 5
Euroconnection AS-PLPE005/69MM - product details
Euroconnection AS-PLPE005/69MM - PROFINET cable - detail 6
Euroconnection AS-PLPE005/69MM - product details
Euroconnection AS-PLPE005/69MM - PROFINET cable - detail 7
Euroconnection AS-PLPE005/69MM - product details
Euroconnection AS-PLPE005/69MM - PROFINET cable - detail 8
Euroconnection AS-PLPE005/69MM - product details
Euroconnection / PROFINET RJ45 patch cable / RJ45

Technical specifications for AS-PLPE005/69MM

ManufacturerEuroconnection
Order numberAS-PLPE005/69MM
Cable assembly length0.5 m
UsesConnecting PROFINET devices via RJ45 ports
Connector on side ARJ45
Connector on side BRJ45
DesignA ready-made cable with connectors fitted
Cable colourGreen
Sales unitPiece
Cable installationDepending on the specific route and mechanical stress
Continuous movement and torsionMust be confirmed for the exact cable assembly
PoE power supplyMust be confirmed for the exact cable assembly and devices
Water resistanceVerify for the complete cable assembly and connection
Contents of the delivery1 cable of the selected length, with RJ45 connectors at both ends
Delivery

Contents of the delivery

1 ready-made AS-PLPE005/69MM cable, 0.5 m long, with RJ45 connectors at both ends.

Practical questions

Selection and correct use

What length will I get with this code?

Order number AS-PLPE005/69MM refers to a 0.5 m cable with an RJ45 connector at both ends. For a different length, please select a separate item or send an enquiry.

Is it ordered by the metre or by the piece?

This item refers to 1 ready-made cable, 0.5 m in length. Enter the number of cables in the ‘Quantity’ field. We also offer lengths of 0.5 m, 1 m, 2 m, 3 m, 5 m, 7 m and 10 m as individual items. We will confirm any other lengths and the minimum order quantity for custom assemblies in our quotation.

Do the connectors need to be fitted?

No. The cable is supplied with RJ45 connectors at both ends. Check the space around the ports before connection and route the cable without strain on the connectors.

Is it suitable for a drag chain?

The flexible design makes routing easier. For continuous movement in a drag chain, torsion or a robotic application, the exact complete assembly, bend radius and operating conditions must be confirmed. Send the travel length, speed, temperature and required number of cycles.

Can it be connected to any RJ45 port?

There is an RJ45 connector at both ends. Before ordering, check the available space around the ports, the space required to secure the connector, and the device’s cabling requirements. The RJ45 connector itself does not guarantee a specific data transfer rate, PoE power supply or suitability for wet environments.

PROFINET Technical Support

Why order from FOXON

We can help you select the cabling and accessories to suit your specific PROFINET installation. Please send us a routing diagram, a list of devices and a description of the environment.

Selection for a specific route

We will review the cable routing, movement, temperature and requirements of the installation.

Cable and connectors

We will check the compatibility of the conductors, the shielding, the dimensions and the method of installation.

Preparing the cabling

We’ll help you choose the right tool and procedure for your specific connector.

PROFINET Diagnostics

We can help with cable testing and identifying the causes of communication failures.

Czech technical support

We will discuss the topology, environment and cable replacement procedure with regard to the machine operating conditions.

Delivery Confirmation

Before placing an order, we will confirm the specifications, quantity and delivery date.

Correct cablingCable routing, movement and construction
Fitting connectorsCable preparation and shield connection
Network measurementCabling and communication quality
Documentation

Technical data sheets and installation documentation

In the ‘Downloads’ tab, you will find the Euroconnection cable assembly catalogue, featuring a selection of PROFINET / EtherCAT configurations. We will confirm the specific version for a demanding motion application based on the exact order number.

Open downloads
Euroconnection

Technical specifications of the AS-PLPE005/69MM

PROFINET RJ45 to RJ45 patch cable

Identification of the assembly

ManufacturerEuroconnection
Order numberAS-PLPE005/69MM
Cable assembly length0.5 m
UsesConnecting PROFINET devices via RJ45 ports
Connector on side ARJ45
Connector on side BRJ45
DesignA ready-made cable with connectors fitted
Cable colourGreen
Sales unitPiece

Selection by application

Cable installationDepending on the specific route and mechanical stress
Continuous movement and torsionMust be confirmed for the exact cable assembly
PoE power supplyMust be confirmed for the exact cable assembly and devices
Water resistanceVerify for the complete cable assembly and connection
Contents of the delivery1 cable of the selected length, with RJ45 connectors at both ends
Connection

Compatibility and installation

There is an RJ45 connector at both ends. Before ordering, check the available space around the ports, the space required to secure the connector, and the device’s cabling requirements. The RJ45 connector itself does not guarantee a specific data transfer rate, PoE power supply or suitability for wet environments.

Route the cable in accordance with the specified bending radius and clearance from power lines. Ensure strain relief, proper shielding contact and protection against damage. After installation, check the wiring connections and the quality of the completed transmission route.

Installation proposal

Use and delivery

The flexible design makes routing easier. For continuous movement in a drag chain, torsion or a robotic application, the exact complete assembly, bend radius and operating conditions must be confirmed. Send the travel length, speed, temperature and required number of cycles.

This item refers to 1 ready-made cable, 0.5 m in length. Enter the number of cables in the ‘Quantity’ field. We also offer lengths of 0.5 m, 1 m, 2 m, 3 m, 5 m, 7 m and 10 m as individual items. We will confirm any other lengths and the minimum order quantity for custom assemblies in our quotation.

FAQ - AS-PLPE005/69MM

Choosing the right model

What length will I get with this code?

Order number AS-PLPE005/69MM refers to a 0.5 m cable with an RJ45 connector at both ends. For a different length, please select a separate item or send an enquiry.

Is it ordered by the metre or by the piece?

This item refers to 1 ready-made cable, 0.5 m in length. Enter the number of cables in the ‘Quantity’ field. We also offer lengths of 0.5 m, 1 m, 2 m, 3 m, 5 m, 7 m and 10 m as individual items. We will confirm any other lengths and the minimum order quantity for custom assemblies in our quotation.

Do the connectors need to be fitted?

No. The cable is supplied with RJ45 connectors at both ends. Check the space around the ports before connection and route the cable without strain on the connectors.

Installation

Installation and use

Is it suitable for a drag chain?

The flexible design makes routing easier. For continuous movement in a drag chain, torsion or a robotic application, the exact complete assembly, bend radius and operating conditions must be confirmed. Send the travel length, speed, temperature and required number of cycles.

Can it be connected to any RJ45 port?

There is an RJ45 connector at both ends. Before ordering, check the available space around the ports, the space required to secure the connector, and the device’s cabling requirements. The RJ45 connector itself does not guarantee a specific data transfer rate, PoE power supply or suitability for wet environments.

Can I order a different length?

This item refers to 1 ready-made cable, 0.5 m in length. Enter the number of cables in the ‘Quantity’ field. We also offer lengths of 0.5 m, 1 m, 2 m, 3 m, 5 m, 7 m and 10 m as individual items. We will confirm any other lengths and the minimum order quantity for custom assemblies in our quotation.

Does this cable automatically enable PROFINET RT or IRT communication?

The cable itself does not activate the communication mode. The decisive factors are the supported functions of the devices, the network topology and the network configuration. Select the specific cable assembly according to the requirements of the entire transmission path.

Maintenance

Operations and technical consultancy

Is it suitable for Gigabit Ethernet or PoE?

These specifications must be confirmed for the specific cable assembly. Neither the RJ45 connector nor the PROFINET marking guarantees this on its own. To verify this, please provide the model numbers of both devices to be connected.

Will replacing the cable sort out all the network outages?

Replacing the cable will help if it is damaged or unsuitable. However, the problem may also be caused by the connectors, shielding, power supply or device settings. In the event of repeated outages, we recommend measuring the cable run and assessing the communication.

What information should I provide to help choose the right configuration?

Please provide the required length, type of equipment, a photograph of the ports, the mounting method and the environmental conditions. If the equipment is subject to movement, please also specify the mechanical stresses involved. We will confirm the appropriate design and delivery date.
