RJ45 PROFINET Connector 100Mbit/s, Fast Connect cable 180°
- PROFINET, PROFIBUS, CAN
- PROFINET
- Connectors PROFINET
- RJ45 PROFINET Connector 100Mbit/s, Fast Connect cable 180°

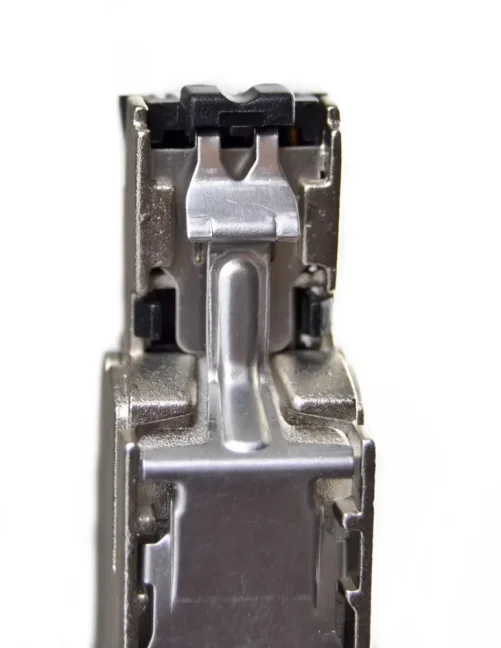

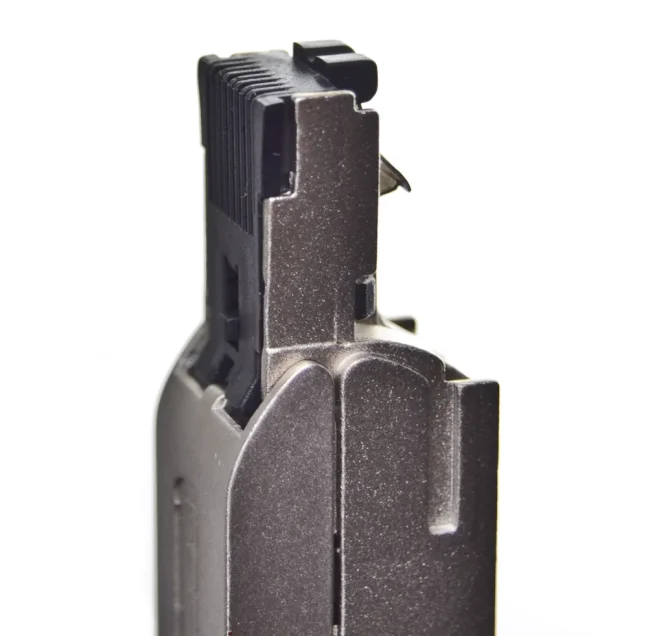

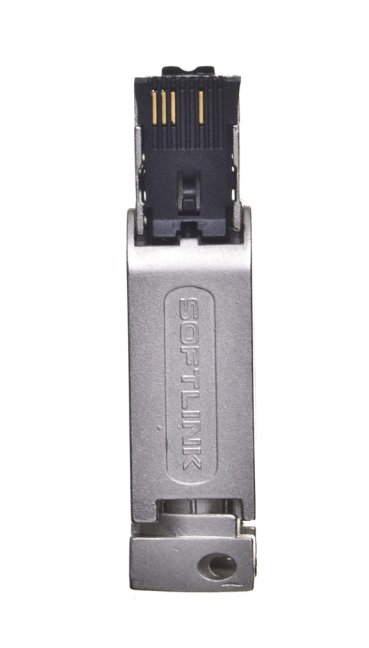

RJ45 PROFINET Connector 100Mbit/s, Fast Connect cable 180°
A rugged, compact PROFINET connector with a 180-degree cable outlet, supporting fast, easy cable installation via the FastConnect piercing system. Package = 1pc More
Manufacturer: SOFTLINK Code: 300-901-1BB10
12,60 EUR excl. VAT (15,25 EUR incl. VAT)
Quantity discount
Units
Discount
Price without VAT
0 - 24
0%
12,60
25 - 49
4%
12,10
50 - 74
7%
11,72
75 - 99
10%
11,34
100 and more
12%
11,09
A replacement for SIEMENS connector 6GK1901-1BB10-2AA0 (6GK1901-1BB10-2AB0, 6GK1901-1BB10-2AE0)

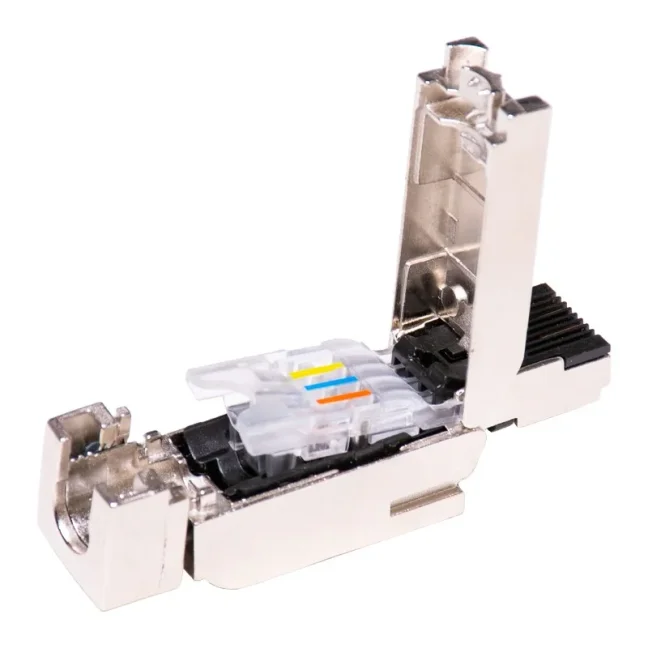

The rugged, metal enclosure ensures high durability and resistance to electromagnetic interference. The connector supports fast, easy cable installation via the FastConnect piercing system. You just strip the outer sheath of the cable and insert the four wires into the plastic tabs/interlock in the connector. When pressed down, the tabs/interlock will pierce the wires' sheaths and hold the wires in place. To connect the shield, you need to strip the cable's sheath – sufficiently and properly. By closing the connector, you connect the cable's shield, and the connector is ready to be plugged in. The connector can be used for any 100Mbit Ethernet networks.
- Ideal for PROFINET and Industrial Ethernet
- 100 Mbit/s transfer rate
- RJ45 connector
- FastConnect connection system for easy installation of wires
- Position of individual wires indicated by colour
- Rugged, metal housing and IP20 seal rating
- 180° cable outlet
