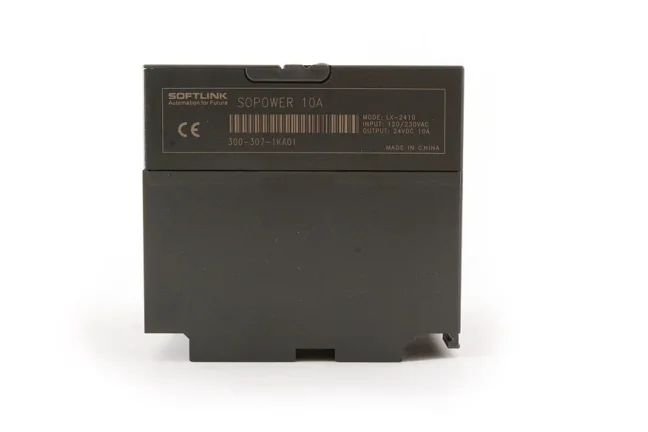

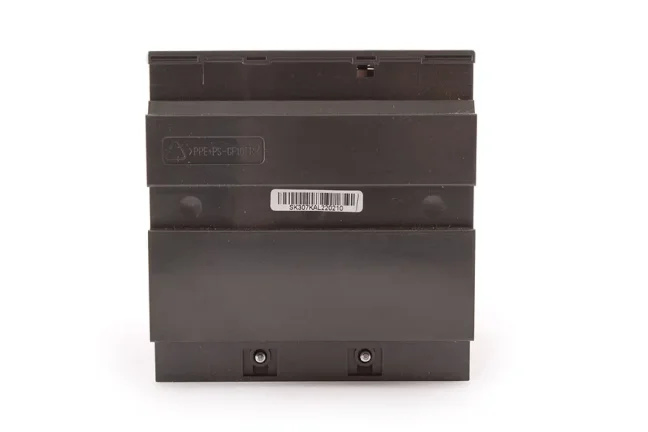

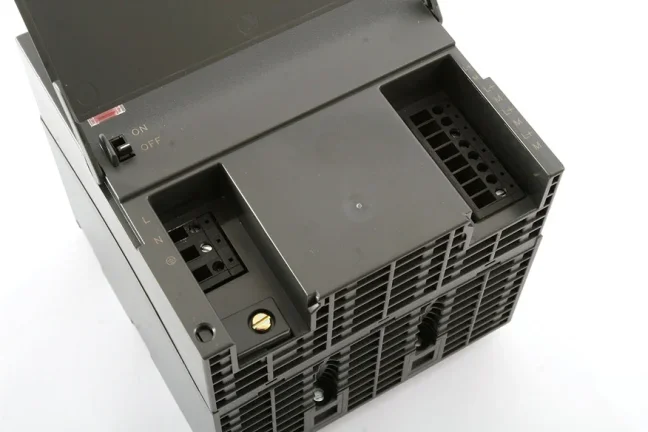

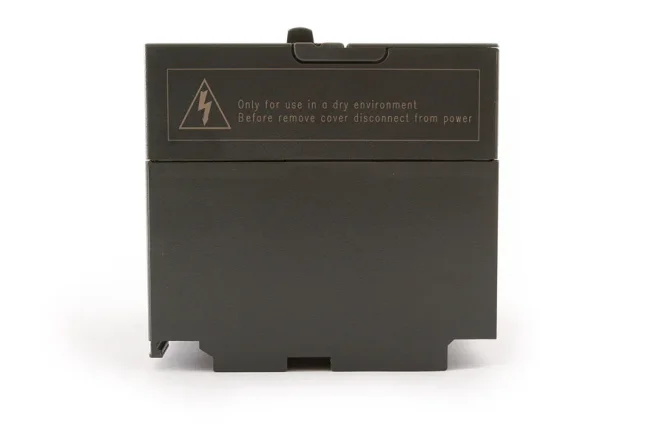

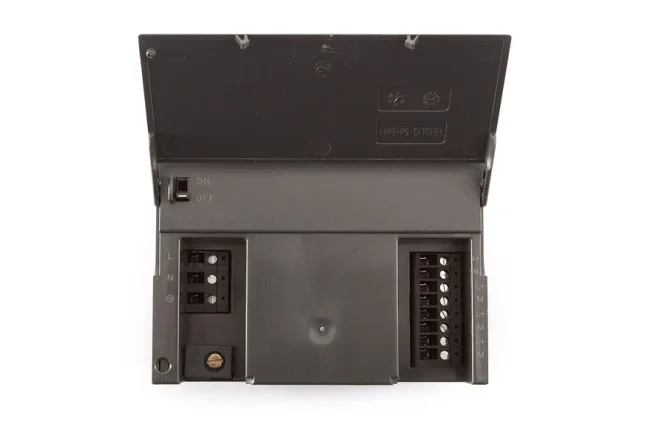

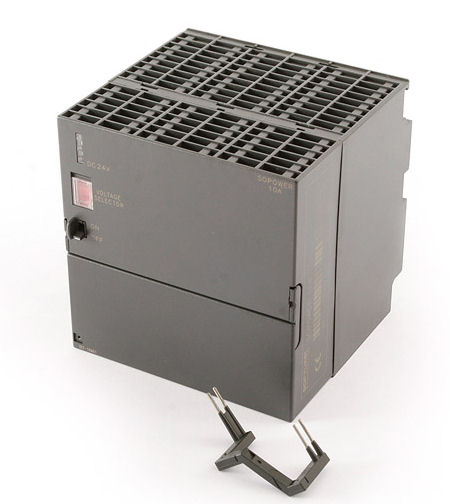

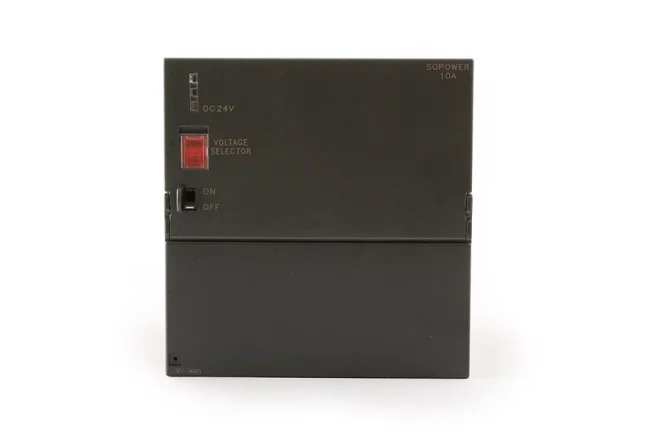

Power supply 24VDC/10A/240W for SIMATIC S7-300, compatible with 6ES7307-1KA01-0AA0
Save 50% from original part
FOXON PLUS
Power supply 10A, 240W for PLC 300, compatible replacement for SIEMENS 6ES7307-1KA01-0AA0 and VIPA 307-1KA00. More
Code: 300-307-1KA01
154 EUR excl. VAT (186,34 EUR Incl. VAT)
Power supply 10A, 240W for PLC 300, compatible replacement for SIEMENS 6ES7307-1KA01-0AA0 and VIPA 307-1KA00. More
Code: 300-307-1KA01
| Order NO. | 300 307-1KA01 |
| Rated Input Voltage | 120-230V AC |
| Rated Intput Frequency | 50/60Hz |
| Rated Input Current | 4.1A/2.1 A |
| Rated Output Voltage | 24V Dc±3% |
| Rated Outtput Current | 10A |
| Residual Ripple | <150mVpp |
| Surge Current | <55A，<3ms |
| Efficiency at rated output | About 90% |
| Output over-voltage protection | Additional control circuit, approximately 30V shutdown, auto-restart |
| Current limit | 11-13A |
| Short-circuit Protection | Electronic shutdown, auto-restart |
| Isolated main stage / secondary | Isolated, SELV output voltage meets EN60.50 |
| CE certification | Yes |
| Protect Level | IP20 |
| Ambient Temperature Range | 0-60℃，Natural ventilation |
| Dimension（L×W×H）mm | 120×125×120 |
| Weight | About 1100g |
| Installation | 300 System Rail |
