Monitor for Siemens WS400-22

FOXON PLUS

8,4" TFT display as a replacement for the original 9" CRT monitor in Siemens WS400-22 systems. Replaces 9" CRT monitor 6FM1496-2DA22 and 6FM1422-1AA00. More

Code: LCD84-0088

1 485 EUR excl. VAT (1 796,85 EUR Incl. VAT)

Recycling fee 0,51 EUR included in the price.

Delivery in 1-2 weeks

pcs

(0 pcs In stock)

Get a quote

8,4" TFT display as a replacement for the original 9" CRT monitor in Siemens WS400-22 systems. Replaces 9" CRT monitor 6FM1496-2DA22 and 6FM1422-1AA00. More

Code: LCD84-0088

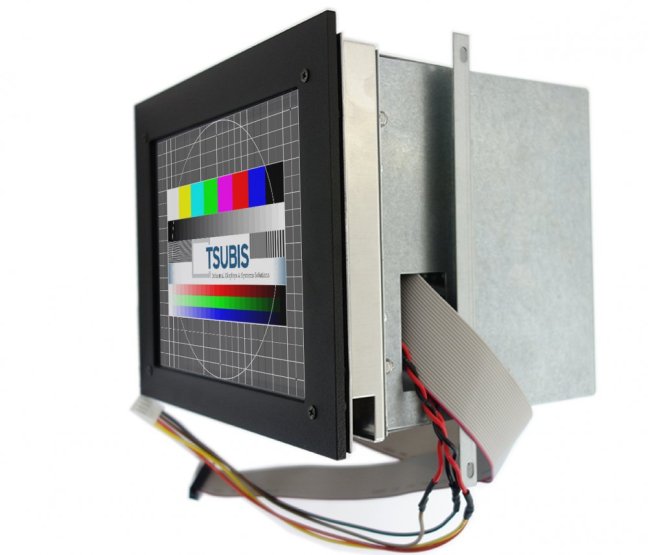

This 8,4″ TFT monitor replaces monochrome 9″ CRT monitors in the Siemens Simatic control WS400-22. In this control the graphic card WF470 was used. The monitor is supplied including a double front panel and in turn integrated into the existing control unit.
Both electrically and mechanically the TFT monitor was adapted to the original Siemens control. An exchange is therefore simple and uncomplicated with a few simple steps possible ("Plug & Play" principle).

8.4" TFT LCD replacement monitor for 9" CRT monitors (monochrome).

Control manufacturer: SIEMENS
Controls: WS400-22 (with graphic card WF 470, 6FM1470-4AA25)
Installation variant: front panel incl. protective screen
Video connection: 1x BNC (6 x BNC available for possible loop-through operation)
dimensions front panel (WxH): 220×173 mm
Power supply: 85-240V AC
Siemens monitor codes:
- 6FM1422-1AA00
- 6FM1496-2DA22

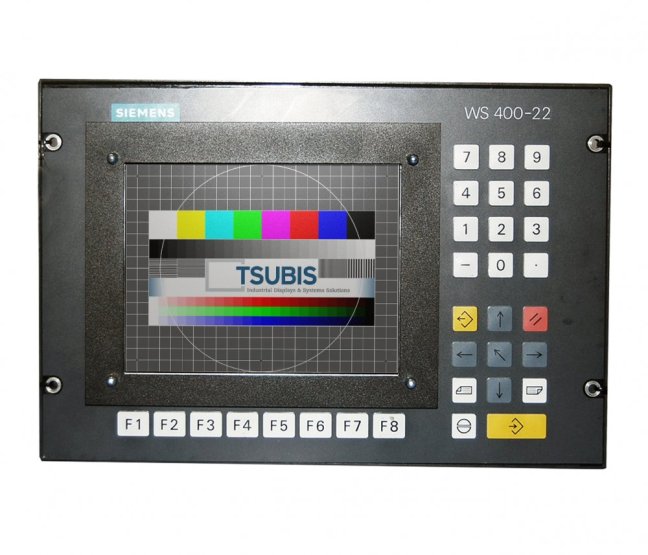

Siemens Simatic control panel WS400/22:
- 6FM1422-1BA02
- 6FM1422-1BA00
- 6FM1422-1AA02
- 6FM1422-1AA00
