Media converter RS232 / RS485 <=> fiber - Kyland: 1x 100Base-FX single mode fiber port, SC connector, 1310 nm, 40 km, 1x RS485, 2x RS232 (RS232 ch2 and RS485 ch3 multiplexed)
Industrial media converter from RS232 / 485 to optical, power supply 100–240 VAC / 220 VDC, metal chassis, IP30 protection. More
Code: KOM200-1S-SC40-485/232A-H1
Industrial media converter from RS232 / 485 to optical, power supply 100–240 VAC / 220 VDC, metal chassis, IP30 protection. More
Code: KOM200-1S-SC40-485/232A-H1
Options 4
| Kyland | Code | Availability | Price excl. VAT | |
|---|---|---|---|---|
| 1x 100Base-FX single mode fiber port, SC connector, 1310 nm, 40 km, 1x RS485, 2x RS232 (RS232 ch2 and RS485 ch3 multiplexed) | KOM200-1S-SC40-485/232A-H1 | Delivery in 8-9 weeks |
147 EUR
|
|
| 1x 100Base-FX multi mode fiber port, SC connector, 1310 nm, 5 km, 1x RS485, 2x RS232 | KOM200-1M-SC05-485/232-H1 | Delivery in 8-9 weeks |
147 EUR
|
|
| 1x 100Base-FX single mode fiber port, SC connector, 1310 nm, 40 km, 1x RS485, 2x RS232 | KOM200-1S-SC40-485/232-H1 | Delivery in 8-9 weeks |
147 EUR
|
|
| Accessories – panel for mounting up to 12 KOM200 units in a rack | KOMFrm | Delivery in 8-9 weeks |
35 EUR
|
Media converter RS232 / RS485 <=> fiber

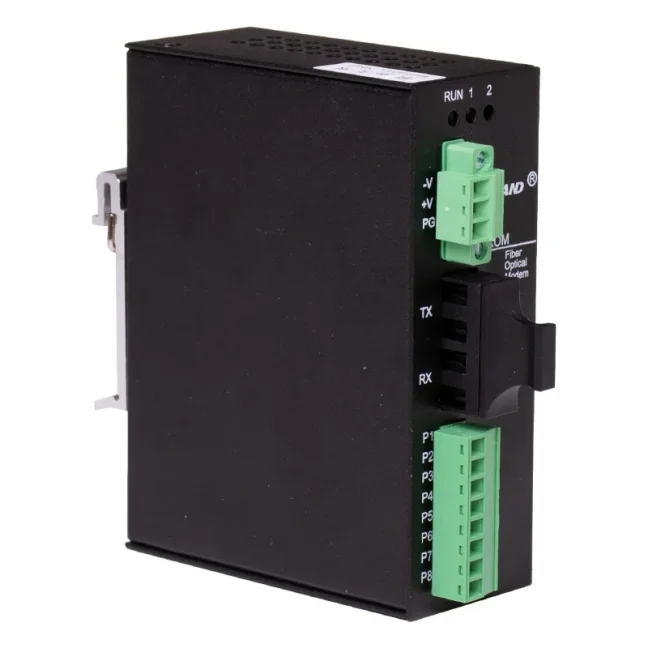

The KOM200 provides conversion from RS232 and RS485 buses to optical media. It supports 1 fiber port and up to 3 serial ports. The device operates with 100–240 VAC / 220 VDC power, supports DIN-Rail mounting, and has an IP30 protection rating. It is specifically designed for harsh industrial environments with special requirements for electromagnetic resistance.
Plug and Play
The advantage of Kyland’s unmanaged converters is the Plug and Play method, which ensures immediate communication operation without the need for tuning or configuration.
Hot Plugging
If it is not possible to disconnect the communication, it is ideal to use devices that support hot plugging. This feature allows the device to be inserted into the network without interrupting the ongoing communication.
Variants of media converter KOM200
| Order code: | Description: |
|
KOM200-1S-SC40-485/232A-H1 |
1x 100Base-FX single mode fiber port, SC connector, 1310 nm, 40 km, 1x RS485 serial port, 2x RS232 serial port, the 2nd channel of RS232 and the 3rd channel of RS485 are multiplexing, 100–240 VAC / 220 VDC (85–264 VAC / 120–300 VDC) single power supply |
| KOM200-1M-SC05-485/232-H1 |
1x 100Base-FX multi mode fiber port, SC connector, 1310 nm, 5 km, 1x RS485 serial port, 2x RS232 serial port, 100–240 VAC / 220 VDC (85–264 VAC / 120–300 VDC) single power supply |
| KOM200-1S-SC40-485/232-H1 | 1x 100Base-FX single mode fiber port, SC connector, 1310 nm, 40 km, 1x RS485 serial port, 2x RS232 serial port, 100–240 VAC / 220 VDC (85–264 VAC / 120–300 VDC) single power supply |
| Accessories: | |
| KOMFrm | KOM Panel for rack mounting (482,6 x 132 x 128,5 mm), can be installed with max 12 KOM300F or KOM200. |
|
Category |
Parameter |
Value / Description |
|
Standard |
Supported Interface |
RS232, RS485 |
|
Interface – Fiber Ports |
Port Type |
SM/MM fiber |
|
Connector |
SC |
|
|
Interface – Serial Ports |
Number of Ports |
485/232: 1x RS485, 2x RS232 |
|
Electrical Characteristics |
Compliant with RS232/RS485 standards; RS485 supports 32–128 nodes |
|
|
Physical Interface |
8-pin terminal block, 3.81 mm spacing |
|
|
Bit Error Rate (BER) |
≤ 10⁻¹⁰ |
|
|
Asynchronous Rate |
RS232: 50–115200 bps |
|
|
Transmission Distance |
RS232: 15 m |
|
|

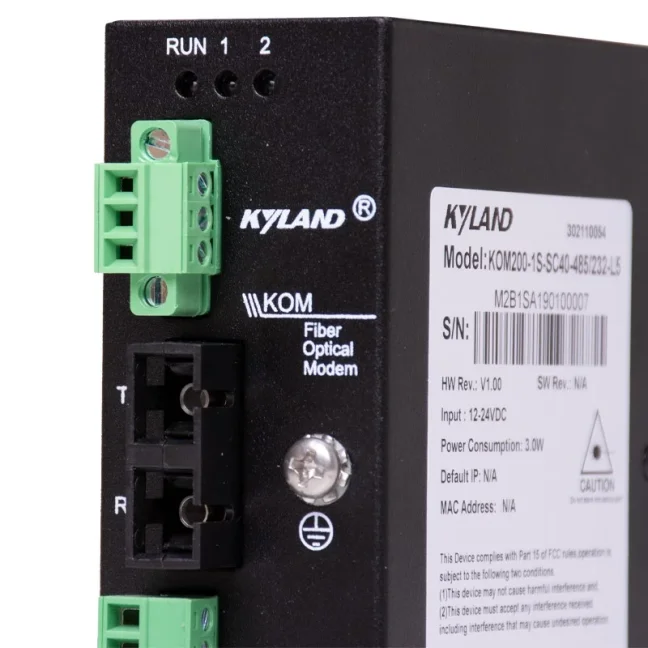

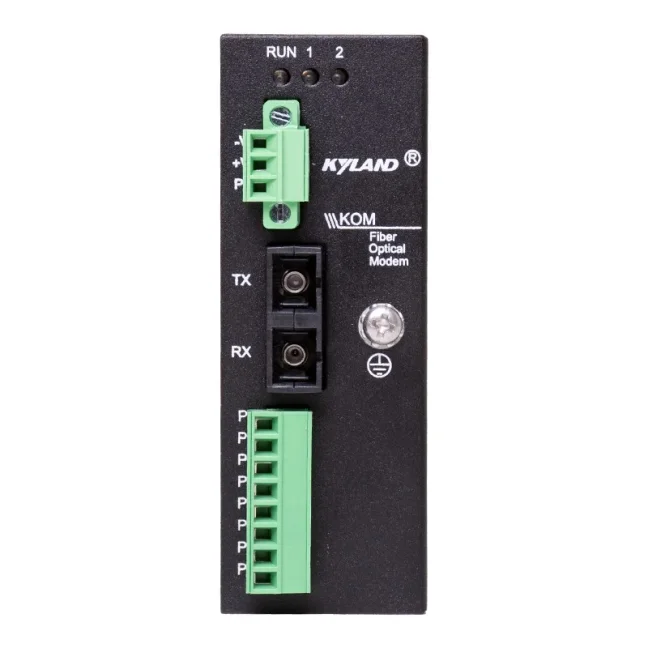

LED Indicators |
Running LED |
Run |
|
Interface LED |
Link/ACT (Fiber Ports), 1, 2 (Serial Ports) |
|
|
Power |
Input |
100–240 VAC / 220 VDC (85–264 VAC / 120–300 VDC) |
|
Terminal |
3-pin, 3.81 mm spacing, plug-in terminal block |
|
|
Power Consumption |
< 3 W |
|
|
Protection |
Overload and reverse connection supported |
|
|
Physical Characteristics |
Housing |
Metal |
|
Heat Dissipation |
Natural cooling (fanless) |
|
|
Protection Class |
IP30 |
|
|

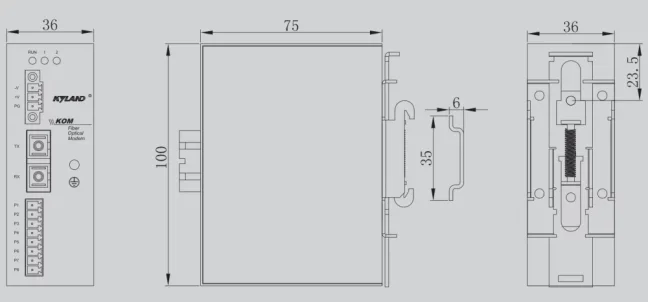

Dimensions (WxHxD) |
36 x 100 x 75 mm |
|
|
Weight |
0.3 kg |
|
|

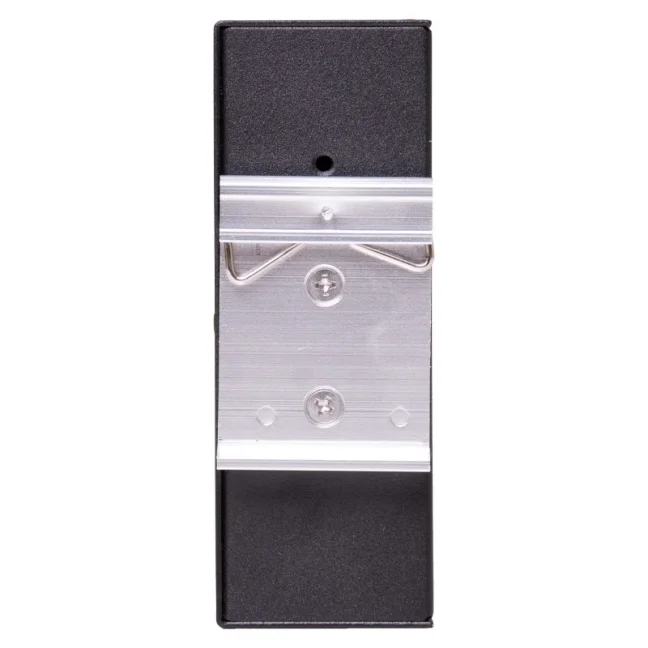

Mounting |
DIN-Rail |
|
|
Environmental Limits |
Operating Temperature |
-40 °C to +85 °C |
|
Storage Temperature |
-40 °C to +85 °C |
|
|
Ambient Relative Humidity |
5–95 % (non-condensing) |
|
|
Quality Assurance |
MTBF |
1,162,867 hours |
|
Warranty |
5 years |
|
|
Industrial Standards – EMI |
FCC CFR47 Part 15, EN55022/CISPR22, Class A |
|
|
Industrial Standards – EMS |
ESD |
IEC61000-4-2 ±6 kV (contact), ±8 kV (air) |
|
RS |
IEC61000-4-3 10 V/m (80 MHz–1 GHz) |
|
|
EFT |
IEC61000-4-4 Power Port: ±2 kV; Data Port: ±1 kV |
|
|
Surge |
IEC61000-4-5 Power Port: ±1 kV/DM, ±2 kV/CM; Data Port: ±1 kV |
|
|
CS |
IEC61000-4-6 3 V (10–150 kHz); 10 V (150 kHz–80 MHz) |
|
|
Mechanical Standards |
Vibration |
IEC60068-2-6 |
|
Shock |
IEC60068-2-27 |
|
|
Free Fall |
IEC60068-2-32 |
