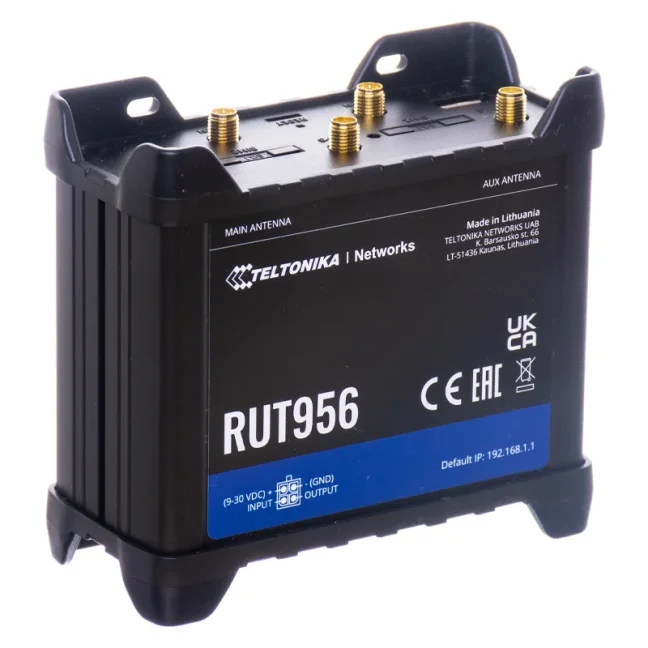

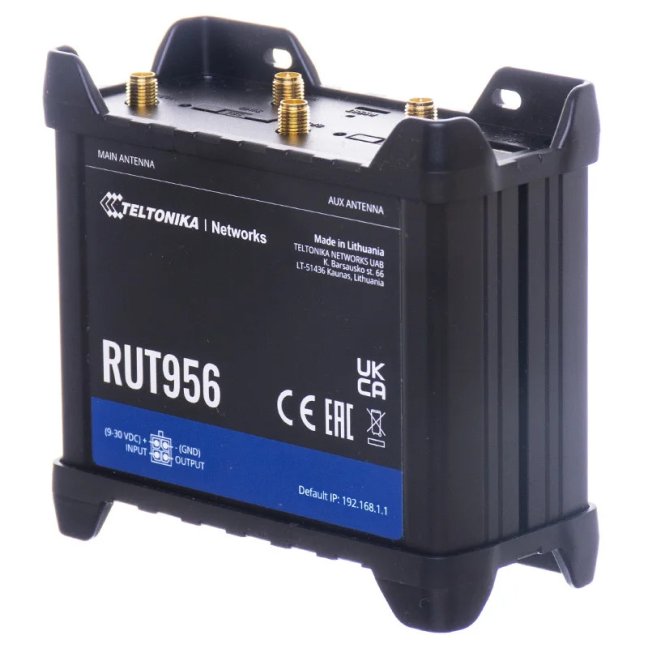

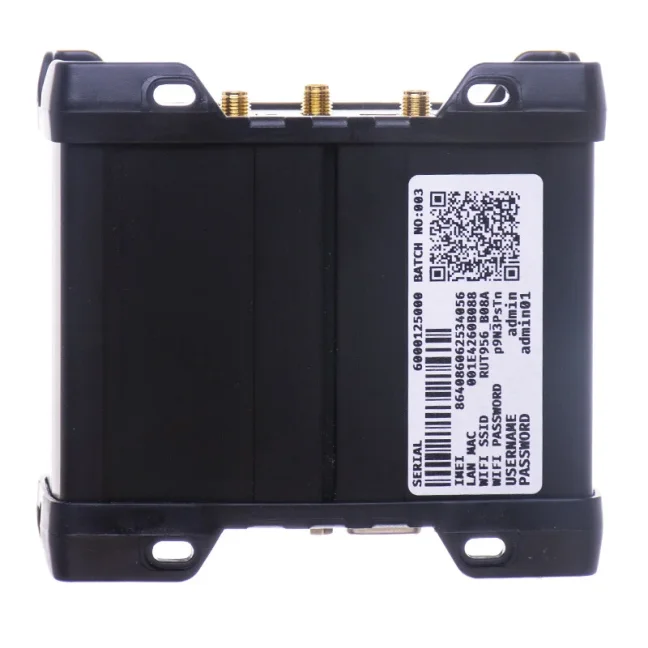

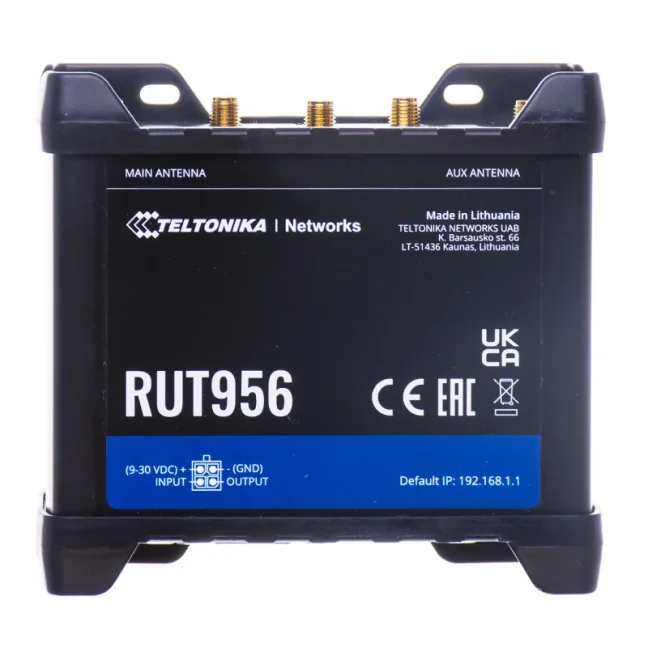

Teltonika RUT956 - LTE RS232/ RS485 Router
Teltonika RUT956 - LTE RS232/ RS485 Router
RUT956 is an industrial router that combines cellular, Wi-Fi, and wired connectivity options with automatic WAN failover and GNSS capabilities. Serial communication interfaces enable integrating more varied devices into the solution ecosystem, while I/O and advanced RutOS software facilitate equipment control, automation, and event notifications. More
Manufacturer: Teltonika Code: RUT956
RUT956 is an industrial router that combines cellular, Wi-Fi, and wired connectivity options with automatic WAN failover and GNSS capabilities. Serial communication interfaces enable integrating more varied devices into the solution ecosystem, while I/O and advanced RutOS software facilitate equipment control, automation, and event notifications. More
Manufacturer: Teltonika Code: RUT956
When using it for the first time, we recommend checking the current FW version and upgrading to the latest version if necessary.
RUT955 is a highly reliable and secure LTE router with I/O, GPS and RS232/RS485 for professional use. The router provides high performance and mission-critical mobile communication and GPS location capabilities. The RUT955 is equipped with two SIM card slots in case of connection failure. External antenna connectors allow you to connect 3G/4G/GPS or WiFi antennas and easily find the best signal location.
The RUT955 4G router allows you to set up a constant 4G/LTE or 3G/UMTS internet connection with up to 100 Mbps downlink and 50 Mbps uplink in 4G mode and 42 Mbps download, 5.76 Mbps upload (DC-HSPA + standard) in 3G mode and wireless/wireless network setup to share LTE or UMTS connection with multiple clients.
TELTONIKA RUT955 has two SIM card slots. You can use two different providers to create a redundant 4G or 3G connection with Failover and Fallback features.
The built-in WiFi access point allows you to create your own wireless network to easily connect a wireless client to the RUT955. The WiFi AP offers transfer speeds up to 300 Mbps (Wireless N standard) with the latest encryption and security standards such as WPA/WPA-2. Access point (AP) mode can be operated simultaneously with the client (STA) function. Connecting wired devices or integrating into an existing wired network is no problem either. For this purpose, the RUT955 has an integrated 3-port 10/100 Mbps Ethernet switch.
If no 4G or 3G signal is available, you can alternatively use the RUT955 in DSL router or WiFi client mode. The built-in Fallback feature helps you stay online all the time.
In addition, the RUT955 industrial router has two external 4G antennas, one external GPS antenna and two external WiFi antennas.
The user-friendly web interface allows all users to set up the router conveniently.
The rugged aluminum housing, solid engineering and firmware ensure consistent performance and durability of the TELTONIKA RUT955.
Now with a 24-month extended warranty.
-
Mobile module
4G (LTE) – Cat 4 up to 150 Mbps, 3G – Up to 42 Mbps, 2G – Up to 236.8 kbps
-
SIM switch
2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection
-
Status
Signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, Bytes sent/received, connected band, IMSI, ICCID
-
SMS
SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP
-
USSD
Supports sending and reading Unstructured Supplementary Service Data messages
-
Black/White list
Operator black/white list
-
Multiple PDN
Possibility to use different PDNs for multiple network access and services
-
Band management
Band lock, Used band status display
-
APN
Auto APN
-
Bridge
Direct connection (bridge) between mobile ISP and device on LAN
-
Passthrough
Router assigns its mobile WAN IP address to another device on LAN
-
Wireless mode
IEEE 802.11b/g/n, Access Point (AP), Station (STA)
-
Wi-Fi security
WPA2-Enterprise - PEAP, WPA2-PSK, WEP, WPA-EAP, WPA-PSK; AES-CCMP, TKIP, Auto Cipher modes, client separation
-
SSID/ESSID
SSID stealth mode and access control based on MAC address
-
Wi-Fi users
Up to 100 simultaneous connections
-
Wireless Hotspot
Captive portal (Hotspot), internal/external Radius server, SMS authorization, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customizable themes
-
Wireless Connectivity Features
Fast roaming (802.11r), Relayd
-
WAN
1 x WAN port 10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX
-
LAN
3 x LAN ports, 10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX
-
Routing
Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing
-
Network protocols
TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SMNP, MQTT, Wake On Lan (WOL)
-
VoIP passthrough support
H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
-
Connection monitoring
Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection
-
Firewall
Port forward, traffic rules, custom rules
-
DHCP
Static and dynamic IP allocation, DHCP Relay
-
QoS / Smart Queue Management (SQM)
Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e
-
DDNS
Supported >25 service providers, others can be configured manually
-
Network backup
Wi-Fi WAN, Mobile, VRRP, Wired options, each of which can be used as an automatic Failover
-
Load balancing
Balance Internet traffic over multiple WAN connections
-
SSHFS
Possibility to mount remote file system via SSH protocol
-
Authentication
Pre-shared key, digital certificates, X.509 certificates, TACACS+, Radius, IP & Login attempts block
-
Firewall
Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T
-
Attack prevention
DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
-
VLAN
Port and tag-based VLAN separation
-
Mobile quota control
Mobile data limit, customizable period, start time, warning limit, phone number
-
WEB filter
Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only
-
Access control
Flexible access control of TCP, UDP, ICMP packets, MAC address filter
-
OpenVPN
Multiple clients and a server can run simultaneously, 27 encryption methods
-
OpenVPN Encryption
DES-CBC 64, RC2-CBC 128, DES-EDE-CBC 128, DES-EDE3-CBC 192, DESX-CBC 192,
BF-CBC 128, RC2-40-CBC 40, CAST5-CBC 128, RC2-64-CBC 64, AES-128-CBC 128, AES-128-CFB 128, AES-128-CFB1 128, AES-128-CFB8 128, AES-128-OFB 128, AES-128-GCM 128, AES-192-CFB 192, AES-192-CFB1 192, AES-192-CFB8 192, AES-192-OFB 192, AES-192-CBC 192, AES-192-GCM 192, AES-256-GCM 256, AES-256-CFB 256, AES-256-CFB1 256, AES-256-CFB8 256, AES-256-OFB 256, AES-256-CBC 256
-
IPsec
IKEv1, IKEv2, with 14 encryption methods for IPsec (3DES, DES, AES128, AES192, AES256, AES128GCM8, AES192GCM8, AES256GCM8, AES128GCM12, AES192GCM12, AES256GCM12, AES128GCM16, AES192GCM16, AES256GCM16)
-
GRE
GRE tunnel, GRE tunnel over IPsec support
-
PPTP, L2TP
Client/Server instances can run simultaneously, L2TPv3, L2TP over IPsec support
-
Stunnel
Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code
-
DMVPN
Method of building scalable IPsec VPNs
-
SSTP
SSTP client instance support
-
ZeroTier
ZeroTier VPN client support
-
WireGuard
WireGuard VPN client and server support
-
Tinc
Tinc offers encryption, authentication and compression in it's tunnels. Client and server support.
-
ID range
Respond to one ID in range [1;255] or any
-
Allow Remote Access
Allow access through WAN
-
Custom registers
MODBUS TCP custom register block requests, which read/write to a file inside the router, and can be used to extend MODBUS TCP Slave functionality
-
Supported functions
01, 02, 03, 04, 05, 06, 15, 16
-
Supported data formats
8-bit: INT, UINT; 16-bit: INT, UINT (MSB or LSB first); 32-bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC)
-
Supported baud rates
From 300 to 115200
-
Supported functions
01, 02, 03, 04, 05, 06, 15, 16
-
Supported data formats
8-bit: INT, UINT; 16-bit: INT, UINT (MSB or LSB first); 32-bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII
-
Number of data bits
From 5 to 8
-
Number of stop bits
1 or 2
-
Parity
None, Even, Odd
-
Flow
None, RTS/CTS, Xon/Xoff
-
Duplex
Full duplex
-
Supported baud rates
From 300 to 230400
-
Supported functions
01, 02, 03, 04, 05, 06, 15, 16
-
Supported data formats
8-bit: INT, UINT; 16-bit: INT, UINT (MSB or LSB first); 32-bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII
-
Number of data bits
8
-
Number of stop bits
1
-
Parity
None, Even, Odd
-
Flow
None, Xon/Xoff
-
Duplex
Half duplex
-
Protocol
HTTP(S), MQTT, Azure MQTT, Kinesis
-
MQTT Gateway
Allows sending commands and receiving data from MODBUS Master through MQTT broker
-
Supported modes
TCP Master, DNP3 Outstation, RTU Master
-
WEB UI
HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, event log, system log, kernel log
-
FOTA
Firmware update from server, automatic notification
-
SSH
SSH (v1, v2)
-
SMS
SMS status, SMS configuration, send/read SMS via HTTP POST/GET
-
Call
Reboot, Status, Mobile data on/off, Output on/off, answer/hang-up with a timer, Wi-Fi on/off
-
TR-069
OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem
-
MQTT
MQTT Broker, MQTT publisher
-
SNMP
SNMP (v1, v2, v3), SNMP Trap
-
JSON-RPC
Management API over HTTP/HTTPS
-
MODBUS
MODBUS TCP status/control
-
RMS
Teltonika Remote Management System (RMS)
-
Cloud of Things
Allows monitoring of: Device data, Mobile data, Network info, Availability
-
ThingWorx
Allows monitoring of: WAN Type, WAN IP, Mobile Operator Name, Mobile Signal Strength, Mobile Network Type
-
Cumulocity
Allows monitoring of: Device Model, Revision and Serial Number, WAN Type and IP, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength
-
Azure IoT Hub
Can send device IP, Number of bytes send/received, Temperature, PIN count to Azure IoT Hub server, Mobile connection state, Network link state, IMEI, ICCID, Model, Manufacturer, Serial, Revision, IMSI, SIM State, PIN state, GSM signal, WCDMA RSCP, WCDMA EC/IO, LTE RSRP, LTE SINR, LTE RSRQ, CELL ID, Operator, Operator number, Connection type
-
CPU
Mediatek, 580 MHz, MIPS 24KEc
-
RAM
128 MB, DDR2
-
FLASH storage
16 MB, SPI Flash
-
WEB UI
Update FW from file, check FW on server, configuration profiles, configuration backup
-
FOTA
Update FW
-
RMS
Update FW/configuration for multiple devices at once
-
Keep settings
Update FW without losing current configuration
-
Operating system
RutOS (OpenWrt based Linux OS)
-
Supported languages
Busybox shell, Lua, C, C++, and Python, Java in Package manager
-
Development tools
SDK package with build environment provided
-
GNSS
GPS, GLONASS, BeiDou, Galileo and QZSS
-
Coordinates
GNSS coordinates via WebUI, SMS, TAVL, RMS
-
NMEA
NMEA 0183
-
NTRIP
NTRIP protocol (Networked Transport of RTCM via Internet Protocol)
-
Server software
Supported server software TAVL, RMS
-
Geofencing
Configurable multiple geofence zones
-
RS232
DB9 connector, RS232 (with RTS, CTS flow control)
-
RS485
RS485 Full Duplex (4 wires) and Half Duplex (2 wires). 300-115200 baud rate
-
Serial functions
Console, Serial over IP, Modem, MODBUS gateway, NTRIP Client
-
Data rate
USB 2.0
-
Applications
Samba share, USB-to-serial
-
External devices
Possibility to connect external HDD, flash drive, additional modem, printer, USB-serial adapter
-
Storage formats
FAT, FAT32, exFAT, NTFS (read-only), ext2, ext3, ext4
-
Input
1 x digital dry input (0 - 3 V), 1 x digital galvanically isolated input (0 - 30 V), 1 x analog input (0 - 24 V), 1 x Digital non-isolated input (on 4-pin power connector, 0 - 5 V detected as logic low, 8 - 30 V detected as logic high)
-
Output
1 x digital open collector output (30 V, 250 mA), 1 x SPST relay output (40 V, 4 A), 1 x Digital open collector output (30 V, 300 mA, on 4-pin power connector)
-
Events
Email, RMS, SMS
-
I/O juggler
Allows to set certain I/O conditions to initiate event
-
Connector
4-pin industrial DC power socket
-
Input voltage range
9 – 30 VDC, reverse polarity protection; surge protection >31 VDC 10us max
-
PoE (passive)
Passive PoE over spare pairs. Possibility to power up through LAN port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, LAN1 Port, 9 - 30 VDC
-
Power consumption
< 2 W idle, < 7 W Max
-
Ethernet
4 x RJ45 ports, 10/100 Mbps
-
I/O’s
2 x Inputs and 2 x Outputs on 10-pin industrial socket, 1 x Digital input and 1 x Digital output on 4-pin power connector (available from HW revision 1600)
-
Status LEDs
1 x Bi-color connection status, 5 x Mobile connection strength, 4 x ETH status, 1 x Power
-
SIM
2 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V, external SIM holders, eSIM (Optional)
-
Power
1 x 4-pin power connector
-
Input/output
1 x 10-pin industrial socket for inputs/outputs
-

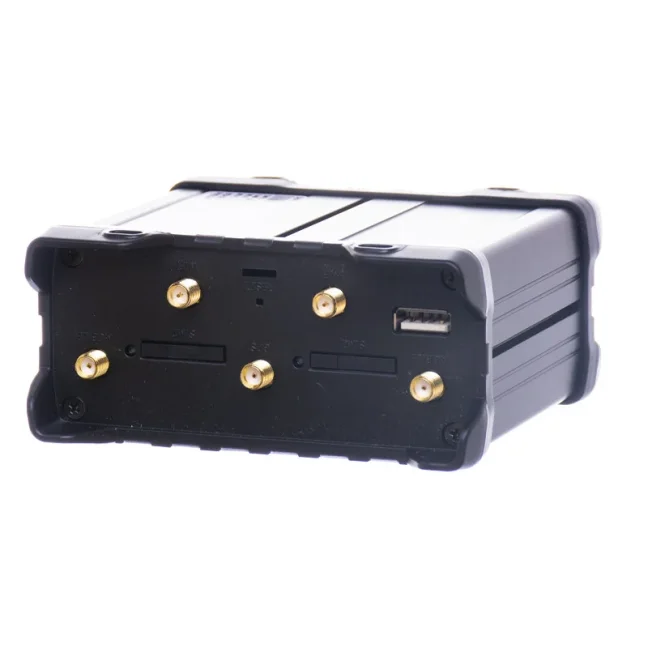

Antennas
2 x SMA for LTE, 2 x RP-SMA for Wi-Fi, 1 x SMA for GNSS
-
USB
1 x USB A port for external devices
-
RS232
1 x DB9 socket
-
RS485
1 x 6-pin industrial socket
-
Reset
Reboot/User default reset/Factory reset button
-
Casing material
Aluminium housing, plastic panels
-
Dimensions (W x H x D)
110 x 50 x 100 mm
-
Weight
287 g
-
Mounting options
DIN rail (can be mounted on two sides), flat surface placement
-
Operating temperature
-40 °C to 75 °C
-
Operating humidity
10% to 90% non-condensing
-
Ingress Protection Rating
IP30
-
Regulatory
CE/RED, UKCA, CB
-
Standards
EN 301 489-1 V2.2.3, EN 301 489-17 V3.2.4, Draft EN 301 489-19 V2.2.0, Final draft EN 301 489-52 V1.2.0, EN 55032:2015+A1:2020, EN 55035:2017+A11:2020, EN 61000-3-3:2013+A1:2019, EN IEC 61000-3-2:2019
-
ESD
EN 61000-4-2:2009
-
RS
EN 61000-4-3:2020
-
EFT
EN 61000-4-4:2012
-
Surge immunity (AC Power Line)
EN 61000-4-5:2014+A1:2017
-
CS
EN 61000-4-6:2009
-
DIP
EN IEC 61000-4-11:2020
-
Standards
EN 300 328 V2.2.2, EN 301 908-1 V13.1.1, EN 301 908-2 V13.1.1, EN 301 908-13 V13.1.1, EN 303 413 V1.1.1
-
Standards
EN IEC 62311:2020
AS/NZS 60950.1:2015
IEC 62368-1:2018,
EN IEC 62368-1:2020+A11:2020
