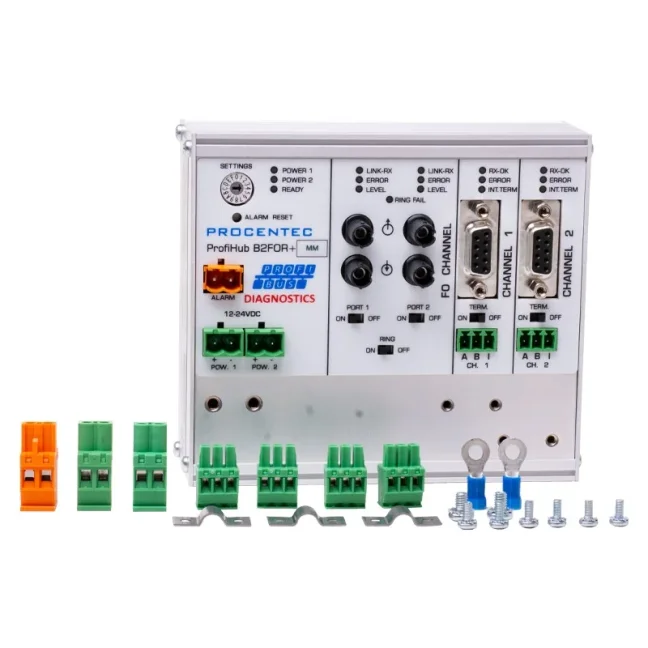

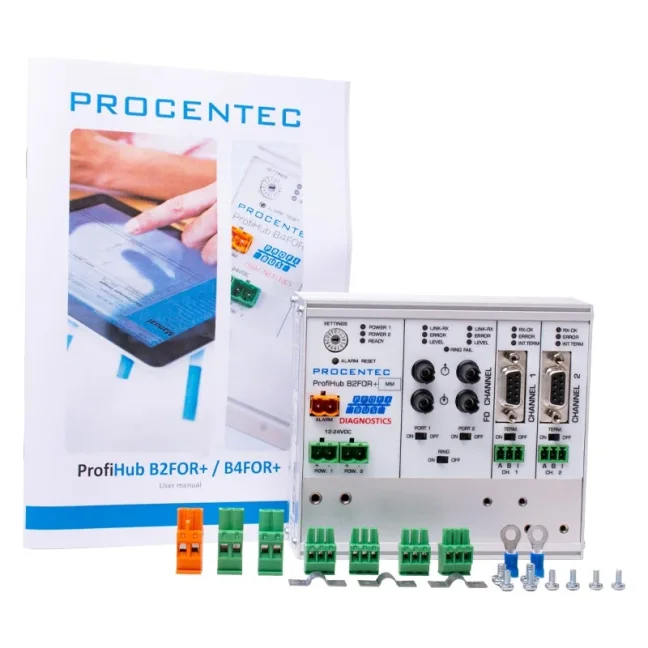

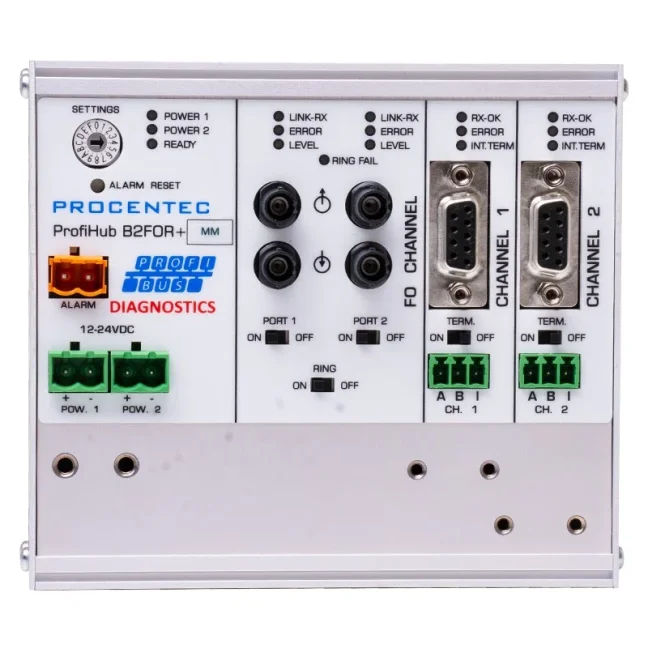

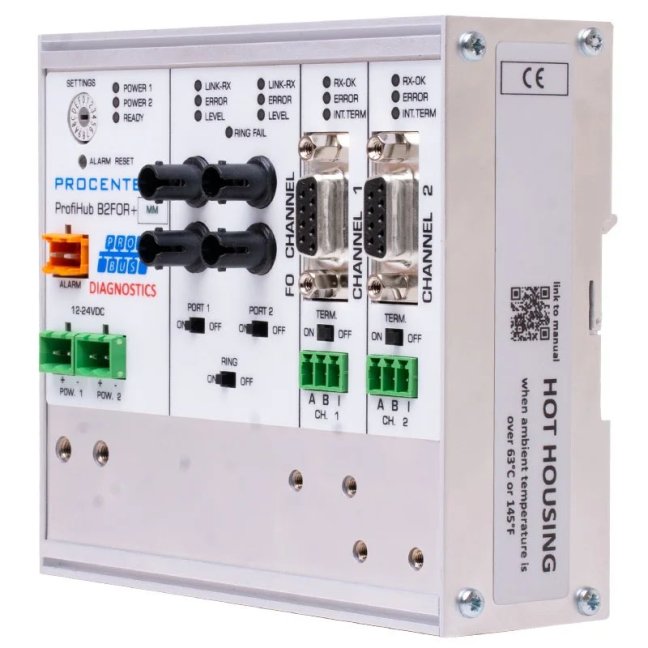

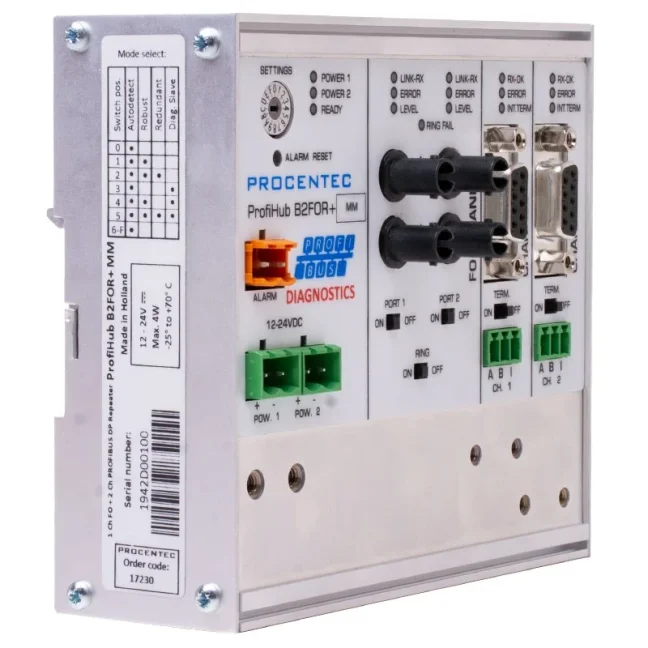

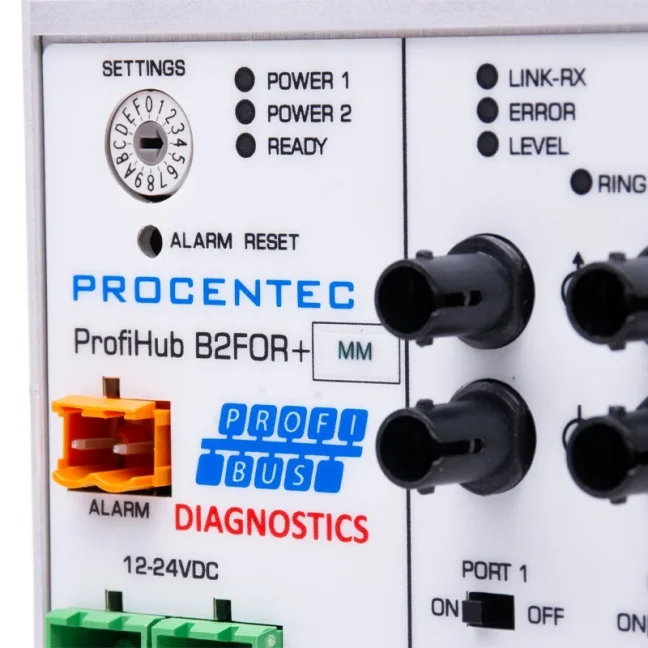

ProfiHub B2FOR+ MM 17230 with ST/BFOC optical ports

ProfiHub B2FOR+ MM · 17230

PROFIBUS DP · Network regeneration and distribution

ProfiHub B2FOR+ MM

1310 nm optical ring and two separate RS485 segments

The ProfiHub B2FOR+ MM 17230 connects the PROFIBUS optical backbone to two galvanically isolated metallic segments. One optical channel has two ports for linear or redundant ring configurations. The 17230 model uses multimode fibre and operates at a wavelength of 1310 nm.

PROFIBUS DP17230FOXON Technical Support

Please send us the topology, network speed and number of stations. We will check the connections and required accessories.

2 × RS485Two metallic segments
1310 nm MMTwo ST/BFOC optical ports
Up to 5 kmOptical link based on the attenuation budget
DP-V0Built-in diagnostic slave
Upgrading the existing network

Better signal quality and longer PROFIBUS network operation

By dividing a long cable run into shorter sections, you will improve signal transmission conditions and make maintenance easier. Minimising downtime caused by poor signal quality helps to extend the operational life of your existing PROFIBUS network. Plan the installation during a shutdown and, once the connection has been made, check both communication and signal quality.

A repeater regenerates the signal and provides galvanic isolation between individual metallic segments. It helps to limit the propagation of electrical faults and interference between them. Proper shielding, bonding and termination remain essential. A faulty cable or connector must be repaired; splitting the network does not replace rectifying the cause of the fault.

Installation proposal

Use in both new and existing networks

For the optical backbone between switchboards and the connection of two local groups of peripherals. The ring topology provides a second route in the event of a failure in one of the optical links. Power supply and metallic redundancy are separate functions.

Plan the replacement or installation of equipment in accordance with the technology’s operational requirements. Once connected, check the polarity, power supply, termination and response of the connected stations.

Installation and operation

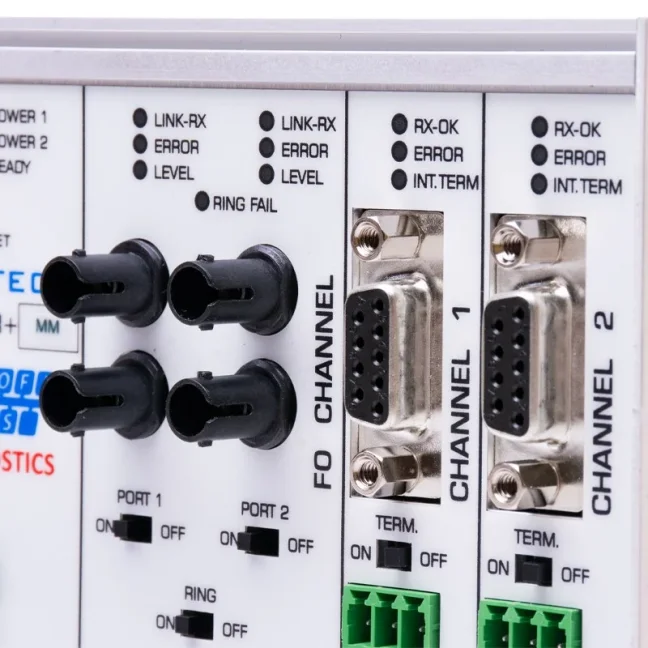

Two metallic segments and one optical channel

Two optical ports form a single optical channel. Each port has a TX transmitter and an RX receiver, making a total of four ST/BFOC connectors. Metallic channels have their own terminations and a DB9 connector for a bus or analyser.

Connect the RS485 cables to A (green wire) and B (red wire). The DB9 connector and the terminal block for the same channel still form a single electrical segment.

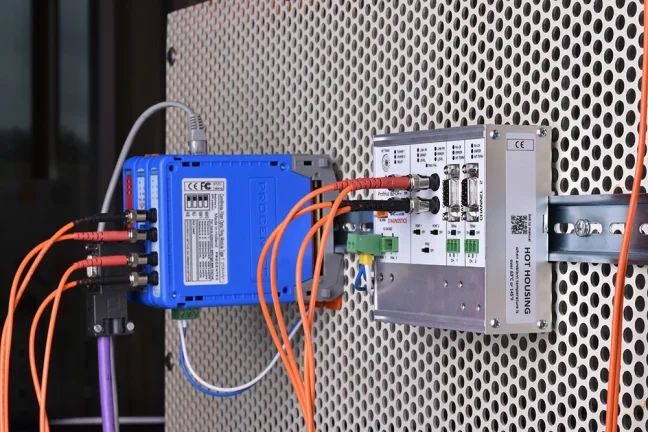

Optical backbone and local RS485 segments using B2FOR+
Optical backbone and local RS485 segments using B2FOR+
Installation and operation

Optical ring and monitoring of a broken link

For a ring configuration, enable both optical ports and the Ring switch, and connect them to compatible ring ports. Disable any unused ports in the line; an enabled port without a cable may report a missing signal.

If one link is interrupted, the other path remains available. The fault must be rectified promptly: a further interruption could disconnect part of the network. The status of the ring and the ports can be monitored locally or via diagnostics.

For ComBricks optical connections, select the appropriate FOR-MM1 module and check the headstation configuration and its compatibility. Single-mode modules and 850 nm optics are not direct replacements for 1310 nm MM.

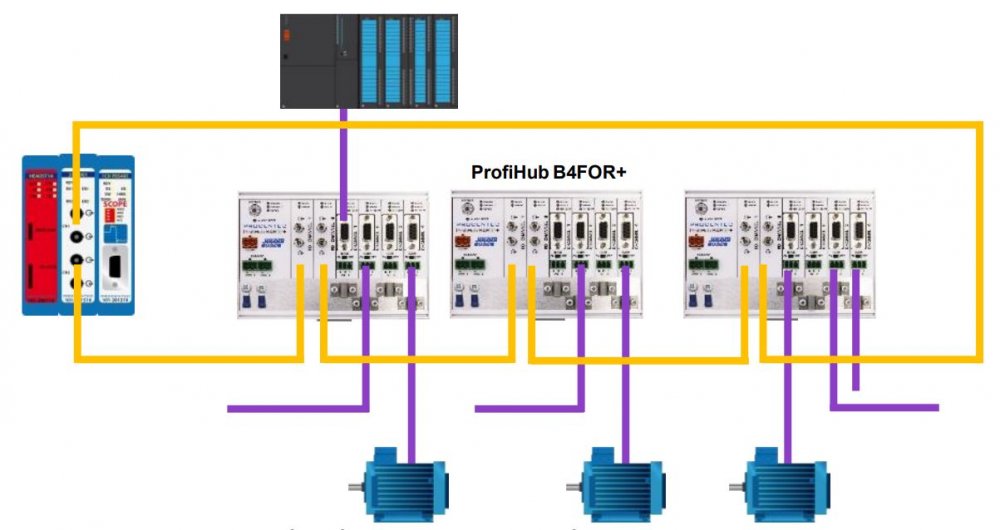

An example of an optical ring and independent metallic redundancy
An example of an optical ring and independent metallic redundancy
Installation and operation

Multimode fibre and actual range

For 17230, use MM fibre of 50/125 µm or 62.5/125 µm. The wavelength is 1310 nm. The maximum length of a single optical link is 5 km, provided the attenuation budget of 13 dB is met.

Include cable, connector and splice attenuation, as well as the timing of the entire route, in your design. The Single-Mode variant with a different range has a different order number. The connector itself, even if identical, does not guarantee optical compatibility.

Installation and operation

Diagnostic slave for PLCs, DCSs and ComBricks

The built-in DP-V0 slave uses the GSD file PROC6975.gsd and has a default address of 126. Change the address using the Set Slave Address tool, then select the data modules and specify how they are to be processed in the control system. The maximum range is 88 bytes for inputs and 5 bytes for outputs.

It transmits power supply statuses, terminations, optical port statuses, ring statuses and communication statistics to the PLC or DCS, as well as to the ComBricks PROFIBUS network analyser. ComBricks provides its own web-based overview and configured notifications; B2FOR+ does not have its own Ethernet web interface.

Robust Repeating checks the start of the telegram. Metallic redundancy uses CH1 and CH2 as a single pair. These modes, as well as the optical link, increase the delay, so please recalculate MinTSDR and Tslot.

Illustrative diagnostic data from ProfiHub in ComBricks
Illustrative diagnostic data from ProfiHub in ComBricks
Illustrative table of ProfiHub diagnostic data
Illustrative table of ProfiHub diagnostic data
Installation and operation

Power supply and alarm contact

The rated supply voltage is 12 to 24 V DC, with two inputs and reverse-polarity protection. The current draw at full load is 250 mA at 24 V. Two independent power sources ensure power redundancy.

The potential-free alarm contact has a limit of 24 V DC / 0.5 A. You can connect it, for example, to a PLC input. The absence of a second power supply may trigger an alarm; powering both inputs from a single source will suppress this message, but will not provide power supply redundancy.

PROFIBUS DP metallic network

Cable length depending on the segment speed

Up to 31 additional devices, including hubs, optical converters and analysers, can be connected to each metallic channel. Please ensure that the cable length is appropriate for the speed and segment load, and that the cables are correctly terminated.

9.6 / 19.2 / 45.45 / 93.75 kbit/s1200 m
187.5 kbit/s1000 m
500 kbit/s400 m
1.5 Mbit/s200 m
3 / 6 / 12 Mbit/s100 m

Where the topology allows, we recommend smaller groups, for example of 5 to 10 stations per machine or switchboard. This is a FOXON recommendation to make maintenance more manageable, not a technical limitation of the equipment.

The number of devices in the cascade is limited by the master’s timing and the total delay. When designing the system, check the speed, operating mode and bus parameters. A larger number of repeaters does not mean an unlimited network length.

More organised maintenance

Segments and correct termination

A segment is a section of the network in which the electrical signal is the same. Each metallic segment must be properly terminated at both ends with a termination resistor that is switched on and powered. Adjust the termination settings to suit the actual topology; do not use two terminations at the same point.

Each segment has its own electrical specifications. During maintenance, the power supply and terminations of the segments that are to continue communicating must remain intact. The response to a missing peripheral is also determined by the PLC’s configuration and programme.

Operating modes

PLC configuration and commissioning

In normal transparent mode, the repeater does not require its own PROFIBUS address or any changes to the PLC programme. However, please check the bus timing and the control system’s response to the disconnection of peripherals. Diagnostic slave and special operating modes have their own configuration requirements.

Technical specifications

ProfiHub B2FOR+ MM, order number 17230

Order number17230, Multi-Mode
Metallic segmentsTwo galvanically isolated RS485 channels
Optical channelOne channel with two ports, four ST/BFOC connectors
Speed9.6 kbit/s to 12 Mbit/s, including 45.45 kbit/s, automatic detection
Supported protocolsDP-V0 / DP-V1 / DP-V2, FDL, MPI, FMS, PROFIsafe and PROFIdrive; transparent physical-layer transmission does not replace the safety assessment of the application.
Optical topologyRing, point-to-point, line, star and tree
RS485 cable redundancyCH1 and CH2 as a single redundant pair
Devices per copper channelUp to 31 additional devices
Wavelength1310 nm
Fibre typeMM 50/125 µm or 62.5/125 µm
Range of a single connectionUp to 5 km whilst adhering to the attenuation budget
Optical budget13 dB
Ring redundancyYes, amongst the compatible optical ports
Diagnostic slaveDP-V0, GSD PROC6975.gsd, default address 126
Diagnostic dataMax. 88 bytes of inputs and 5 bytes of outputs
Power supplyRated 12-24 V DC, two inputs; absolute voltage limits 9-31 V DC
Current consumption250 mA at 24 V DC and full load
Alarm contactPotential-free, max. 24 V DC / 0.5 A
Protection ratingIP20
Operating temperature-25 to +70 °C

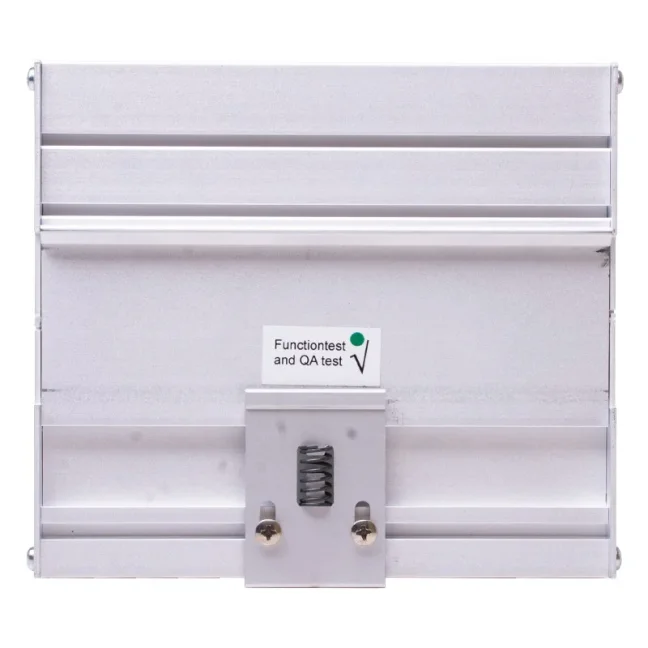

InstallationDIN rail 35 × 7.5 mm
DimensionsWe will confirm this based on the specific hardware revision of the delivery
Net catalogue weight591 g

When installing, leave space for the connectors, cable bends and access to the controls. We will confirm the design and dimensions based on the specific delivery.

Contents of the delivery

Module and installation accessories

We will supply the ProfiHub B2FOR+ MM 17230. We will confirm the contents of the included connectors, terminal blocks and mounting parts in the quotation. We will select the power supply, cables, fibre optic patch cords and analysers according to the specific network and equipment configuration.

Practical questions

Selection and commissioning

What is the difference between B2FOR+ and B2FO2+?

The B2FOR+ 17230 uses 1310 nm MM optics and supports a redundant ring. The B2FO2+ 17220 uses 850 nm and its optical channels are not designed for ring redundancy. The devices are not automatically optically interchangeable.

Can I connect single-mode fibre?

For 17230, use a multimode fibre of 50/125 µm or 62.5/125 µm. The single-mode version has a different order number. Before making your selection, check the fibre type, wavelength, connector and optical budget for both ends.

Does the 5 km range apply to each fibre?

No. The range of up to 5 km applies provided the attenuation budget of 13 dB is met. Take into account the cable, connectors and splices. At the same time, check the timing of the entire optical path.

What settings should be used for a redundant ring?

Switch on both optical ports and the Ring switch. Connect the ports to the compatible ring ports on the other devices. In a daisy-chain configuration, switch off any unused ports.

What happens if the optical ring is interrupted?

A single link interruption is covered by the second optical path. Repair the faulty link as soon as possible, as a further fault could split the network. Monitor the status of the ports and the ring via the LEDs, diagnostic data or a correctly configured ComBricks.

What diagnostic functions are available in PLCs and ComBricks?

Activate the built-in slave using GSD PROC6975.gsd, and configure the address and data modules. The default address is 126; the maximum is 88 bytes of inputs and 5 bytes of outputs. You can evaluate the data in the PLC/DCS as well as in the ComBricks permanent analyser.

PROFIBUS Technical Support

Why order from FOXON

We have been an official distributor for HMS Anybus (formerly PROCENTEC) since 2007.

Proposed network layout

We will review the network speed, cable lengths, number of stations and control cabinet locations. We will propose separate segments to suit the installation.

Selecting accessories

We will select the cabling, PROFIBUS connectors and power supply. We will check the termination of the individual segments.

Verification of a specific design

Before ordering, we will check the product order number, required functions and hardware revision.

Measurement and maintenance

We can help you distinguish between a physical layer problem and a communication error, and select the appropriate diagnostic tool.

Czech technical support

We will discuss specific wiring configurations, fault symptoms and options for long-term network monitoring.

Delivery in accordance with the project

Before placing an order, we will confirm the availability of the specific model, the quantity and the delivery date.

Network topologySegments, lengths and termination
DiagnosticsProfiHub, ProfiTrace and ComBricks
Czech supportConsultation on a specific installation
Documentation

Manuals and technical documentation

In the ‘Downloads’ tab, you will find the technical data sheet, manual and declaration of conformity. Please use the GSD files only for the relevant diagnostic version. For older units, please check the serial number and ensure the settings are correct.

Open downloads
PROFIBUS DP

Technical specifications of the ProfiHub B2FOR+ MM

Order number 17230. Please refer to the specific model of the device for its specifications and functions.

Interfaces and transmission

Order number17230, Multi-Mode
Metallic segmentsTwo galvanically isolated RS485 channels
Optical channelOne channel with two ports, four ST/BFOC connectors
Speed9.6 kbit/s to 12 Mbit/s, including 45.45 kbit/s, automatic detection
Supported protocolsDP-V0 / DP-V1 / DP-V2, FDL, MPI, FMS, PROFIsafe and PROFIdrive; transparent physical-layer transmission does not replace the safety assessment of the application.
Optical topologyRing, point-to-point, line, star and tree
RS485 cable redundancyCH1 and CH2 as a single redundant pair
Devices per copper channelUp to 31 additional devices

Optical parameters

Wavelength1310 nm
Fibre typeMM 50/125 µm or 62.5/125 µm
Range of a single connectionUp to 5 km whilst adhering to the attenuation budget
Optical budget13 dB
Ring redundancyYes, amongst the compatible optical ports

Diagnostics and Power Supply

Diagnostic slaveDP-V0, GSD PROC6975.gsd, default address 126
Diagnostic dataMax. 88 bytes of inputs and 5 bytes of outputs
Power supplyRated 12-24 V DC, two inputs; absolute voltage limits 9-31 V DC
Current consumption250 mA at 24 V DC and full load
Alarm contactPotential-free, max. 24 V DC / 0.5 A

Mechanical design

Protection ratingIP20
Operating temperature-25 to +70 °C
InstallationDIN rail 35 × 7.5 mm
DimensionsWe will confirm this based on the specific hardware revision of the delivery
Net catalogue weight591 g
Network design

Length of the metallic segment as a function of speed

9.6 / 19.2 / 45.45 / 93.75 kbit/s1200 m
187.5 kbit/s1000 m
500 kbit/s400 m
1.5 Mbit/s200 m
3 / 6 / 12 Mbit/s100 m

Where the topology allows, we recommend smaller groups, for example of 5 to 10 stations per machine or switchboard. This is a FOXON recommendation to make maintenance more manageable, not a technical limitation of the equipment.

The number of devices in the cascade is limited by the master’s timing and the total delay. When designing the system, check the speed, operating mode and bus parameters. A larger number of repeaters does not mean an unlimited network length.

Installation

Termination and operating conditions

A segment is a section of the network in which the electrical signal is the same. Each metallic segment must be properly terminated at both ends with a termination resistor that is switched on and powered. Adjust the termination settings to suit the actual topology; do not use two terminations at the same point.

Before changing the operating mode, please check the relevant manual and version. We can help you check the label and accessories for the parameters of a specific delivery.

ProfiHub B2FOR+ MM · 17230

Frequently Asked Questions about ProfiHub B2FOR+ MM

Selection, connection, diagnostics and operating conditions.

Selection and use

What is the difference between B2FOR+ and B2FO2+?

The B2FOR+ 17230 uses 1310 nm MM optics and supports a redundant ring. The B2FO2+ 17220 uses 850 nm and its optical channels are not designed for ring redundancy. The devices are not automatically optically interchangeable.

Can I connect single-mode fibre?

For 17230, use a multimode fibre of 50/125 µm or 62.5/125 µm. The single-mode version has a different order number. Before making your selection, check the fibre type, wavelength, connector and optical budget for both ends.

Does the 5 km range apply to each fibre?

No. The range of up to 5 km applies provided the attenuation budget of 13 dB is met. Take into account the cable, connectors and splices. At the same time, check the timing of the entire optical path.

What settings should be used for a redundant ring?

Switch on both optical ports and the Ring switch. Connect the ports to the compatible ring ports on the other devices. In a daisy-chain configuration, switch off any unused ports.

Wiring and diagnostics

What happens if the optical ring is interrupted?

A single link interruption is covered by the second optical path. Repair the faulty link as soon as possible, as a further fault could split the network. Monitor the status of the ports and the ring via the LEDs, diagnostic data or a correctly configured ComBricks.

What diagnostic functions are available in PLCs and ComBricks?

Activate the built-in slave using GSD PROC6975.gsd, and configure the address and data modules. The default address is 126; the maximum is 88 bytes of inputs and 5 bytes of outputs. You can evaluate the data in the PLC/DCS as well as in the ComBricks permanent analyser.

Which channels are used for metallic redundancy?

CH1 and CH2 form a single redundant pair between compatible devices. In this mode, these are not two independent outgoing segments. Check the settings at both ends, as well as the timing.

Do I need to change the PLC programme?

In normal transparent mode, the repeater does not require its own PROFIBUS address or any changes to the PLC programme. However, please check the bus timing and the control system’s response to the disconnection of peripherals. Diagnostic slave and special operating modes have their own configuration requirements.

Network operations

How should copper segments be terminated?

A segment is a section of the network in which the electrical signal is the same. Each metallic segment must be properly terminated at both ends with a termination resistor that is switched on and powered. Adjust the termination settings to suit the actual topology; do not use two terminations at the same point.

How many devices can be connected?

Up to 31 additional devices, including hubs, optical converters and analysers, can be connected to each metallic channel. Please ensure that the cable length is appropriate for the speed and segment load, and that the cables are correctly terminated.

Will ProfiHub eliminate all outages?

Galvanic isolation helps to limit the spread of electrical faults and interference. It does not eliminate faulty cables, incorrect shielding or missing terminations. A disconnected station or a damaged segment will continue to affect the equipment on that segment and the PLC’s response.

Can several converters be connected in cascade?

The number of devices in the cascade is limited by the master’s timing and the total delay. When designing the system, check the speed, operating mode and bus parameters. A larger number of repeaters does not mean an unlimited network length.
