Industrial switch 5×100M RJ45, unmanaged, power supply 12-48 VDC / 18-30 VAC, metal chassis, DIN rail mounted, IP30, ATEX II certified. More
Manufacturer: Kyland Code: OPAL5-E-5T-LV-LV

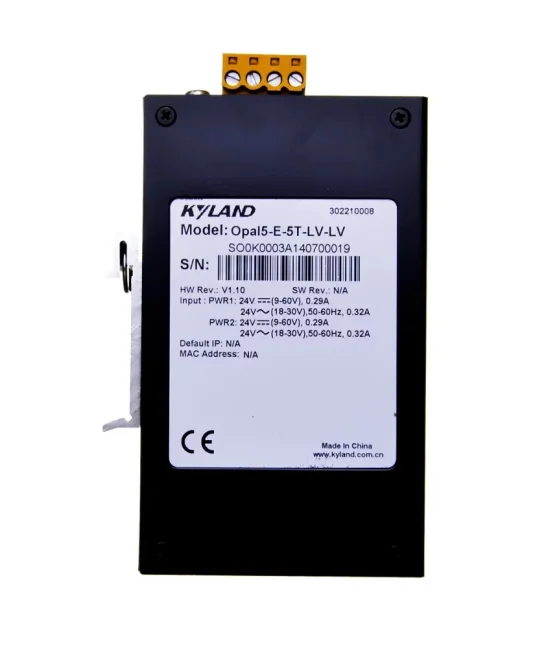

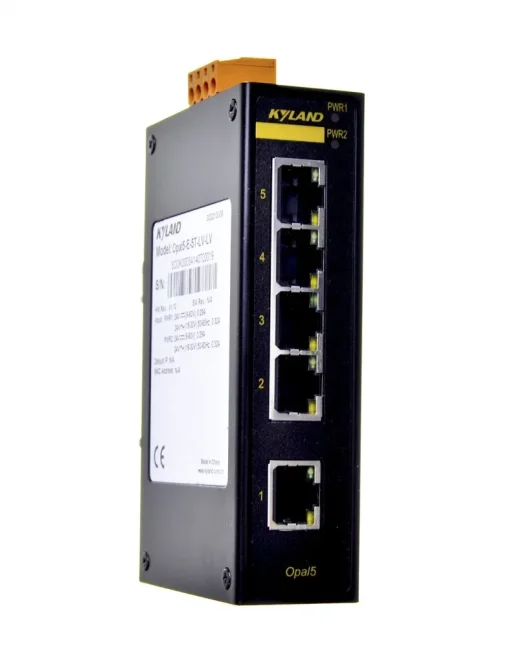

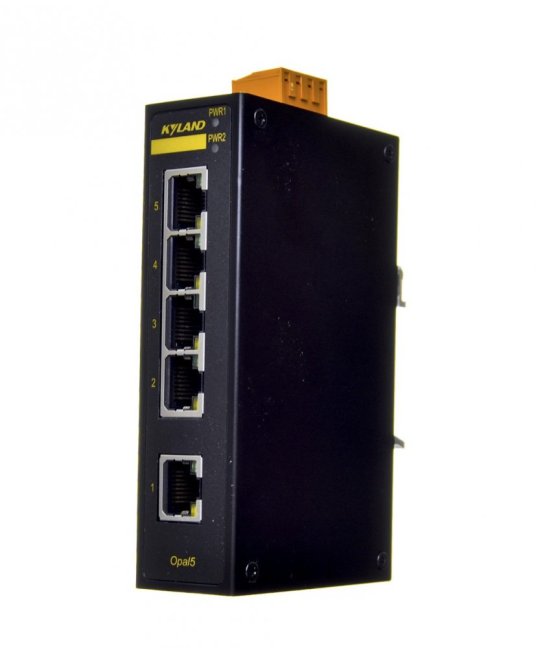

Opal Ethernet switches are modern light industrial DIN mount unmanaged switches. Opal5 contains five 10/100Base-TX RJ45 ports. Different specifications are also available (upon request). The switch features a metal housing with IP30 seal rating. In our online Store, the default Opal5 option that we offer is the standard operating temperature range model, which is designed for the range of -10° C to 60° C. Opal5 supports redundant power input – 12–48 VDC / 18–30 VAC.
Opal is ideal for deployment in control cabinets

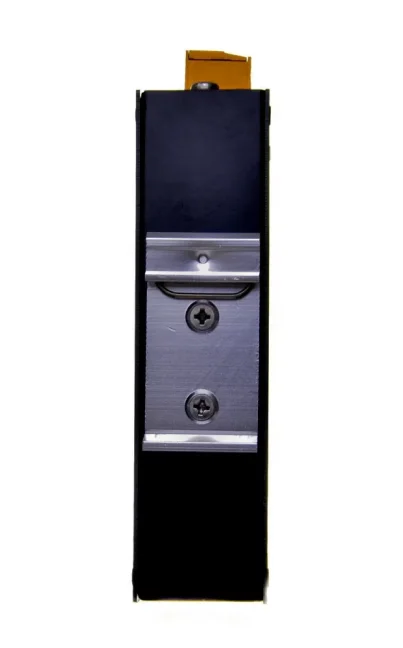

This unmanaged switch is ideal for deployment in the type of industrial automation that does not require any setup or functions of smart, managed switches, but still puts emphasis on industrial durability and high reliability. One of the applications of this switch is in control cabinets, where it is connected to all Ethernet stations in the cabinet or all the Ethernet stations belonging to a particular production line. The main advantages of this switch also include very small dimensions and a rugged IP30 metal housing, which features a clip for DIN rail mounting or accessories for panel mounting. Depending on application, Opal5 is available in two operating temperature ranges – -10° C to +60° C (less harsh environments) and -40°C to +75°C (harsher environments). The default option that we offer in our online Store is the -10° C to +60° C model.
If one of the Opal's power inputs fails, the other one takes over and thus ensures uninterrupted operation and data transfer. A power input failure is signalled via LED diodes on the front of the switch. Finally, Opal supports overvoltage protection and reverse protection.
Broadcast storm protection

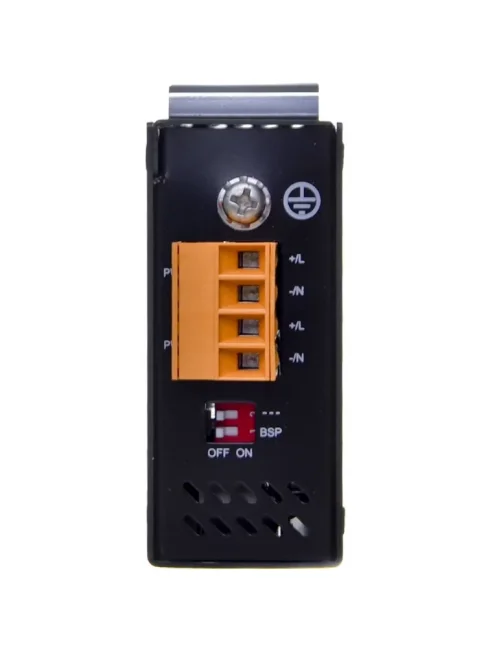

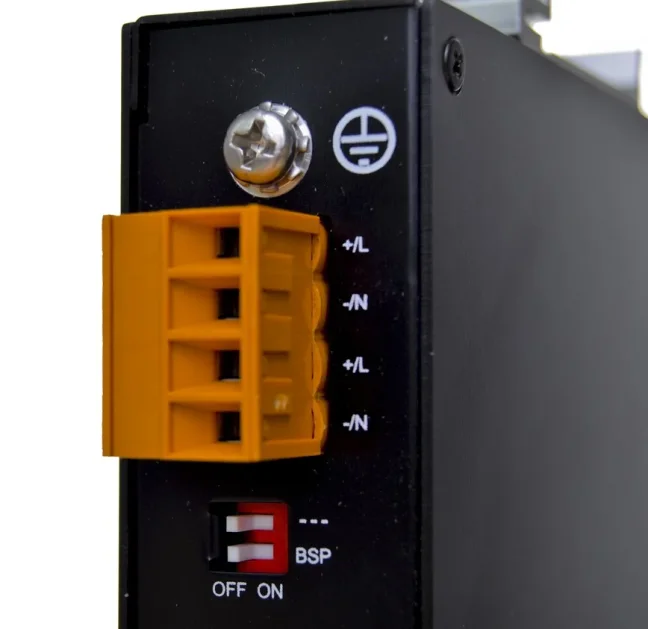

On the switch, you will find two DIP switches, whose default position is the OFF position. DIP switch 1 is for Broadcast storm protection, while DIP switch 2 is reserved for future use by the manufacturer.
Kyland switches are available in many different specifications
One of the big advantages of Kyland switches is their availability in many different specifications. If you need different specifications (ports / connectors / power input) than those in the default option, see the Price List tab. If you have selected one of these specifications, please contact our sales team, which will immediately send you our sales offer.
| Opal5-X-Ports-Connector-PS | |
| X | Operating temperature range |
| E | -10 to +60°C operating temperature |
| None | -40 to +75°C operating temperature |
| Ports | |
| 5T | 5 10/100Base-T(X) RJ45 ports |
| 1S4T | 1x100Base-FX, single mode fiber port; 4x10/100Base-T(X) RJ45 ports |
| 1M4T | 1x100Base-FX, multi mode fiber port; 4x10/100Base-T(X) RJ45 ports |
| 1SFP4T | 1 100Base-X, SFP slot; 4 10/100Base-T(X) RJ45 ports |
| Connector | 100M fiber port specifications |
| SC05 | SC connector, multi-mode, 1310nm, 5km |
| ST05 | ST connector, multi-mode, 1310nm, 5km |
| SC40 | SC connector, single-mode, 1310nm, 40km |
| ST40 | ST connector, single-mode, 1310nm, 40km |
| SC60 | SC connector, single-mode, 1310nm, 60km |
| SC80 | SC connector, single-mode, 1550nm, 80km |
| None | No 100M fiber port |
| PS | |
| LV-LV | 12-48VDC/18-30VAC, redundant power inputs |
| Accessories | |
| 100Base-X SFP module | Please refer to the 100Base-X SFP module ordering list |
| DT-BGAZ-01 | Panel for Panel mounting |
| DT-FCZ-RJ45-01 | Dustproof cover for RJ45 port |
| Technical Specification | |
| Standard | IEEE 802.3i (10Base-T) IEEE 802.3u (100Base-TX and100Base-FX) |
| Switch Properties | MAC Table: 2K Packet Buffer: 1Mbit Packet Forwarding Rate: 0.75Mpps Switching Delay:<10μs |
| Interface | Fast Ethernet Port: 100Base-FX, SM/MM, SC/ST connector 100Base-X, SFP slot 10/100Base-T(X), RJ45 port |
| LED | LEDs on Front Panel Power LED: PWR1, PWR2 Interface LED: Link/ACT, Speed (RJ45 port); Link/ACT (Fiber port) |
| DIP-Switch | Enable/Disable broadcast storm protection |
| Power Requirements | Power Input: 12-48VDC/18-30VAC Power Terminal: 4-pin 5.08mm-spacing plug-in terminal block Power Consumption:<3.4w Overload Protection: Support Reverse Protection: Support Redundancy Protection: Support Communication ports isolation: 500 Vdc, 1 minute |

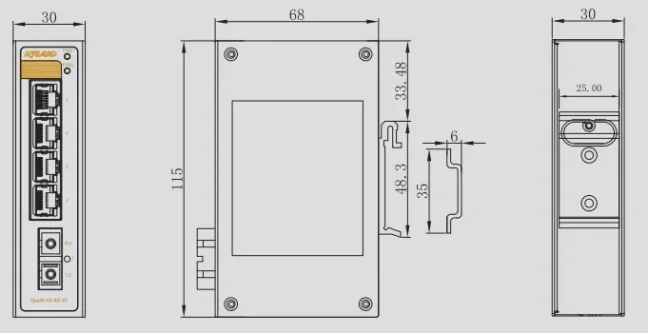

| Physical Characteristics | Housing: Metal Cooling: Natural convection, fanless Protection Class: IP30 Dimension: 30mm×115mm×68mm (W×H×D) Weight: 0.2Kg Mounting: DIN-Rail or Panel Mounting |
| Environmental Limits | Operating Temperature: -10°C to +60°C (Opal5-E) -40°C to +75°C Storage Temperature: -40°C to +85°C Ambient Relative Humidity: 5-95% (non-condensing) Operating Altitude：2000M |
| Quality Assurance | MTBF: 5832000 hrs Warranty: 5 years |
| Approvals | CE, FCC, UL61010, Class I Div 2, IECEx, ATEX Zone 2, Ex ec IIC T4 Gc |
| Industry Standard | EMI: FCC CFR47 Part 15,EN55022/CISPR22,Class A EMS: IEC61000-4-2(ESD): ±6kV (contact), ±8kV (air) IEC61000-4-3(RS): 10V/m (80MHz–2GHz) IEC61000-4-4(EFT): Power Port: ±2kV; Data Port: ±1kV IEC61000-4-5(Surge): Power Port: ±1kV/DM, ±2kV/CM; Data Port: ±1kV IEC61000-4-6(CS): 10V (150kHz–80MHz) Machinery: IEC60068-2-6 (Vibration) IEC60068-2-27 (Shock) IEC60068-2-32 (Free Fall) |
