NP-6116 industrial computer NODKA
NP-6116 industrial computer NODKA
Parameters
- Support Intel® Celeron™J6412, 2.0~2.6GHz, 4 cores/4 threads, 1.5MB L2 cache Max. TDP 10W
- 8GB RAM (max 32GB)
- 256GB SSD
- 3 x Intel GbE LAN controller
- 3 x USB 3.1 on the front
- 1 x RS232，1 x RS485，support auto flow control
- HDMI + Display Port for Dual Display connectiivity
- 1 x miniPCIe expansion slot, support Wifi,3G/4G modules
- Support wall-mounted or DIN-Rail fixing style (DIN set is not included, must be ordered separately)
- DC12~24V Power supply with overcurrent, overvoltage and polarity inverse protection
- Wide operating temperature -20 ~ 60℃ supported
- Ready for OS Windows 10, Windows 10 IoT Ent. LTSC, Windows 11, Linux Ubuntu
Extended warranty
- The basic warranty provided is 2 years
- Extended warranty +1 year for +10% of the price
- Extended warranty +2 year for +20% of the price

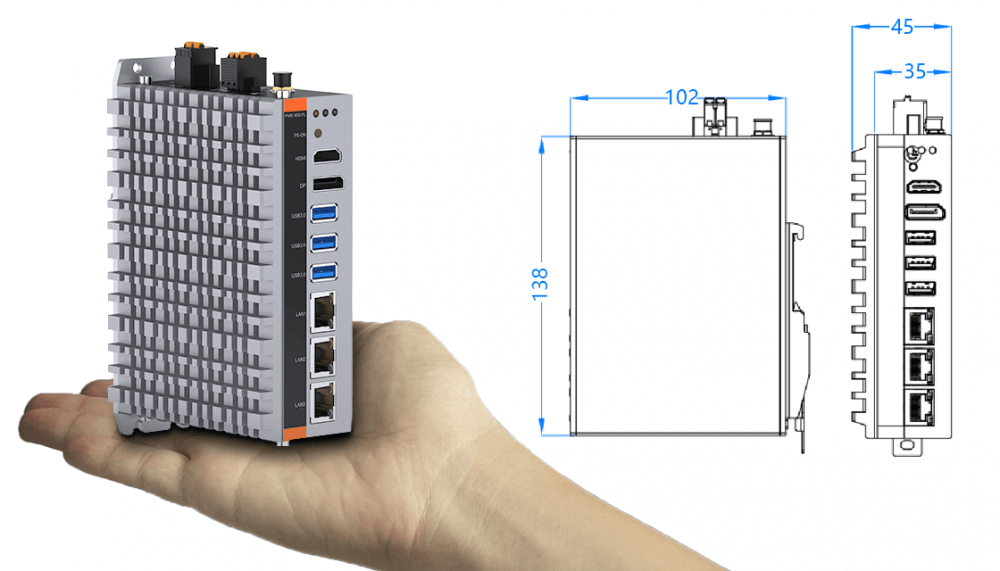

The NP-6116 industrial computer series is popular for its miniature size and weight. It takes up very little space in the rack yet offers sufficient performance to run industrial software applications.

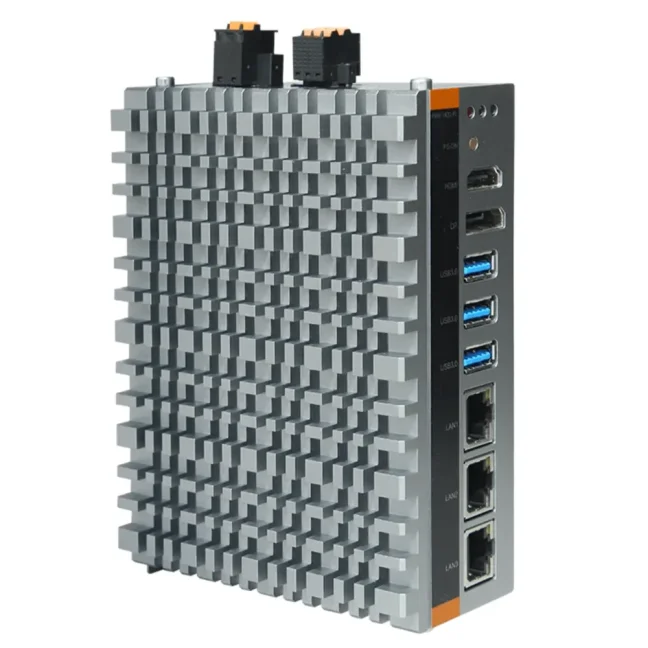

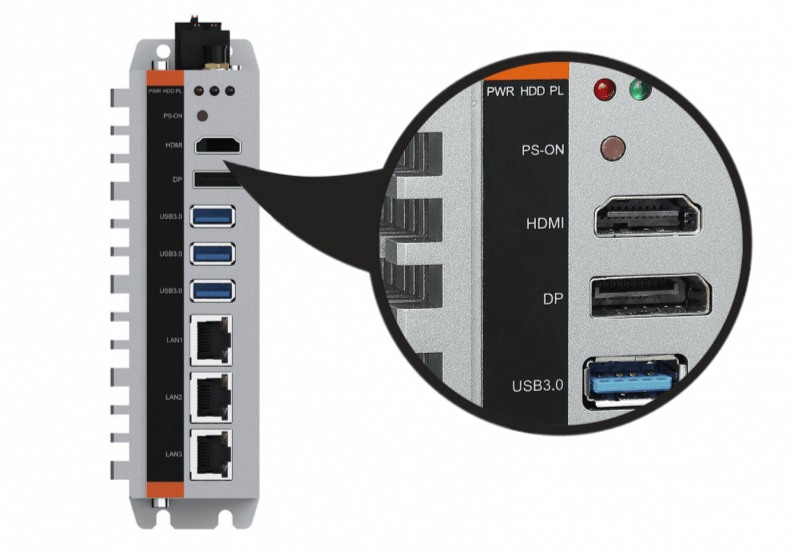

Supports dual-display mode with 4K resolution for both HDMI and DisplayPort.

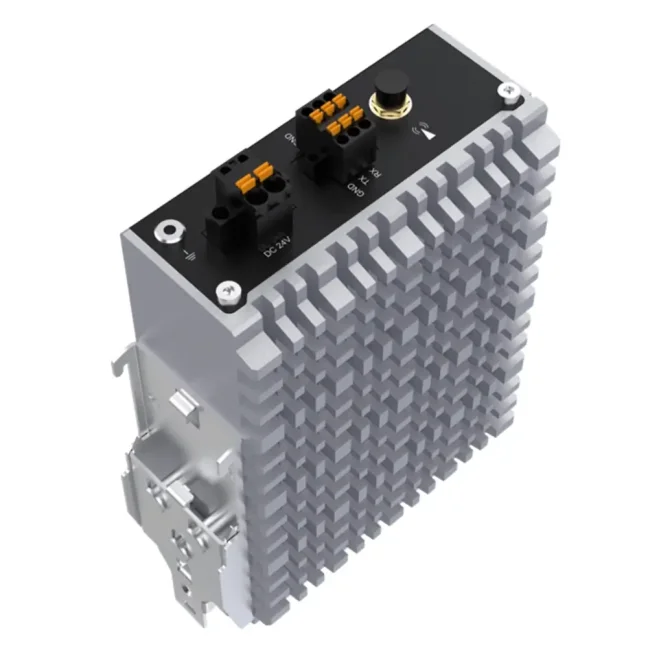

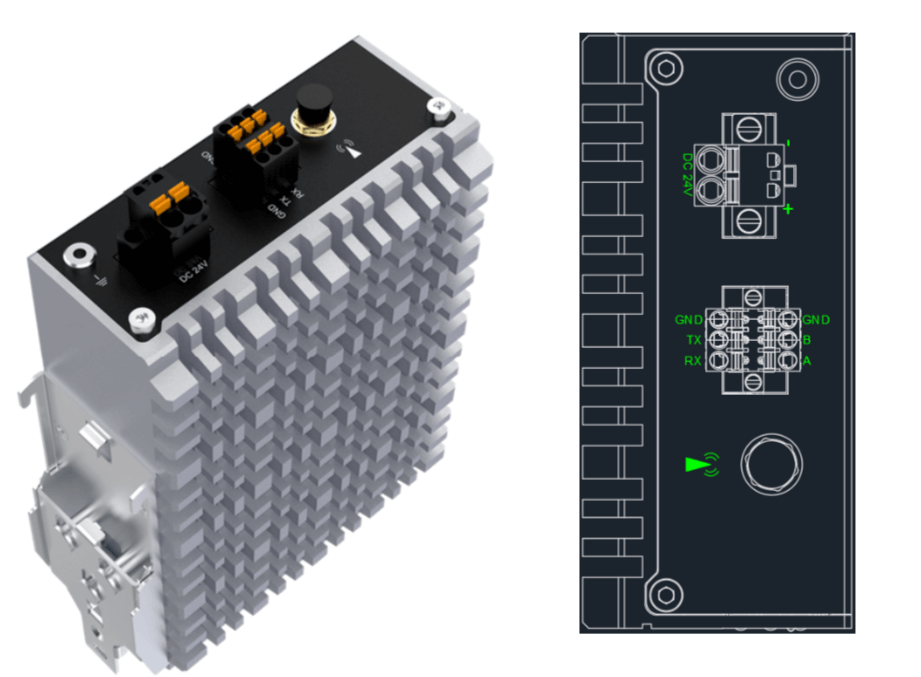

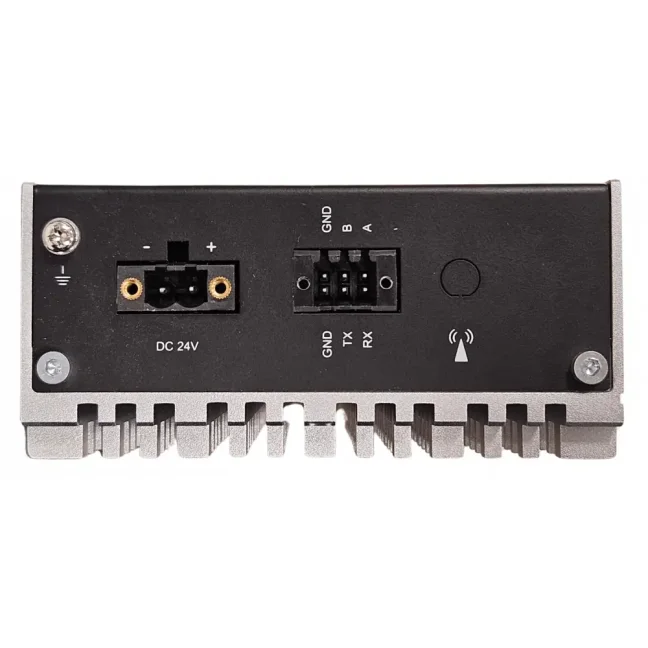

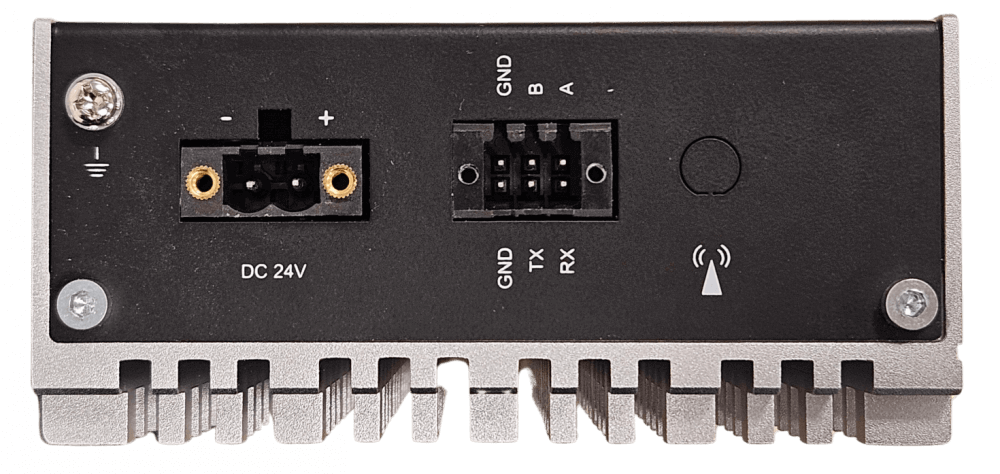

The RS232 and RS485 serial communication interface is located at the top of the computer and is thus very accessible.

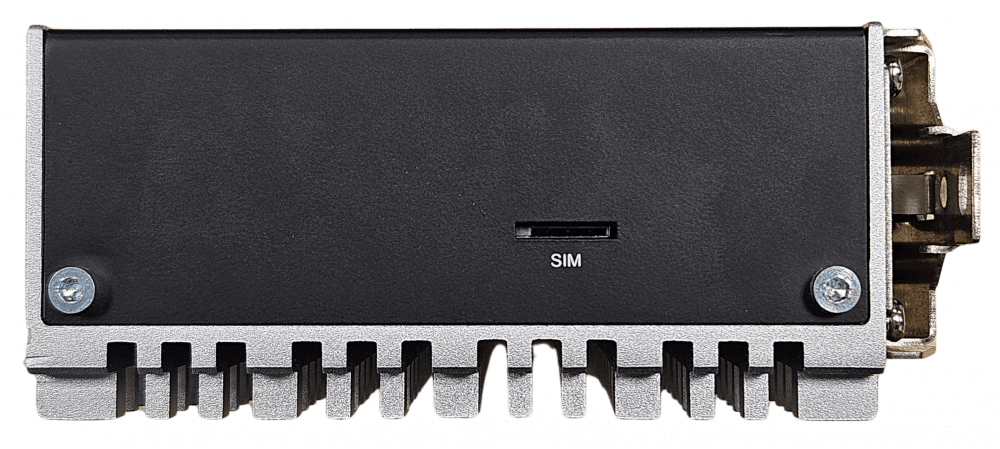

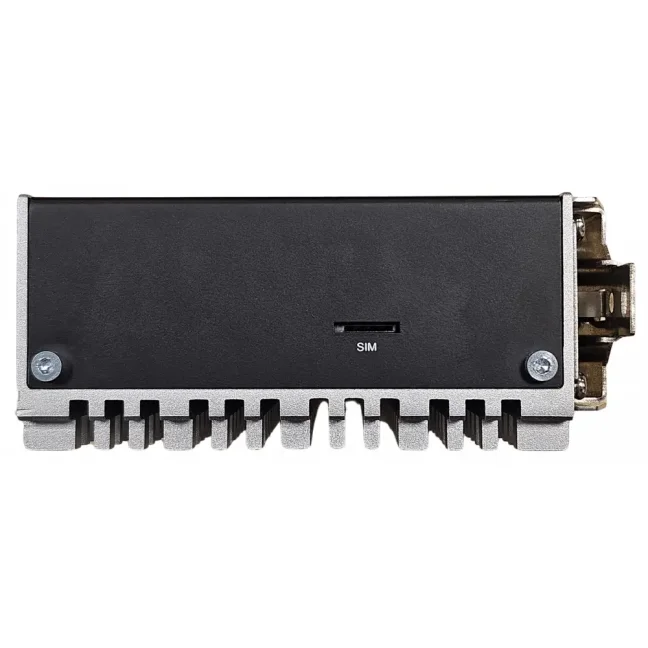

The SIM card slot is accessible from outside the computer. To operate the SIM card, the 4G modem must be installed in the miniPCI slot on the computer's motherboard. Route the antenna through the cable to the other side into the pre-prepared antenna hole.

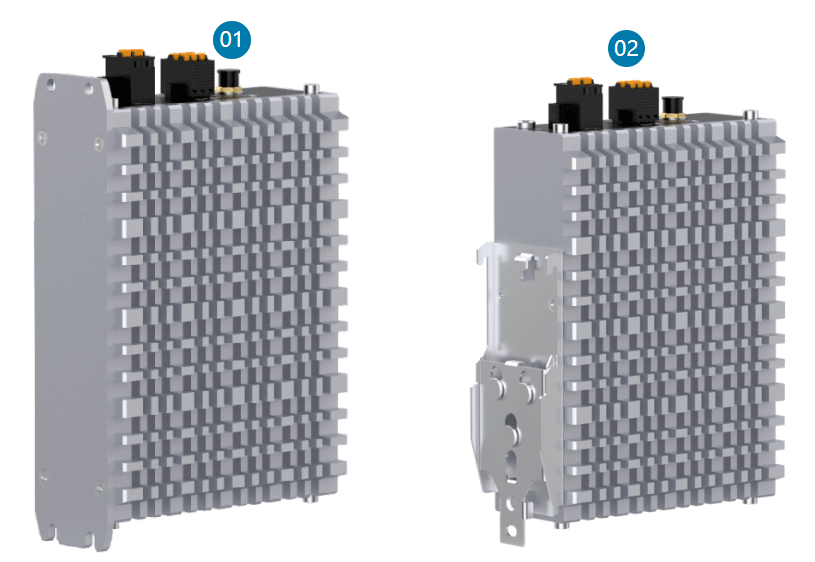

The computer can be wall mounted or mounted on a DIN rail. The DIN rail mounting kit is not included and must be purchased separately.

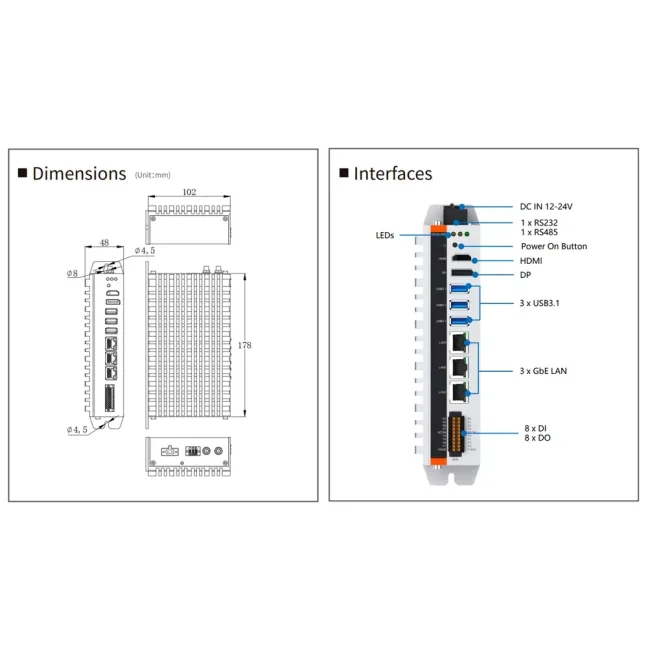

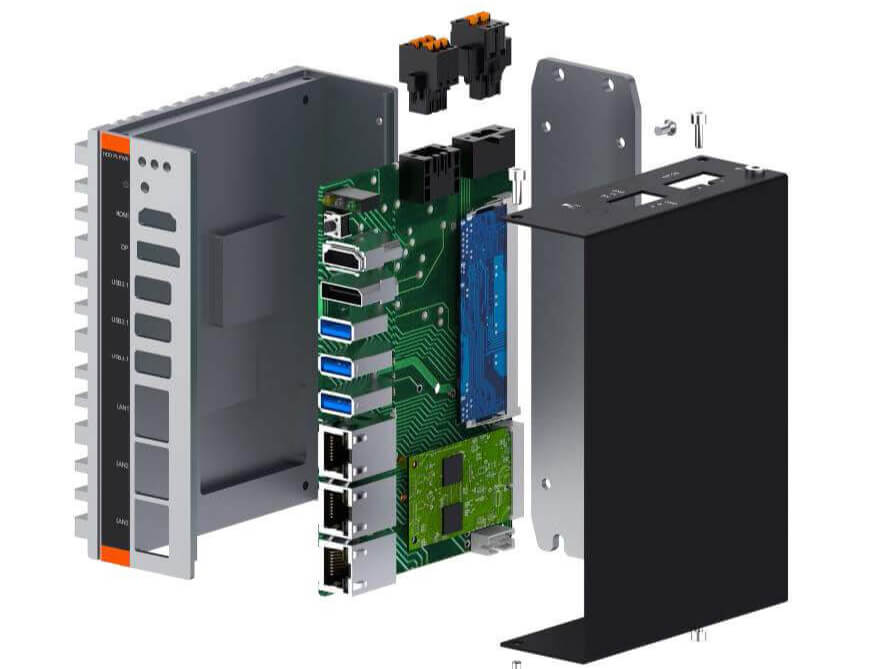

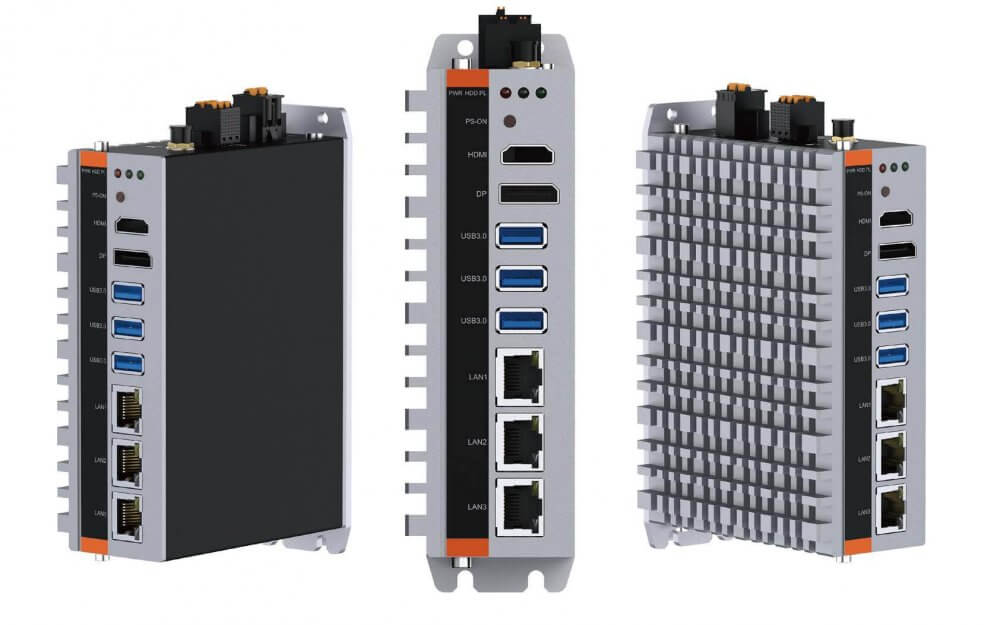

Design of industrial computer NODKA NP-6116

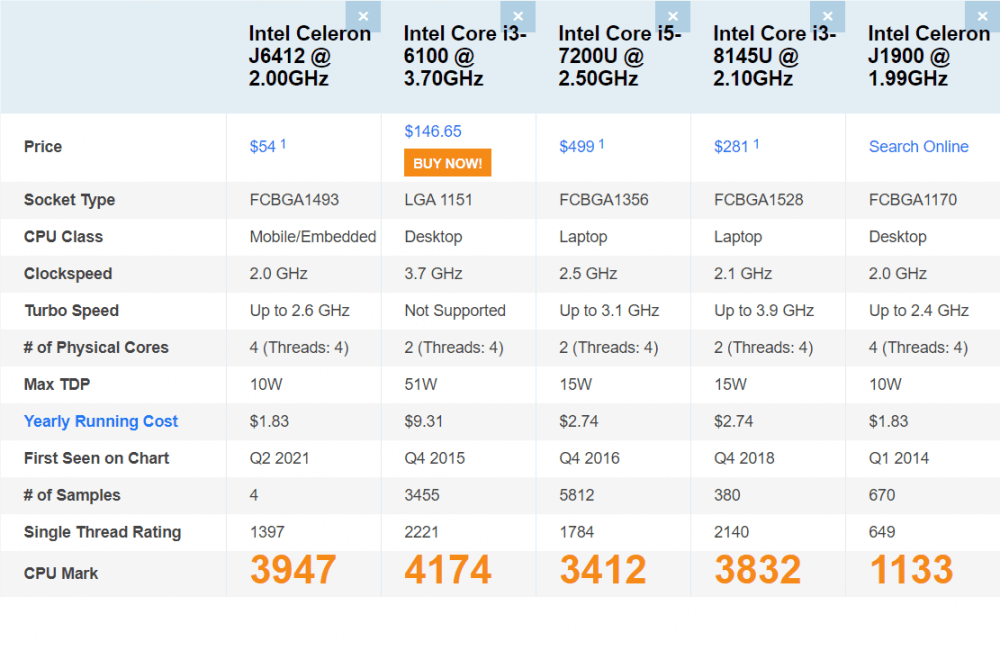

Comparison of Intel Celeron J6412 processors with other processor types
Video demonstration of NODKA NP series industrial computers.
Processor
- CPU：Intel® Celeron™ J6412, 2.0~2.6GHz, 4 cores/4 threads, 1.5MB L2 cache
- Memory：1 x SO-DIMM DDR3L-1333MHz (max. 8GB)/1 x SO-DIMM DDR4-2400MHz (max. 32GB)
- Storage Medium：1 x mSATA SSD
- BIOS：AMI UEFI 64Mbit/AMI UEFI 256Mb
I/O Interface
- LAN：3 x Intel GbE LAN controller
- USB：3 x USB3.1
- COM：1 x RS232, 1 x RS485
- DO：1 x Programmable LED
Display
- DP：Support up to 4096 x 2160 @60Hz
- HDMI：Support up to 3840 x 2160 @60Hz
Physical
- Dimensions ：L)138mm x (W)102mm x (H)48mm
- Weight：1.06Kg
- Box Structure：Aluminum-magnesium alloy BOX Fanless
Mounting
- Mount：Wall-mounted or DIN-Rail
Operating System
- Microsoft Windows：Windows 10, Windows 10 IoT Enterprise LTSC
- Linux：Ubuntu
Power
- Input Voltage：DC12/24V ±10%, overcurrent, overvoltage and polarity inverse protection.
- Power Dissipation：Max. 45W
Environment
- Work temperature：-20ºC ~ 60ºC (-4℉~140℉) with air flow (SSD)
- Storage Temperature：-40ºC ~ 80ºC (-40℉ ~ 176℉) with air flow (SSD)
- Relative Humidity：5~95% (Non-condensing)
- Vibration：5~500Hz, 1.5Grms@with SSD, Follow IEC60068-2-64
- Shock：20G peak acceleration(11ms duration) with SSD, Follow IEC60068-2-27
- EMC：CE/FCC Class B
Other
- WatchDog：1~255 levels programmable
Expansion Slot
- 1 x Full-size PCIe Mini slot with SIM card holder(with USB signal)
