License "Online Trigger" for CANtouch® tester
Licence for network monitoring, logical error and trouble shooting over a longer period of time for CANtouch tester.
The license enables monot bus monitoring, logic error and physical layer troubleshooting over a longer period of time. Measurements can be started after selecting the time for one measurement cycle (10 ms - 1 min). If an error is detected within a measurement cycle, it is marked in the appropriate line. It is therefore possible to find out later when the error occurred (up to 1 week). The selected time for one cycle corresponds to the maximum displayable time span. In CANtouch it is possible to display 10,000 measuring cycles, older data is lost. Only the fact that one or more errors have occurred during the entire measurement period is visible.

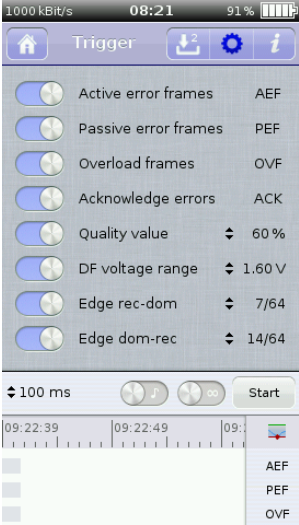

For physical measurements, you specify the threshold values when an error is displayed. The current values as well as the maximum and minimum values can be displayed. The monitoring of some errors can be switched off. This can be useful if you are looking for a particular physical problem and do not want the monitor to beep or stop at each error frame.

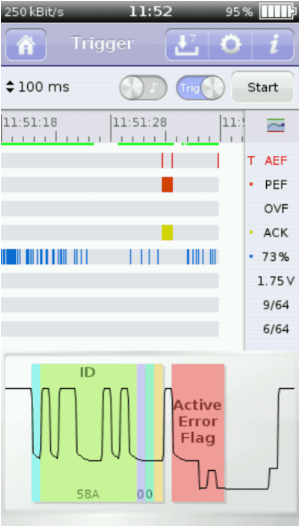

CANtouch can beep on every detected error, this makes it easier to deal with sporadic errors. It is also possible to display the last evaluated message as a corrupted oscilloscope image. The oscilloscope display functions are detailed as we know them from Node Measurement (zoom, physical and logical display, decoding).
