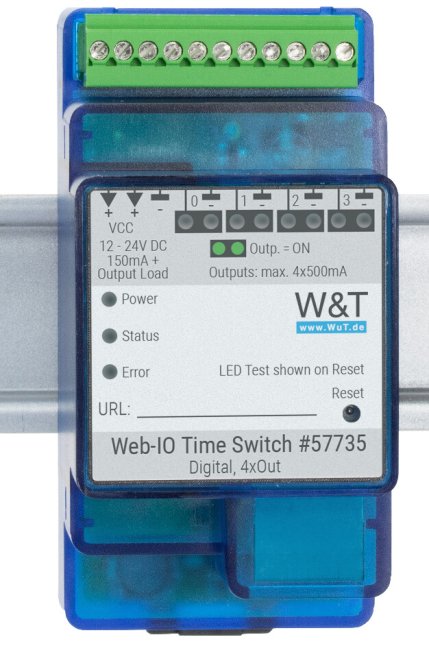

Ethernet IO remote I/O 24V with time switch

Time switch 4x 24V DI/DO, with the possibility of time switching via iCal and .ics calendar files. Calendar files can be uploaded to the module via web server (offline method) or the module connects to the online calendar of Google, Apple, iCloud, etc. The four digital outputs can also be used as digital inputs. Power supply 12-24VDC, DIN mounting. More

Code: 57735

338 EUR excl. VAT (408,98 EUR Incl. VAT)

Recycling fee 0,04 EUR included in the price.

Quantity discount

Units

Discount

Price without VAT

0 - 4

338,00

5 - 9

331,24

10 - 19

321,10

20 and more

307,58

Delivery 3-8 days

pcs

(0 pcs In stock)

Get a quote

Code: 57735

W&T 57735

Network timer controlled by an iCal calendar

The W&T Web-IO Time Switch 57735 controls digital channels according to a calendar in iCal (.ics) format. Four channels can be used as inputs or outputs; configuration and manual control are available via the web interface.

Do you need to select or order W&T 57735?
Please send us the required quantity and a description of the wiring configuration. We will check availability and suitable accessories.

Enquire about purchasing or repairing a part

4× DI/DOFour selectable digital channels

iCal (.ics)Calendar-based switching

12–24 V DCOutputs up to 500 mA

Successor model

W&T lists the successor model 57135 for this product. The specifications on this page relate to the original order number 57735. Before selecting a replacement, we will verify the wiring, functions and suitability for the specific application.

Usage

It is used for the time-scheduled switching of lighting, gates, cabinets and other suitably connected loads. Calendar events are linked to specific switching actions and supplemented by manual monitoring via the network.

Technical specifications for W&T 57735

Digital inputs/outputs	4 channels, each selectable as an input or output
Network interface	Automatic 10/100BaseT detection
Power supply	12–24 V DC, current consumption approximately 100 mA at 24 V
Galvanic isolation	Inputs/outputs relative to the network interface: min. 1000 V
Connectors and terminal blocks	1 x 11-channel screw-type terminal block for inputs/outputs and power supply – plug-in 1 x RJ45 for network connection
Signalling	Status LEDs for the network
Protocols and services	HTTP and HTTPS
Response times	Data and switching operation: typically 12 ms
Calendar file format	iCal (*.ics)
Housing and mounting	Plastic housing for DIN rail mounting Version for installation in secondary switchboards
Degree of protection	IP20
Weight	approx. 140 g
Storage temperature	-25 to +70 °C
Operating temperature	0 to +60 °C
Permissible relative humidity	5 to 95 per cent RH, non-condensing
Contents of the delivery	1 x Web-IO Time Switch Digital 4xOut 1× quick start guide The power supply and other accessories must be ordered separately

Calendar and switching functions

The calendar format is iCal with the .ics extension. Before deployment, check the availability of the calendar source, event assignments and time settings.
The channels operate at 24 V and the outputs have a switching current of up to 500 mA. A suitable isolator is required for other voltages or higher loads.
Web management supports HTTP/HTTPS. Email messages, HTTP requests and FTP are available for logging switching events; up to 30 actions can be configured.
The internal clock supports synchronisation with a time server and is battery-backed. When selecting communication services, this model is not automatically assessed in the same way as standard Web-IO 4.0 units.

Commissioning and accessories

Connect the network and a 12–24 V DC power supply. Set the time, synchronisation, calendar source and links to the outputs. Before connecting the actual load, test the schedule, event changes and manual control.

Contents of the delivery

1 x Web-IO Time Switch Digital 4xOut
1× quick start guide
The power supply and other accessories can be
order separately

Frequently Asked Questions

How many separate channels does the device have?

Four physical channels that can be used as either inputs or outputs. These are not four inputs in addition to four outputs.

What calendar format is used?

iCal (.ics). Check how a specific calendar is made available when designing the connection.

Can I connect directly to a 230 V mains supply?

The digital outputs are designed for 24 V systems. A suitable relay or other isolating device is required to switch other voltage levels.
