SCHILDKNECHT DATAEAGLE 4000

Ethernet Multipoint - communication for DATAEAGLE 473x

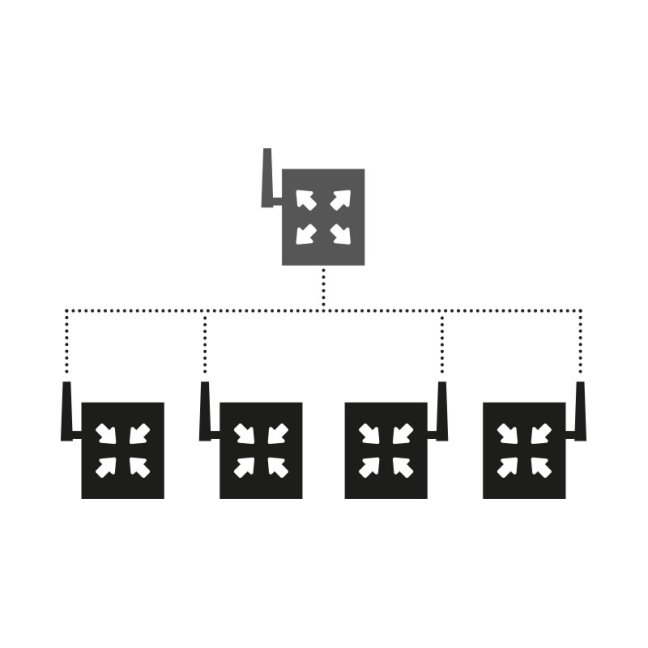

Option 15480 specifies Ethernet transmission for the DATAEAGLE 473x basic radio modules. Up to four Slave radio stations can be connected to a single Master radio station. The communication option itself does not include radio units, antennas or a complete wireless link.

Are you looking for Ethernet for the entire wireless link?
Please send us the number of radio sites, the distance and the network diagram. We will select the modules, communication protocols, configuration and accessories.

Enquire about a complete wireless connection
EthernetCommunication option for the 473x series
Up to 4 Slave radio stationsMulti-point connection
15480Option without radio hardware

Using wireless Ethernet

This solution is used to connect parts of an Ethernet network where a data cable restricts movement or is subject to wear and tear. Typical installation locations include mobile trolleys, rotating machine parts and other equipment with challenging cable routing. We will assess data transmission, required response times and behaviour in the event of a connection failure based on the specific application.

Communication option parameters

ManufacturerSchildknecht AG
Order number15480
SeriesDATAEAGLE 473 views
Item typeEthernet Multipoint communication option
TopologyOne Master radio station, up to 4 Slave radio stations
Supported transmissionEthernet
PROFINET / EtherNet/IPThe optimisation of these protocols is determined by other communication options
Safety communicationsRequires the appropriate communication option and verification of the entire application

Selecting a protocol and report

For Ethernet, select option 15480. To optimise PROFINET or EtherNet/IP transmission, use 15481 Point-to-Point and 15482 Multipoint. Safety communication is handled by 15485 Safe Point-to-Point or 15483 Safe Multipoint with a corresponding design for the entire application.

The number of radio stations and the number of terminal devices or connections are different figures. For the proposal, please provide both figures as well as the required communication times.

Modules, configurations and menu content

  1. Select the basic radio modules: 473x Compact 15475 for a switchboard or 473x X-treme 15476 for installation with the technology.
  2. Specify the communication functions for each unit.
  3. Select a configuration: 10002: 1× Master + 1× Slave, 10003: 1 × Master + 2 × Slave, 10004: 1 × Master + 3 × Slave, 10005: 1 × Master + 4 × Slave.
  4. Provide suitable antennas, any necessary antenna cables, mounting brackets, power supply and an Ethernet connection.

Two suitable radio units are required to establish a link between two radio sites. We will specify the scope of supply, whether the communication option is included in the price, and the required configuration in the quotation for the complete system.

Frequently Asked Questions

Is the 15480 a complete set?

No. This is a communication option for the DATAEAGLE 473x base modules. The item itself does not establish a wireless connection.

Does the price quoted cover the entire journey?

The price of the complete assembly is made up of the selected modules, configuration and accessories. The price quoted for this option does not include the cost of all the necessary components.

Is Ethernet the same as EtherNet/IP?

EtherNet/IP is a specific industrial communication protocol. To ensure optimised transmission, we will select the appropriate multi-protocol option from the 473x series.

Why buy DATAEAGLE from FOXON

Schildknecht Distributor

We are the distributor of Schildknecht products for the Czech Republic and Slovakia. We have been representing the manufacturer since 2015.

Products in stock

We hold Schildknecht products in stock. We will confirm the availability of the selected model and the required quantity before you place your order.

From single items to larger batches

We can arrange deliveries ranging from single items to larger batches. We can also help organise deliveries for the repeat production of machinery and equipment.

Technical support and consultancy

We can help you choose modules, communication options, configurations and antennas. We provide technical support and advice on installation and operation.

More than 3 500customers
We supply tomore than 100 countries around the world
Express delivery?We’ll look into it - please contact us straight away.

DATAEAGLE enquiry - 15480

Please send us the specifications, the number of radio sites and connected devices, the distance, the environment and the required times. We will prepare a quotation for a complete system.

Enquire about a complete wireless connection

+420 488 588 749 · poptavka@foxon.cz
