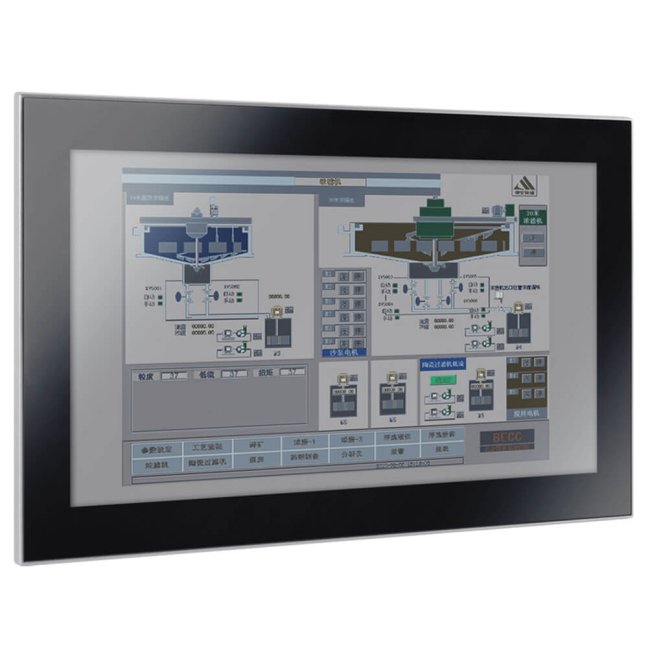

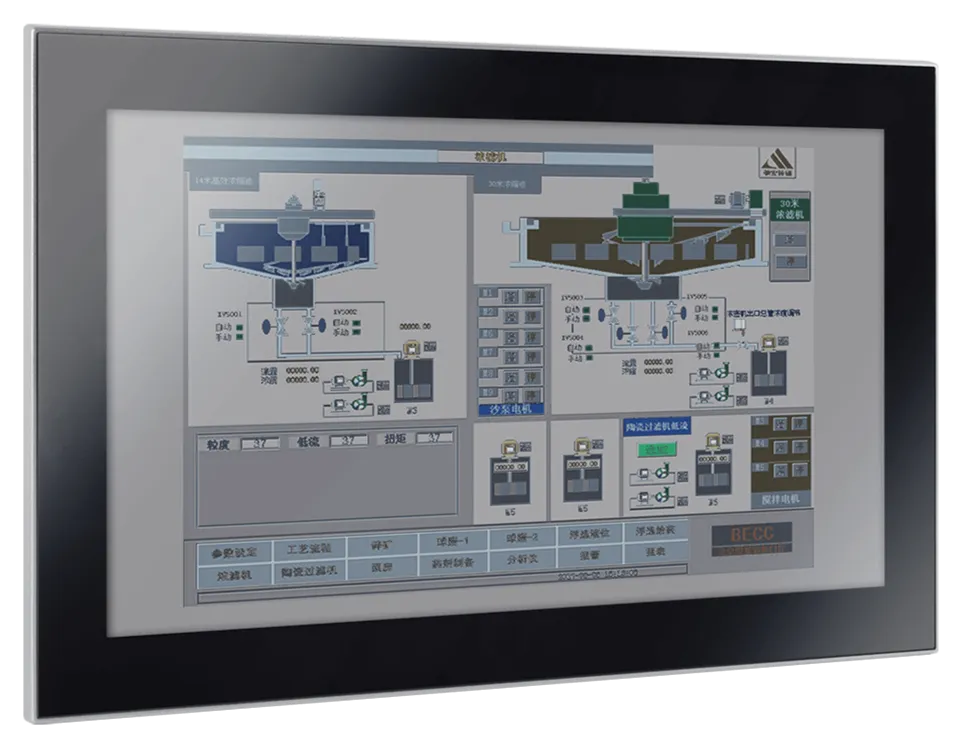

18.5" industrial PC panel NODKA TPC6000-C1853

Add to favourites

18.5" industrial PC panel NODKA TPC6000-C1853

Good price/performance ratio
Warranty 2 years (option up to 4 years)

18.5" capacitive touch screen, 1920x1080, Intel® Celeron™ J6412, 8G RAM, 128G SSD, 2xGLAN, 4xUSB, 2xSerial, DVI+VGA, 12-24VDC More

Manufacturer: NODKA Code: TPC6000-C1853W-LH-J6412-8G-SSD128G

1 411,10 EUR excl. VAT (1 707,43 EUR incl. VAT)
Recycling fee 0,51 EUR v cene.
Delivery 3-8 days Watch availability
pcs
(0 pcs in stock)
Buy more for 230 EUR and get free delivery!
0 EUR230 EUR

18.5" capacitive touch screen, 1920x1080, Intel® Celeron™ J6412, 8G RAM, 128G SSD, 2xGLAN, 4xUSB, 2xSerial, DVI+VGA, 12-24VDC More

Manufacturer: NODKA Code: TPC6000-C1853W-LH-J6412-8G-SSD128G

Main features

  • NODKA - výrobce průmyslových počítačů, PC panelů a monitorů18.5" HD TFT
  • Resolution 1920x1080
  • Fanless industrial panel computer
  • Processor Intel® Celeron™ J1900
  • 2x ports RJ45  10/100/1000Mb/s
  • 4 x USB3.0/2.0/1.1
  • 2x serial port RS232 / RS485
  • Graphical interface 1x VGA, 1x DVI
  • 1x PS2 port
  • 1 x Mini PCIe slot
  • Power input 12-24VDC, with reverse polarity protection
  • VESA mounting, in panel
  • Aluminium-magnesium alloy casting, IP65 front protection rating

Warranty

  • The basic warranty provided is 2 years
  • Extended warranty +1 year for +10% of the price
  • Extended warranty +2 year for +20% of the price

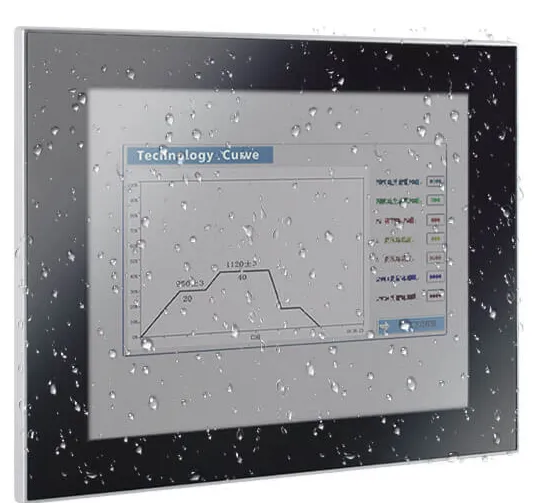

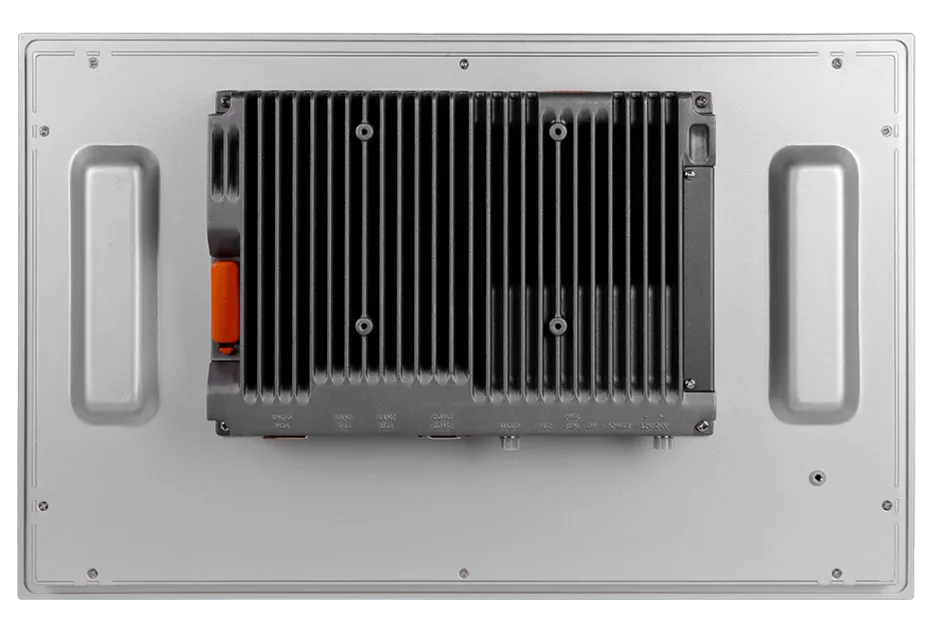

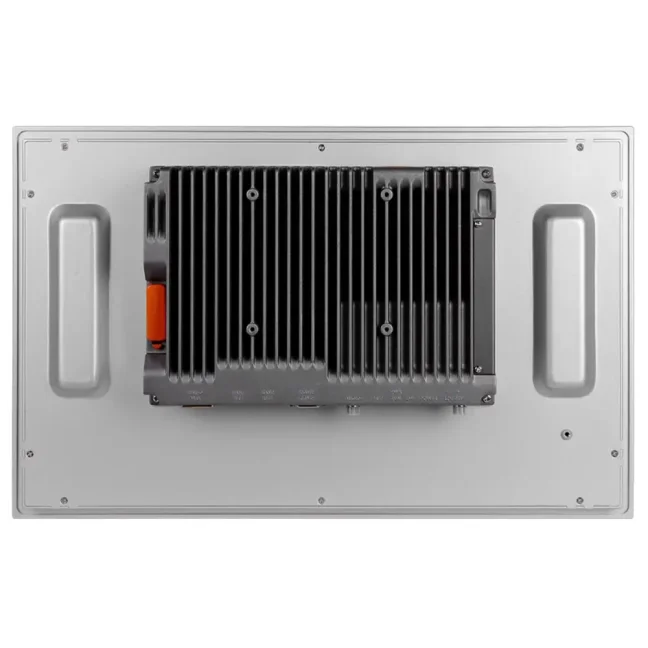

Rugged IP65 and NEMA4 Aluminium Chassis, Fanless design

The front of the panel meets IP65/NEMA4 Standard and is water and dust resistant. The entire PC panel is sealed, fanless and without ventilation holes.

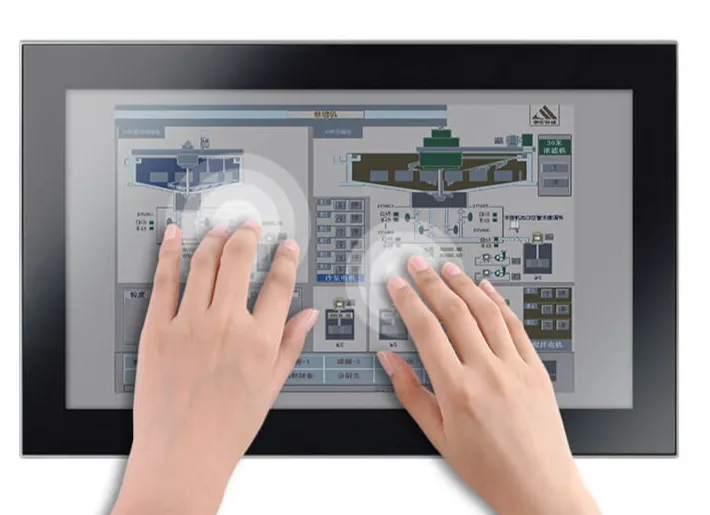

Excellent touch control precision

The touch control of the monitor is capacitive, i.e. it is very sensitive with high resolution and fast response to light touch. The monitor supports multi-touch control for up to 10 touches at a time. The lifetime of the touch screen is up to 10 million clicks. The front panel is neutral, with no logos or other lettering. NODKA offers to place your own logo on the monitor.

Top-quality details, strong power and low consumption

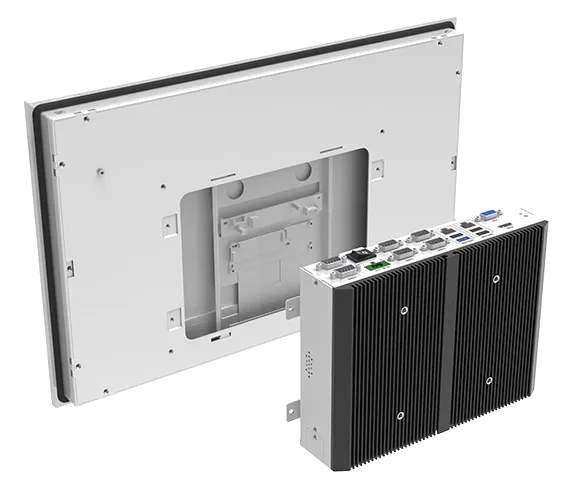

The PC panel is composed of a NODKA touchscreen monitor and a NODKA industrial computer, which has sufficient computing power and low power consumption. The whole device is very well processed and meets the highest quality requirements.

Processor

  • CPU：Intel® Celeron® J6412
  • Frequency：Quad core 2.0GHz
  • L3 Cache：1,5MB
  • Chipset：Integrated PCH-LP
  • Memory：1*DDR3L-1600，max 8GB / 1*DDR4 2400MHz，max 16GB
  • Storage Medium：1×2.5" SATA bay + 1×mSATA

I/O Interface

  • LAN：2×Realtek 1000Mbps RJ-45 with surge protection,lightning protection design and 15KV ESD protection
  • USB：4 x USB 3.0/2.0/1.1
  • COM：2 x RS-232 / RS-485 interface
  • Audio：Optional

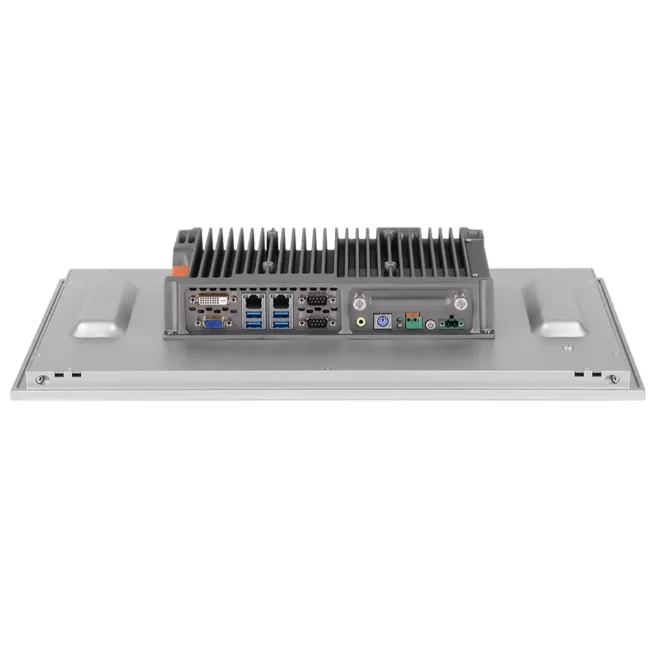

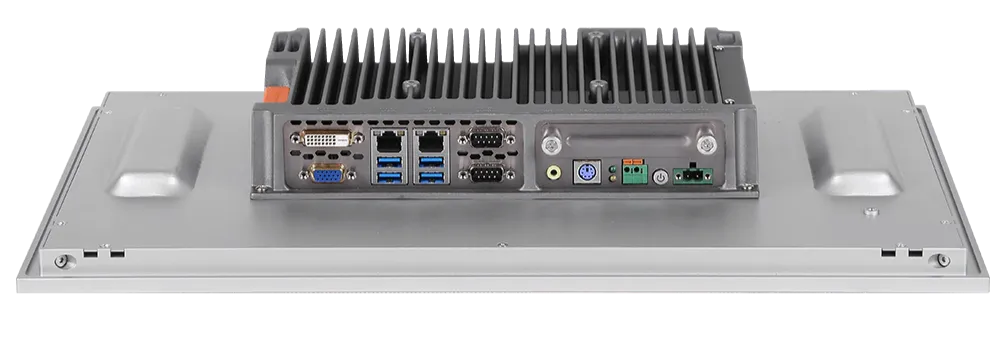

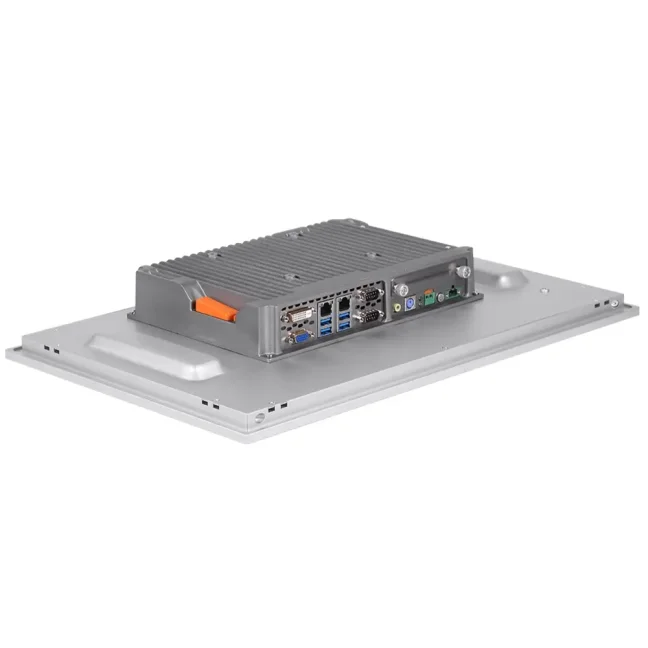

  • Rear I/O：VGA / DVI-D / 2×GLAN / 4×USB / 2×COM

Physical

  • Dimensions: 480mm x 304mm x 66mm (18.90" x 11.97" x 2.60")
  • Cut Out Size:  463mm x 287mm (18.23" x 11.30")
  • Weight：5.8kg

Operating System

  • OS：Windows 7, Windows 7 Embedded, Windows 8, Windows 10, Linux, VxWorks, QNX

Power

  • Input Voltage：12-24VDC ±10%, support reverse polarity protection, overvoltage protection, overcurrent protection
  • Power：36Watt(Max.)

LCD

  • LCD Size：18.5" HD TFT
  • Resolution：1920x1080
  • Colors：16.7MB
  • Active Area：409.8mm x 230.4mm (16.13 "x 9.07")
  • Backlight：WLED
  • MTBF：30000hrs
  • Pixel Pitch：0.3×0.3
  • Luminance：250cd/m²
  • Contrast Ratio：1000 : 1
  • Viewing Angle：(L) 80 / (R) 80 / (T) 60 / (B) 80

Touch Screen

  • Touchscreen Type：Multi-point capacitive touch screen
  • Transmittance：> 87%
  • Controller interface：USB
  • Driver Support：Windows 7, Windows8, Windows10, Linux
  • Surface hardness：Mohs' Number 7H
  • Multi-touch: 10 points (windows system)

Environment

  • Work temperature：-20 ~ 60°C (-4~140°F)(Wide temperature SSD) / 0 ~ 45°C (32~113°F)(General temperature HDD/SSD)
  • Storage Temperature：-30 ~ 80°C (-22~176°F)
  • Relative Humidity：5 ~ 95% RH@40°C (Non-condensation)
  • Vibration：Operating Random Vibration Test 5~500Hz, 1.5Grms@with SSD, follow IEC 60068-2-64
  • Shock：Operating 20G peak acceleration (11ms duration), follow IEC 60068-2-27
  • EMC：CE/FCC Class B
  • Water-proof：Front panel IP65

Expansion Slot

  • MiniPCIe：1×Mini-PCIe slot, extensible 3G,WIFI wireless card
Download
Datasheet TPC6000-C1853 (pdf, 591.3 kB)
NODKA Company.pdf (pdf, 6 MB)
