17" industrial PC panel NODKA TPC6000-A172-T

17" industrial PC panel NODKA TPC6000-A172-T


17" resistive touch screen, 1280x1024, Intel® Celeron® J1900, 8G RAM, 128G SSD, 2xGLAN, 4xUSB, 6xSerial, VGA+HDMI, 12VDC More

Manufacturer: NODKA Code: TPC6000-A172-T-8G-SSD128G

1 032,30 EUR excl. VAT (1 249,08 EUR incl. VAT)
Recycling fee 0,51 EUR v cene.
Delivery 2-3 weeks
pcs

17" resistive touch screen, 1280x1024, Intel® Celeron® J1900, 8G RAM, 128G SSD, 2xGLAN, 4xUSB, 6xSerial, VGA+HDMI, 12VDC More

Manufacturer: NODKA Code: TPC6000-A172-T-8G-SSD128G

  • NODKA - výrobce průmyslových počítačů, PC panelů a monitorů17" XGA TFT
  • Resolution 1280x1024
  • Fanless Panel PC based on Intel® Celeron® J1900 processor
    Aluminum-magnesium alloy die-casting, cover with PET film, IP65 degree of protection
  • Onboard Intel®Bay trail E3845/J1900 quad-core processor
  • 2 RTL8111F 10/100/1000Mbps RJ45 port
  • 3 USB2.0 and 1 USB3.0
  • 6 RS232 serial ports(COM1, COM5 and COM6 optional RS485)
  • DC12V power input, optional DC9~30V, with reverse polarity protection measures

Rugged IP65 and NEMA4 Aluminium Chassis, Fanelss design

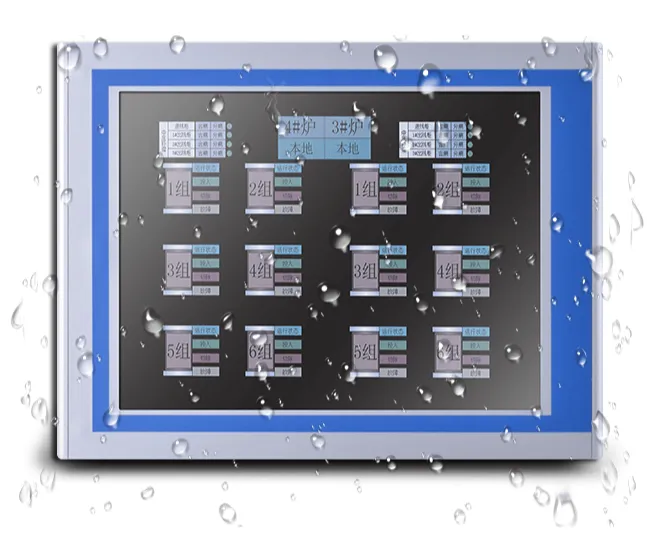

Front Panel IP65/NEMA4 Standard, water and dust proof

Fanless and sealed enclosure

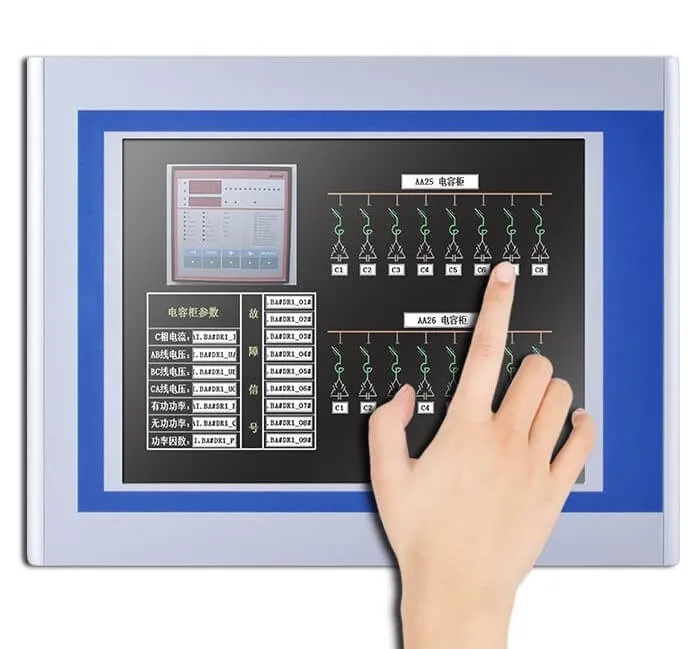

5-wire resistive touch screen

5-wire resistive touch, with water, dust, and oil proof; click life is 50 million times

Neutral front panel

Nodka offers neutral front panel design without logo in neutral packag, as well as customized logo printing

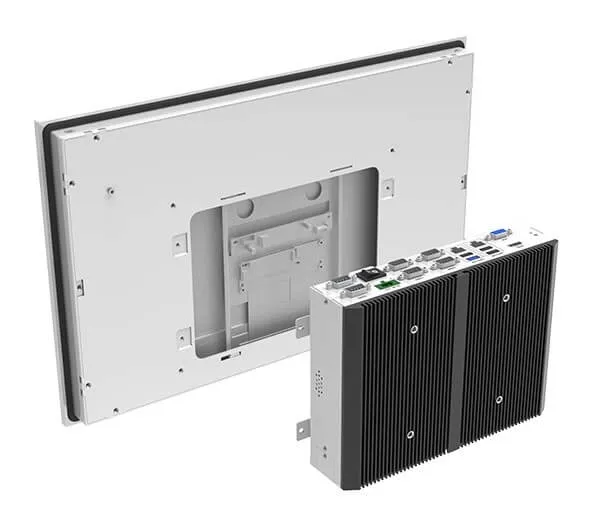

Modular design: optimized for Industrial Panel Applications

Flexible modular design for system box; powerful computing performance for low power consumption

Different mounting options as requests


Processor

  • CPU:Intel® Celeron® J1900
  • Frequency:Quad core 2.0GHz
  • L3 Cache:2MB
  • Chipset:Intel Bay trail SOC
  • Memory:1×DDR3L-1333,max 8GB
  • Storage Medium:1×2.5" SATA bay + 1×mSATA

I/O Interface

  • LAN:2×Realtek 1000Mbps RJ-45以with surge protection,lightning protection design and 15KV ESD protection
  • USB:1×USB3.0 / 2.0 / 1.1, 3×USB2.0 / 1.1
  • COM:1×RS232 / 485 (COM1), 5×RS232 (Optional 2xRS48,RS485 support automatic flow control)
  • Audio:Optional

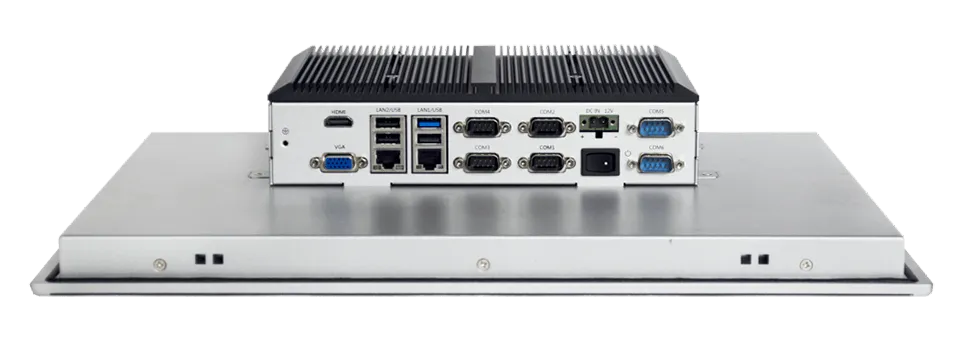

  • Rear I/O:VGA / HDMI / 2×GLAN / 4×USB / 6×COM

Physical

  • Dimensions:434mm×342mm×73mm (17.09"×13.46"×2.87")
  • Cut Out Size:411mm×325mm (16.18"×12.80")
  • Weight:6,05kg

Operating System

  • OS:Windows 7, Windows 7 Embedded, Windows 8, Windows 10, Linux, VxWorks, QNX

Power

  • Input Voltage:DC 12V, support reverse polarity protection, +9~+30V (Option)
  • Power Dissipation:33.6Watt(Max.)

LCD

  • LCD Size:17" XGA TFT
  • Resolution:1280x1024
  • Colors:16.7MB
  • Active Area:338mm×270mm (13.31"×10.63")
  • Backlight:WLED
  • MTBF:50000hrs
  • Pixel Pitch:0.264×0.264
  • Luminance:350cd/m²
  • Contrast Ratio:1000 : 1
  • Viewing Angle:(L) 85 / (R) 85 / (T) 80 / (B) 80

Touch Screen

  • Touchscreen Type:Resistive touch screen
  • Resolution:4096 x 4096
  • Transmittance:> 75%
  • Controller interface:USB
  • Driver Support:Windows 7, Windows8, Windows10, Linux
  • Response Time:< 5ms
  • Surface hardness:Mohs' Number 3H
  • Click life:250g / 35,000,000 times
  • Draw life:250g / 5,000,000 times

Environment

  • Work temperature:-20 ~ 60°C (-4~140°F)(Wide temperature SSD) / 0 ~ 45°C (32~113°F)(General temperature HDD/SSD)
  • Storage Temperature:-30 ~ 80°C (-22~176°F)
  • Relative Humidity:5 ~ 95% RH@40°C (Non-condensation)
  • Vibration:Operating Random Vibration Test 5~500Hz, 1.5Grms@with SSD, follow IEC 60068-2-64
  • Shock:Operating 20G peak acceleration (11ms duration), follow IEC 60068-2-27
  • EMC:CE/FCC Class B
  • Water-proof:Front panel IP65

Expansion Slot

  • MiniPCIe:1×Mini-PCIe slot, extensible 3G,WIFI wireless card

Accessories8
