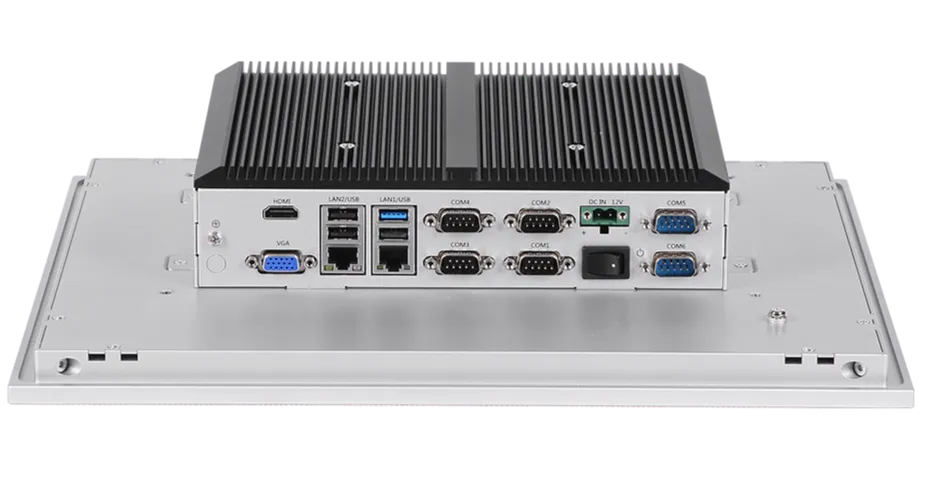

6x serial port RS232 (COM1, COM5 and COM6 for RS485)
Graphical interface 1x VGA, 1x HDMI
Power input DC12V, with reverse polarity protection
VESA mounting, in panel
Aluminium-magnesium alloy casting, IP65 front protection rating
Warranty
The basic warranty provided is 2 years
Extended warranty +1 year for +10% of the price
Extended warranty +2 year for +20% of the price

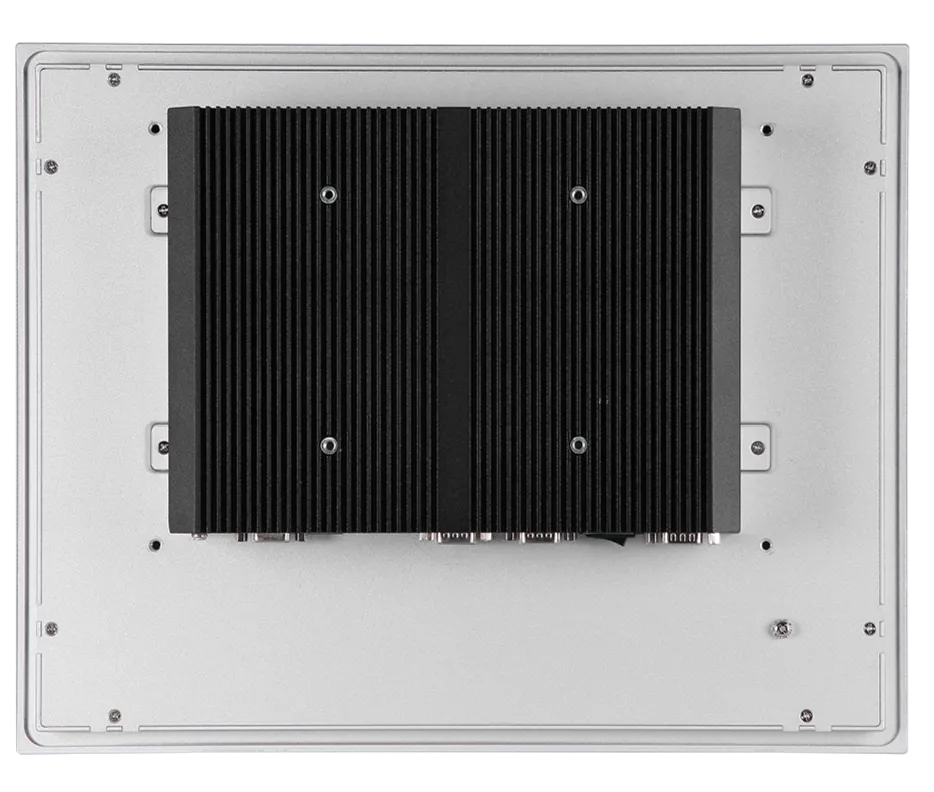

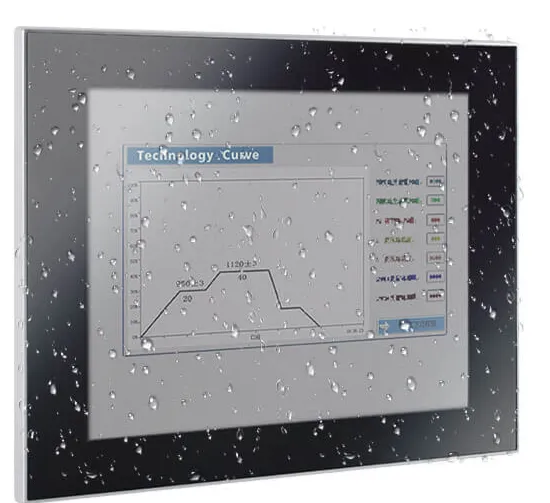

Rugged IP65 and NEMA4 Aluminium Chassis, Fanless design
The front of the panel meets IP65/NEMA4 Standard and is water and dust resistant. The entire PC panel is sealed, fanless and without ventilation holes.

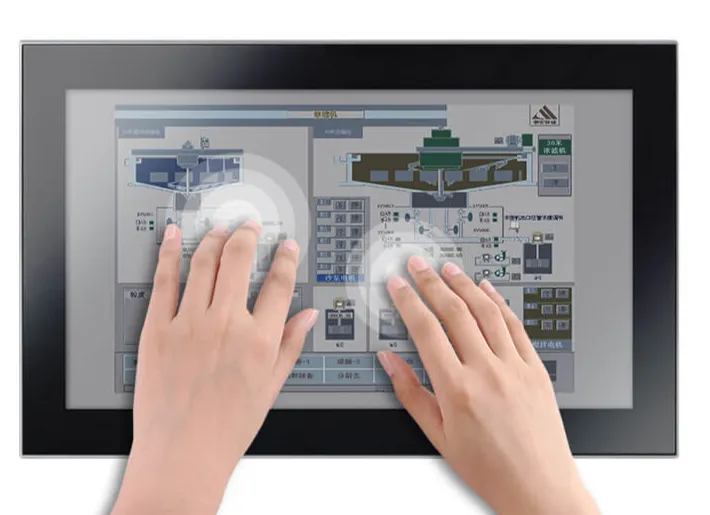

Excellent touch control precision
The touch control of the monitor is capacitive, i.e. it is very sensitive with high resolution and fast response to light touch. The monitor supports multi-touch control for up to 10 touches at a time. The lifetime of the touch screen is up to 10 million clicks. The front panel is neutral, with no logos or other lettering. NODKA offers to place your own logo on the monitor.
Top-quality details, strong power and low consumption

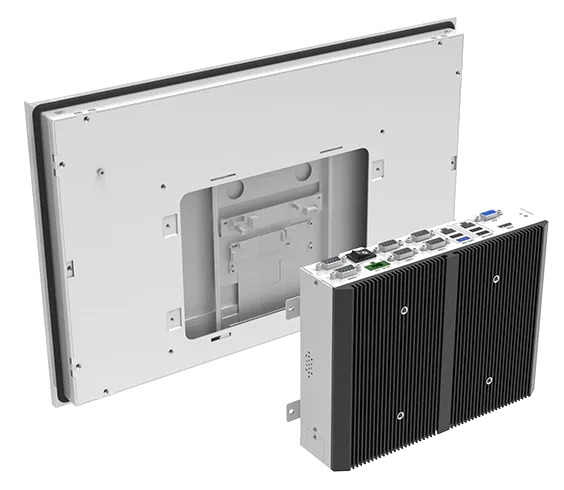

The PC panel is composed of a NODKA touchscreen monitor and a NODKA industrial computer, which has sufficient computing power and low power consumption. The whole device is very well processed and meets the highest quality requirements.
Processor
CPU：Intel® Celeron® J1900
Frequency：Quad core 2.0GHz
L3 Cache：2MB
Chipset：Intel Bay trail SOC
Memory：1 x 204-pin DDR3L-1333MHz SODIMM, support up to 8GB
In 2023, we established cooperation with Nodka, a manufacturer of industrial computers, panel PCs and monitors, and it turned out to be a good choice. We successfully tested the products and then implemented them in full operation at our customers. Let us take a closer look at this innovation in our market, starting with computers.
15'' XGA TFT
