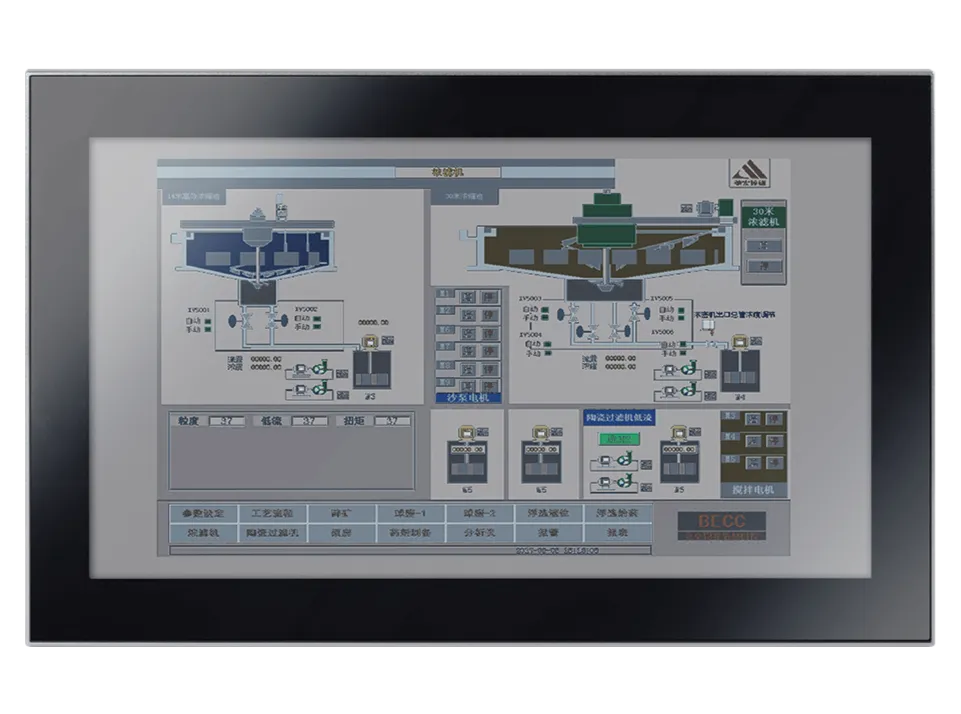

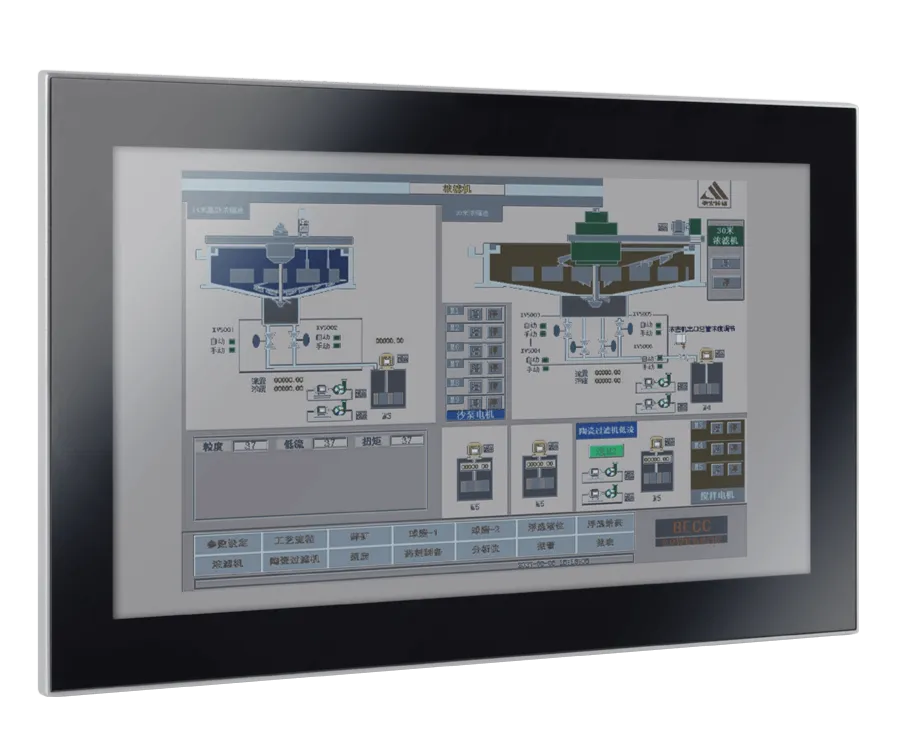

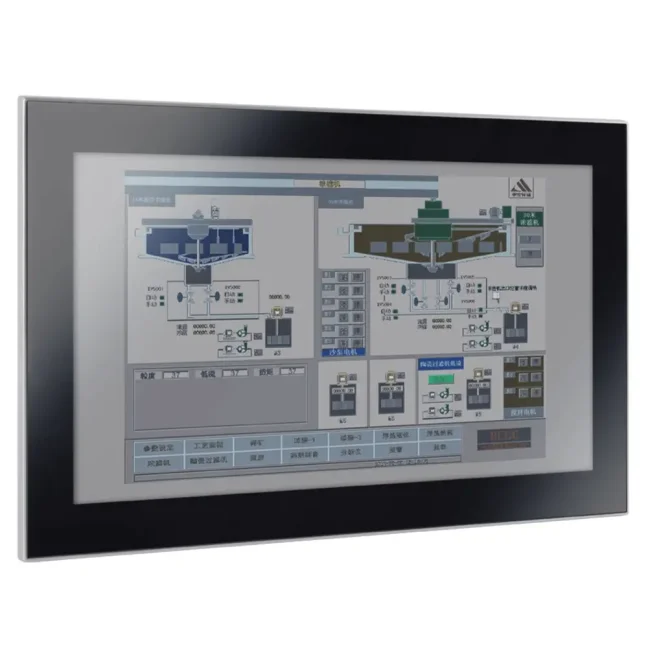

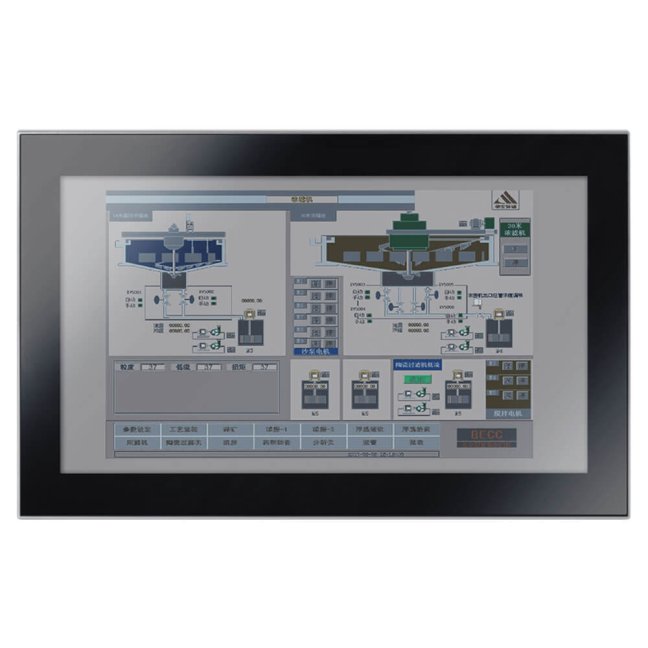

15.6" industrial PC panel NODKA TPC6000-D1564

15.6" industrial PC panel NODKA TPC6000-D1564


15.6" resistive touch display, 1366x768, Intel® Core™ i5-11500T Gen 11, 8G RAM, 128G SSD, 3xGLAN, 6xUSB, 4xSerial, 8xDI+8xDO, HDMI, dual 12-24VDC More

Manufacturer: NODKA Code: TPC6000-D1564-LP-11500T-8G-SSD256G

1 501,10 EUR excl. VAT (1 816,33 EUR incl. VAT)
Recycling fee 0,51 EUR v cene.
Delivery 2-3 weeks
pcs

15.6" resistive touch display, 1366x768, Intel® Core™ i5-11500T Gen 11, 8G RAM, 128G SSD, 3xGLAN, 6xUSB, 4xSerial, 8xDI+8xDO, HDMI, dual 12-24VDC More

Manufacturer: NODKA Code: TPC6000-D1564-LP-11500T-8G-SSD256G

Main features

  • NODKA - výrobce průmyslových počítačů, PC panelů a monitorů15.6" TFT display
  • Resolution 1366x768
  • Touch resistive control display
  • Fanless industrial panel computer
  • Procesor Intel® Core™ i5-11500T Gen 11
  • 3x ports RJ45 10/100/1000Mb/s
  • 4x USB3.0 / 2x USB2.0
  • 4x serial port RS232 / RS485
  • Graphical interface 1x HDMI
  • Dual 12-24 VDC power supply, with over-polarity, over-voltage and over-current protection
  • VESA mounting, in panel
  • Aluminium-magnesium alloy casting, IP65 front protection rating

Warranty

  • The basic warranty provided is 2 years
  • Extended warranty +1 year for +10% of the price
  • Extended warranty +2 year for +20% of the price

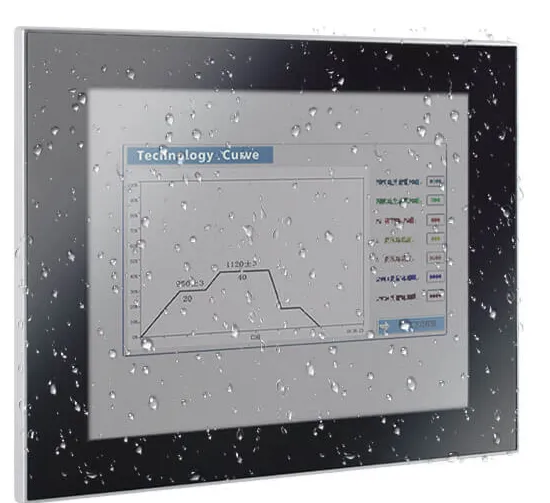

Rugged aluminum design with IP65 and NEMA4 front side protection

The front of the panel meets IP65/NEMA4 Standard and is water and dust resistant. The entire PC panel is sealed, fanless and without ventilation grilles.

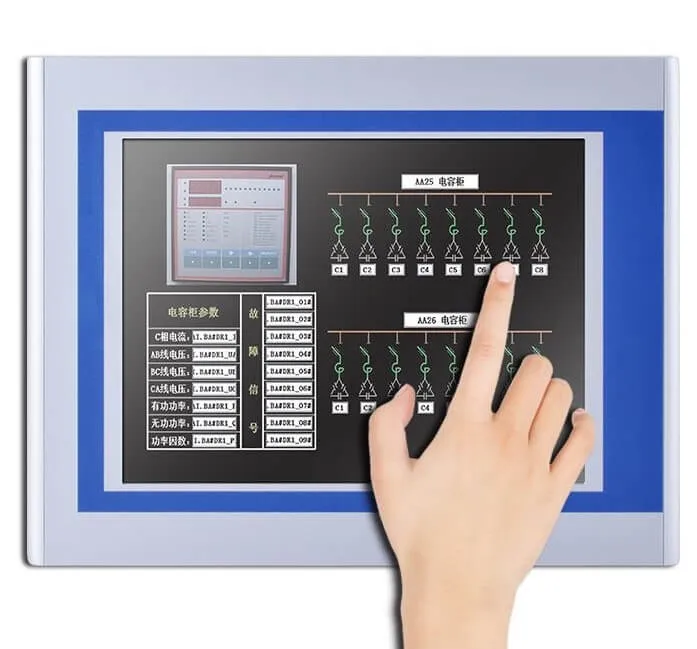

Durable touch screen with resistive touch control

The touch control of the monitor is resistive and is therefore suitable for use with gloves. The monitor is water, dust and oil resistant. The lifetime of the touch screen is up to 50 million clicks. The front panel is neutral, without logos or other lettering. NODKA offers to place your own logo on the monitor.

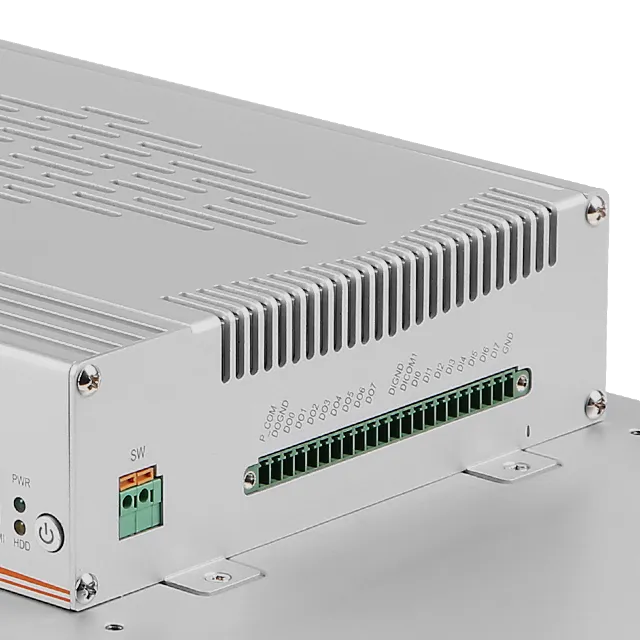

8x digital input and 8x digital output on the side of the computer

Designed for motion control applications, robot control, PLC and other devices. Works well with INtime, VxWorks, RTX, EC-Win and Linux, real-time resolution at microsecond level.

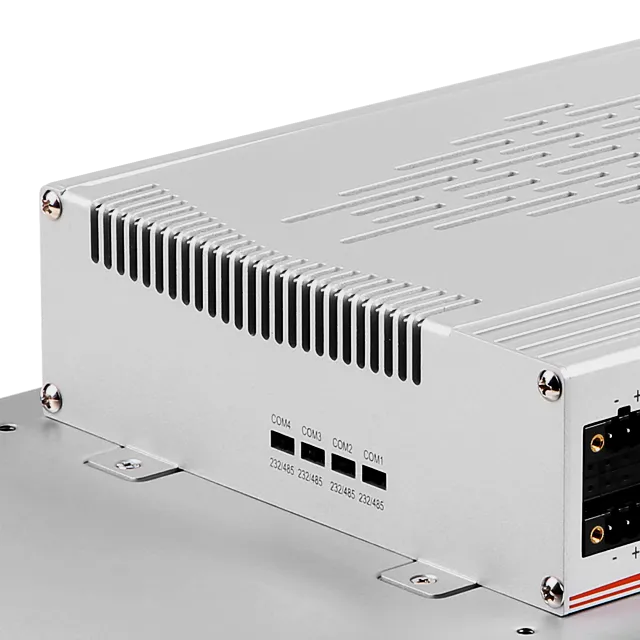

Switches for RS232/RS485 settings for each of the four COM ports


Top-quality details, strong power and low consumption

The PC panel is composed of a NODKA touchscreen monitor and a NODKA industrial computer, which has sufficient computing power and low power consumption. The whole device is very well processed and meets the highest quality requirements.

Processor

  • CPU:Intel® Core™ i5-11500T
  • Chipset:H110
  • Memory:DDR4-2400MHz,max 32GB
  • Storage Medium:1 x M.2 M Key 2280 PCIe Gen3x4 Lane, + 1×mSATA

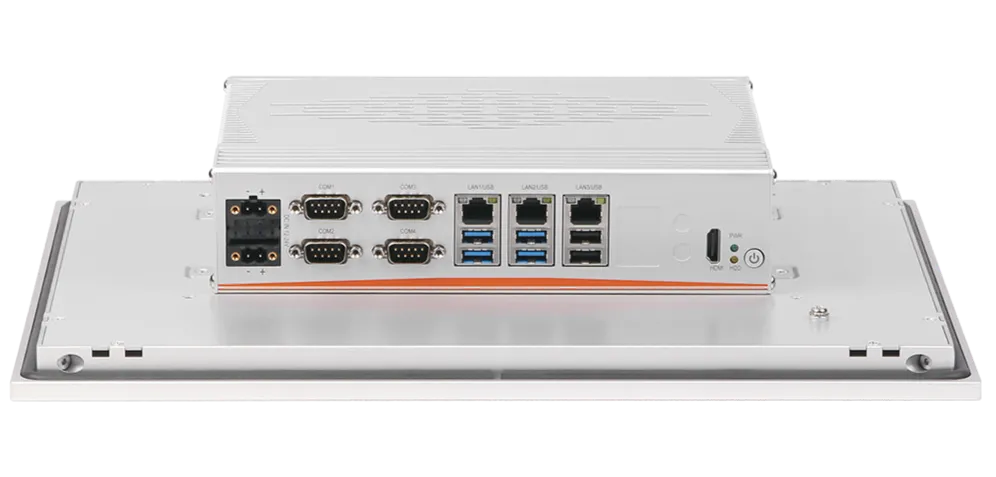

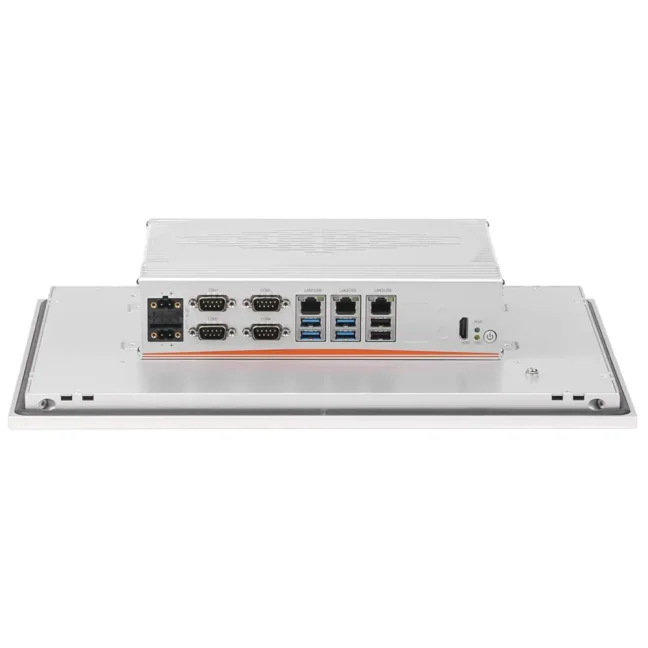

I/O Interface

  • LAN:3× LAN 10/100/1000Mbps
  • USB:4 x USB3.0 / 2 x USB2.0
  • COM:4 x RS-232 / RS-485, interface with surge protection, RS485 supports automatic flow control
  • IO:  8DI+8DO Wet contact input(24V), OC gate output(24V 300mA)
  • Graphical interface: 1x HDMI
  • Expansion: 1 x Mini-PCIe slot

Physical

  • Dimensions: 405mm * 258mm * 74mm
  • Cut Out Size:  387mm * 240mm
  • Weight:4.7kg

Operating System

  • OS:Windows 7, Windows 7 Embedded, Windows 8, Windows 10, Windows 11, Linux, VxWorks, QNX

Power

  • Input Voltage:12-24VDC ±10% , Support reverse connection protection, over voltage protection, over currentprotection
  • Power Consumption:28Watt

LCD

  • LCD Size:15.6" TFT
  • Resolution:1366 x 768
  • Colors:16.7MB
  • Active Area :344.232mm x 193.536 mm
  • Backlight:LED
  • MTBF:30000hrs
  • Pixel Pitch:0.252×0.252
  • Luminance:400cd/m²
  • Contrast Ratio:800 : 1
  • Viewing Angle:(L) 85 / (R) 85 / (T) 50 / (B) 80

Touch Screen

  • Touchscreen Type:Resistive Touch Panel
  • Transmittance:> 78%
  • Surface hardness:Mohs' Number 3H
  • Click Life: 250g / 5,000,000 times

Environment

  • Work temperature:0 ~ 50°C
  • Storage Temperature:-20 ~ 60° C
  • Relative Humidity:5 ~ 95% RH@40°C (Non-condensation)
  • Vibration:Operating Random Vibration Test 5~500Hz, 1.5Grms@with SSD, follow IEC 60068-2-64
  • Shock:Operating 10G peak acceleration (11ms duration), follow IEC 60068-2-27
  • EMC:CE/FCC Class B
  • Water-proof:Front panel IP65
