12,1" industrial PC panel NODKA TPC6000-C123-LH

12,1" industrial PC panel NODKA TPC6000-C123-LH


12,1" capacitive touch screen, 1024x768, Intel® Celeron™ J6412, 8G RAM, 128G SSD, 2xGLAN, 4xUSB, 2xSerial, PS2, VGA+DVI, 12-24VDC More

Manufacturer: NODKA Code: TPC6000-C123-LH-J6412-8G-SSD128G

1 099,20 EUR excl. VAT (1 330,03 EUR incl. VAT)
Recycling fee 0,51 EUR v cene.
Delivery 3-8 days
pcs

12,1" capacitive touch screen, 1024x768, Intel® Celeron™ J6412, 8G RAM, 128G SSD, 2xGLAN, 4xUSB, 2xSerial, PS2, VGA+DVI, 12-24VDC More

Manufacturer: NODKA Code: TPC6000-C123-LH-J6412-8G-SSD128G

Main features

  • NODKA - výrobce průmyslových počítačů, PC panelů a monitorů12.1" XGA TFT
  • Resolution 1024x768
  • Fanless industrial panel computer
  • Processor Intel® Celeron™ J6412
  • 2x ports RJ45  100/1000Mb/s
  • 4x USB 3.0
  • 2x serial port RS232/RS485
  • Graphical interface 1x VGA, 1x DVI-D
  • 1x audio out
  • 1x Mini PCIe slot
  • 1x EasyBUS slot
  • Power input 12-24VDC
  • VESA mounting, in panel
  • Aluminium-magnesium alloy casting, IP65 front protection rating

Warranty

  • The basic warranty provided is 2 years
  • Extended warranty +1 year for +10% of the price
  • Extended warranty +2 year for +20% of the price

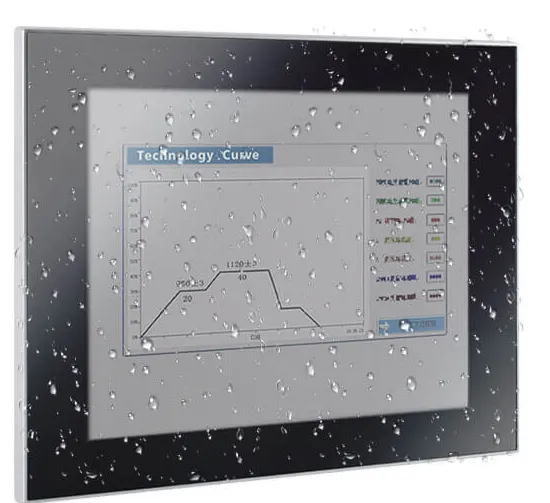

Rugged IP65 and NEMA4 Aluminium Chassis, Fanless design

The front of the panel meets IP65/NEMA4 Standard and is water and dust resistant. The entire PC panel is sealed, fanless and without ventilation holes.

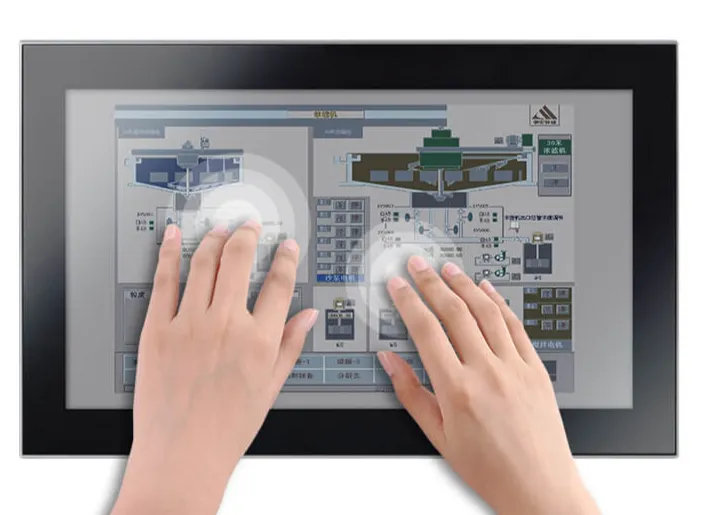

Excellent touch control precision

The touch control of the monitor is capacitive, i.e. it is very sensitive with high resolution and fast response to light touch. The monitor supports multi-touch control for up to 10 touches at a time. The lifetime of the touch screen is up to 10 million clicks. The front panel is neutral, with no logos or other lettering. NODKA offers to place your own logo on the monitor.

Top-quality details, strong power and low consumption

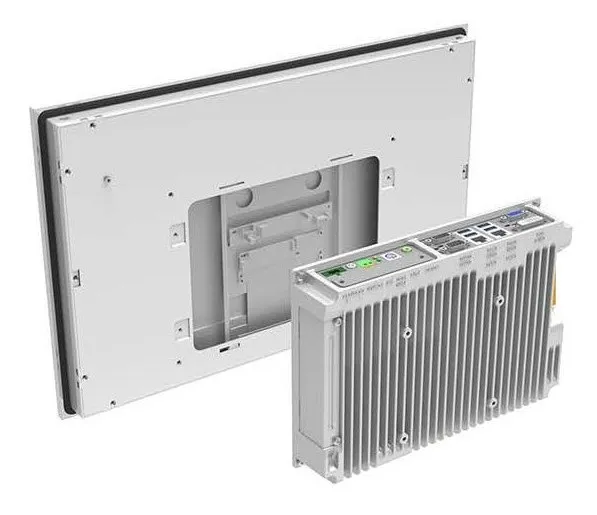

The PC panel is composed of a NODKA touchscreen monitor and a NODKA industrial computer, which has sufficient computing power and low power consumption. The whole device is very well processed and meets the highest quality requirements.


Processor

  • CPU:Intel® Celeron® J6412
  • Frequency:Quad core 2.0GHz
  • L3 Cache:1.5MB
  • Chipset:Integrated PCH-LP
  • Memory:1×DDR4-2400MHz,max 16GB
  • Storage Medium:1 x 2.5" SATA bay + 1 x mSATA

I/O Interface

  • LAN:2 x Intel i211 1000Mbps RJ-45 with surge protection, lightning protection design and 15KV ESD protection
  • USB:4 x USB3.0/2.0/1.1
  • COM:2 x RS-232/RS-485 with surge protection, RS485 support automatic flow control
  • Audio:Realtek ACL662 Audio controller

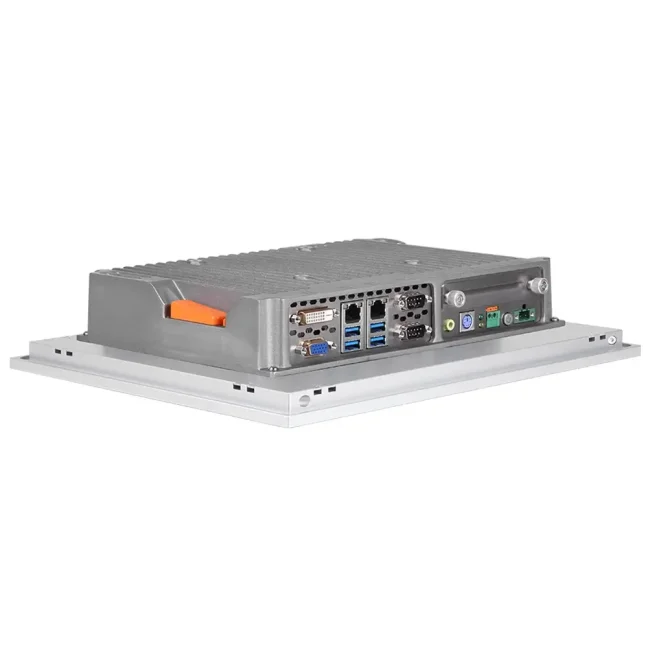

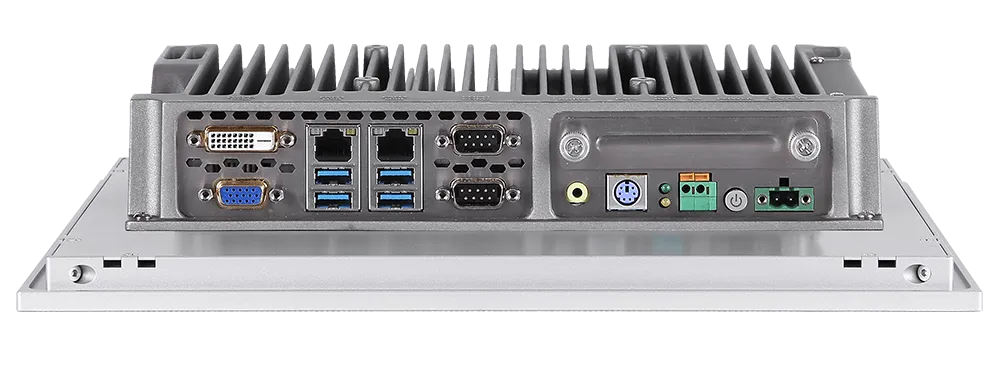

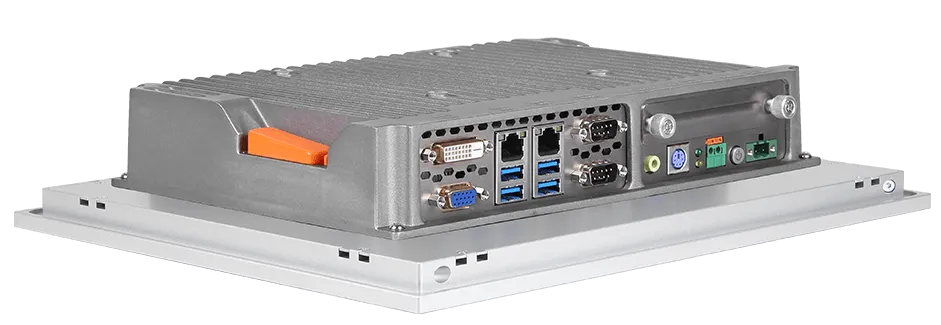

  • Rear I/O:DVI-D / 2 x GLAN / 4 x USB / 2 x COM /2 x PS2 / Line-out/Mic-in

Physical

  • Dimensions :321mm x 247mm x 66mm (12.64" x 9.72" x 2.60")
  • Cut Out Size :304mm x 230mm (11.97" x 9.06")
  • Weight:3.46kg

Operating System

  • OS:Windows 7, Windows 7 Embedded, Windows 8, Windows 10, Ubuntu, QNX, VXWORKS

Power

  • Input Voltage:12-24VDC ±10% , support reverse polarity protection,overvoltage protection,overcurrent protection
  • Power Dissipation:37W(Maximum)

LCD

  • LCD Size:12.1" XGA TFT
  • Resolution:1024 x 768
  • Colors:16.7MB
  • Active Area :245.76mm × 184.32 mm
  • Backlight:LED
  • MTBF:30000hrs
  • Pixel Pitch:0.240 x 0.240
  • Luminance:350cd/m2
  • Contrast Ratio:800:1
  • Viewing Angle:(L) 80 / (R) 80 / (T) 80 / (B) /80

Touch Screen

  • Touchscreen Type:Multi-point capacitive touch screen
  • Transmittance:>87%
  • Controller interface:USB
  • Driver Support:Windows 7, Windows 8, Windows 10, Linux
  • Surface hardness:Mohs' 7H
  • Multi-touch:10 points (windows system)

Environment

  • Work temperature:-20~60℃(-4~140°F)
  • Storage Temperature:-30 ~ 80°C (-22 ~ 176°F)
  • Relative Humidity:5~95%@40℃(,non-condensing)
  • Vibration:SSD applied: 1.5 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis
  • Shock:SSD applied: 10 G, IEC 60068-2-27, Half-sine wave, 11ms duration
  • EMC:CE/FCC Class B
  • Water-proof:Front panel IP65

Expansion Slot

  • MiniPCIe:1×Mini-PCIe slot, extensible 3G,WIFI wireless card; 1×EasyBUS slot
