12,1" industrial PC panel NODKA TPC6000-A122-TH

Pro nenáročné aplikace
Warranty 2 years (option up to 4 years)

12,1" resistive touch screen, 1024x768, Intel® Celeron® J1900, 8G RAM, 128G SSD, 2xGLAN, 4xUSB, 6xSerial, VGA+HDMI, 12VDC More

Manufacturer: NODKA Code: TPC6000-A122-TH-8G-SSD128G

918,40 EUR excl. VAT (1 111,26 EUR incl. VAT)
Recycling fee 0,51 EUR v cene.
Delivery 2-3 weeks Watch availability
pcs
(0 pcs in stock)
Buy more for 230 EUR and get free delivery!
0 EUR230 EUR

12,1" resistive touch screen, 1024x768, Intel® Celeron® J1900, 8G RAM, 128G SSD, 2xGLAN, 4xUSB, 6xSerial, VGA+HDMI, 12VDC More

Manufacturer: NODKA Code: TPC6000-A122-TH-8G-SSD128G

Main features

  • NODKA - výrobce průmyslových počítačů, PC panelů a monitorů12.1" XGA TFT
  • 1024x768
  • Fanless Panel PC based on Intel® Celeron® J1900 processor
    Aluminum-magnesium alloy die-casting, cover with PET film, IP65 degree of protection
  • Onboard Intel®Bay trail E3845/J1900 quad-core processor
  • 2 RTL8111F 10/100/1000Mbps RJ45 port
  • 3 USB2.0 and 1 USB3.0
  • 6 RS232 serial ports(COM1, COM5 and COM6 optional RS485)
  • DC12V power input, optional DC9~30V, with reverse polarity protection measures

Warranty

  • The basic warranty provided is 2 years
  • Extended warranty +1 year for +10% of the price
  • Extended warranty +2 year for +20% of the price

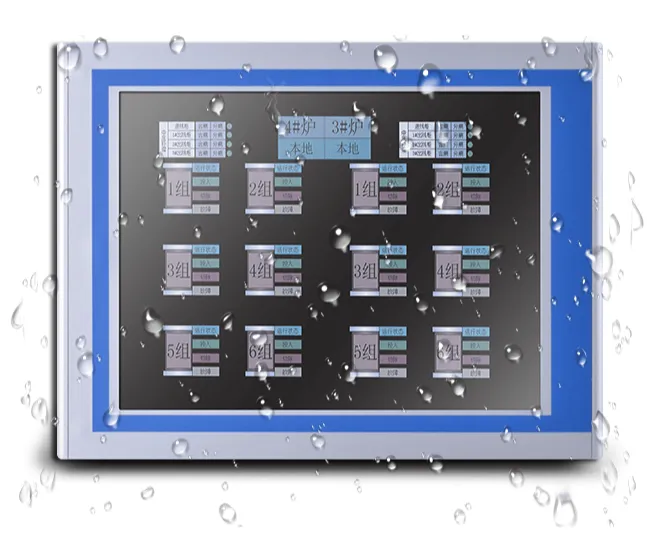

Rugged IP65 and NEMA4 Aluminium Chassis, Fanless design

The front of the panel meets IP65/NEMA4 Standard and is water and dust resistant. The entire PC panel is sealed, fanless and without ventilation holes.

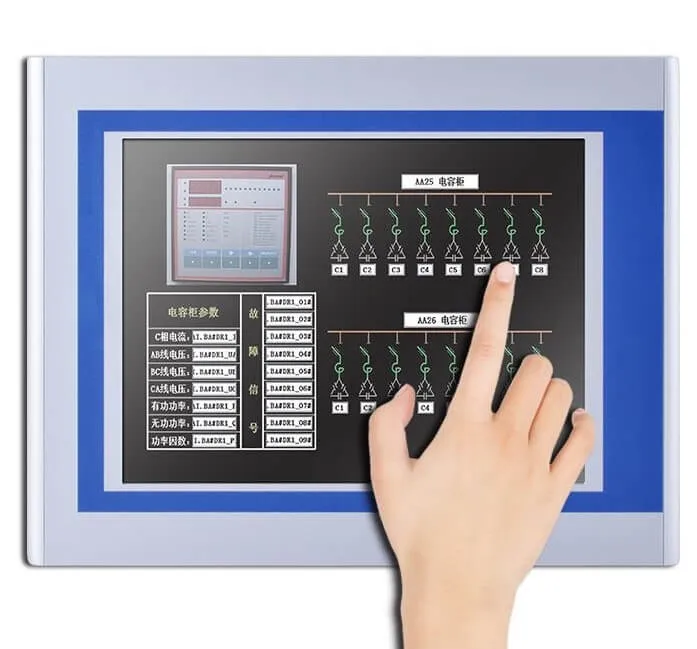

Rugged touch screen with resistive touch control

The monitor has a resistive touch, resistant to water, dust and oil. Touch screen lifetime is up to 50 million clicks. The front panel is neutral, with no logos or other lettering. NODKA offers to place your own logo on the monitor.

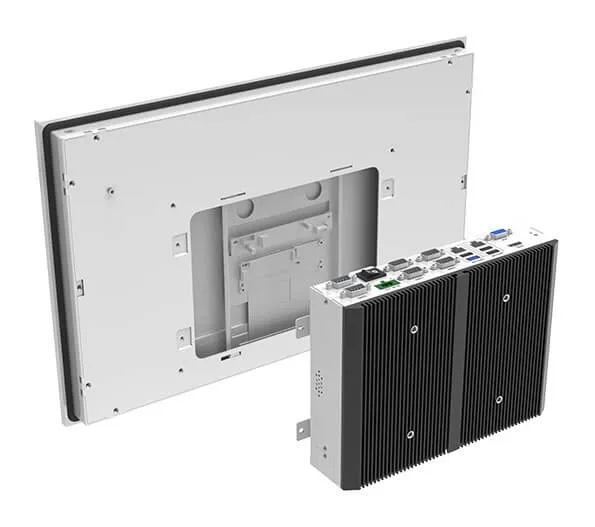

Top-quality details, strong power and low consumption

The PC panel is composed of a NODKA touchscreen monitor and a NODKA industrial computer, which has sufficient computing power and low power consumption. The whole device is very well processed and meets the highest quality requirements.

Processor

  • CPU：Intel® Celeron® J1900
  • Frequency：Quad core 2.0GHz
  • L3 Cache：2MB
  • Chipset：Intel Bay trail SOC
  • Memory：1×DDR3L-1333，max 8GB
  • Storage Medium：1×2.5" SATA bay + 1×mSATA

I/O Interface

  • LAN：2×Realtek 1000Mbps RJ-45以with surge protection,lightning protection design and 15KV ESD protection
  • USB：1×USB3.0 / 2.0 / 1.1, 3×USB2.0 / 1.1
  • COM：1×RS232 / 485 (COM1), 5×RS232 (Optional 2xRS48,RS485 support automatic flow control）
  • Audio：Optional
  • Rear I/O：VGA / HDMI / 2×GLAN / 4×USB / 6×COM

Physical

  • Dimensions：321mm×243mm×78mm (12.64"×9.57"×3.07")
  • Cut Out Size：304mm×230mm (11.97"×9.06")
  • Weight：3.85kg

Operating System

  • OS：Windows 7, Windows 7 Embedded, Windows 8, Windows 10, Linux, VxWorks, QNX

Power

  • Input Voltage：DC 12V, support reverse polarity protection, +9~+30V (Option)
  • Power Dissipation：33.6Watt(Max.)

LCD

  • LCD Size：12.1" XGA TFT
  • Resolution：1024x768
  • Colors：16.7MB
  • Active Area：246mm×184mm (9.69"×7.24")
  • Backlight：WLED
  • MTBF：30000hrs
  • Pixel Pitch：0.240×0.240
  • Luminance：350cd/m²
  • Contrast Ratio：800 : 1
  • Viewing Angle：(L) 80 / (R) 80 / (T) 80 / (B) 80

Touch Screen

  • Touchscreen Type：Resistive touch screen
  • Resolution：4096 x 4096
  • Transmittance：> 75%
  • Controller interface：USB
  • Driver Support：Windows 7, Windows8, Windows10, Linux
  • Response Time：< 5ms
  • Surface hardness：Mohs' Number 3H
  • Click life：250g / 35,000,000 times
  • Draw life：250g / 5,000,000 times

Environment

  • Work temperature：-20 ~ 60°C (-4~140°F)(Wide temperature SSD) / 0 ~ 45°C (32~113°F)(General temperature HDD/SSD)
  • Storage Temperature：-30 ~ 80°C (-22~176°F)
  • Relative Humidity：5 ~ 95% RH@40°C (Non-condensation)
  • Vibration：Operating Random Vibration Test 5~500Hz, 1.5Grms@with SSD, follow IEC 60068-2-64
  • Shock：Operating 20G peak acceleration (11ms duration), follow IEC 60068-2-27
  • EMC：CE/FCC Class B
  • Water-proof：Front panel IP65

Expansion Slot

  • MiniPCIe：1×Mini-PCIe slot, extensible 3G,WIFI wireless card
Download
Datasheet TPC6000-A122-TH (pdf, 498.3 kB)
NODKA Company.pdf (pdf, 6 MB)
