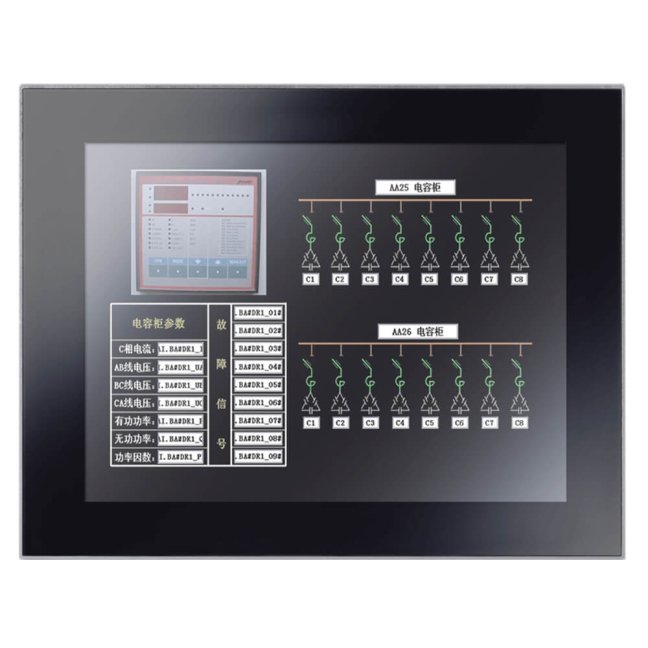

10,4" industrial PC panel NODKA TPC6000-C1043-LH

Good price/performance ratio

Warranty 2 years (option up to 4 years)

10,4" capacitive touch screen, 1024x768, Intel® Celeron™ J6412, 8G RAM, 128G SSD, 2xGLAN, 4xUSB, 2xSerial, PS2, VGA+DVI, 12-24VDC More

Manufacturer: NODKA Code: TPC6000-C1043-LH-J6412-8G-SSD128G

1 011,50 EUR excl. VAT (1 223,92 EUR incl. VAT)

Recycling fee 0,51 EUR v cene.

Delivery 3-8 days Watch availability

pcs

(0 pcs in stock)

Buy more for 230 EUR and get free delivery!

0 EUR230 EUR

10,4" capacitive touch screen, 1024x768, Intel® Celeron™ J6412, 8G RAM, 128G SSD, 2xGLAN, 4xUSB, 2xSerial, PS2, VGA+DVI, 12-24VDC More

Manufacturer: NODKA Code: TPC6000-C1043-LH-J6412-8G-SSD128G

Main features

10.4" XGA TFT
Resolution 1024x768
Fanless industrial panel computer
Processor Intel® Celeron™ J6412
2x ports RJ45 100/1000Mb/s
4x USB 3.0
2x serial port RS232/RS485
Graphical interface 1x VGA, 1x DVI-D
1x audio out
1x Mini PCIe slot
1x EasyBUS slot
Power input 12-24VDC
VESA mounting, in panel
Aluminium-magnesium alloy casting, IP65 front protection rating

Warranty

The basic warranty provided is 2 years
Extended warranty +1 year for +10% of the price
Extended warranty +2 year for +20% of the price

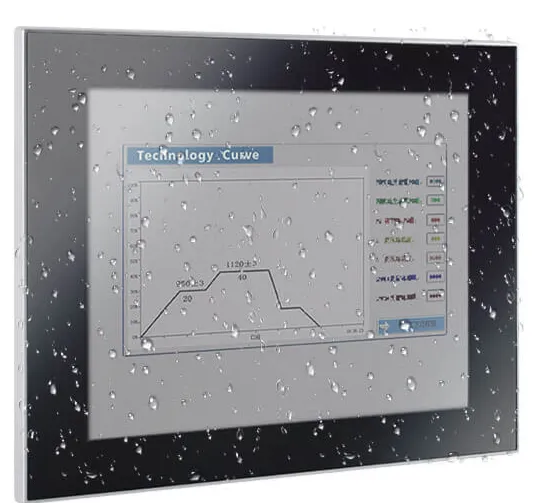

Rugged IP65 and NEMA4 Aluminium Chassis, Fanless design

The front of the panel meets IP65/NEMA4 Standard and is water and dust resistant. The entire PC panel is sealed, fanless and without ventilation holes.

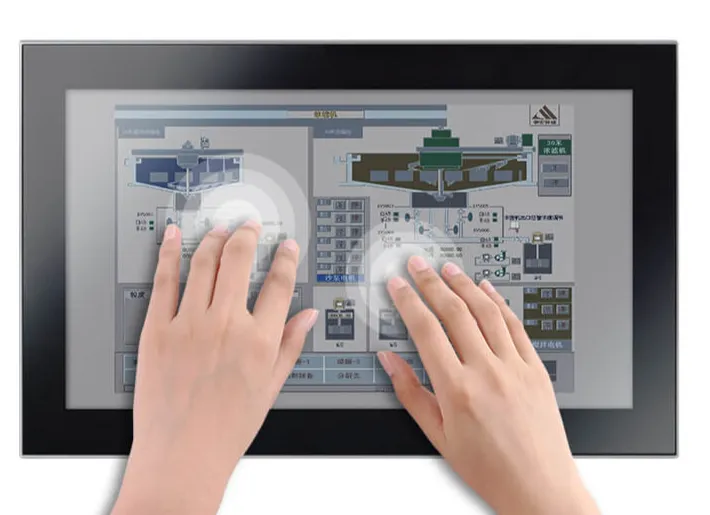

Excellent touch control precision

The touch control of the monitor is capacitive, i.e. it is very sensitive with high resolution and fast response to light touch. The monitor supports multi-touch control for up to 10 touches at a time. The lifetime of the touch screen is up to 10 million clicks. The front panel is neutral, with no logos or other lettering. NODKA offers to place your own logo on the monitor.

Top-quality details, strong power and low consumption

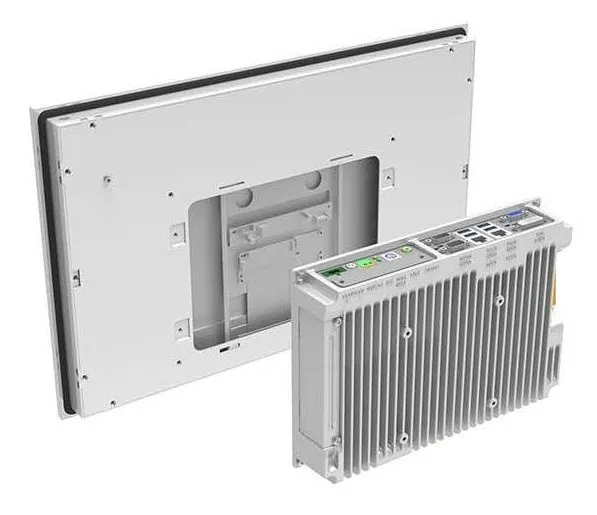

The PC panel is composed of a NODKA touchscreen monitor and a NODKA industrial computer, which has sufficient computing power and low power consumption. The whole device is very well processed and meets the highest quality requirements.

Processor

CPU：Intel® Celeron® J6412
Frequency：Quad core 2.0GHz
L3 Cache：1.5MB
Chipset：Integrated PCH-LP
Memory：1×DDR4-2400MHz，max 16GB
Storage Medium：1 x 2.5" SATA bay + 1 x mSATA

I/O Interface

LAN：2 x Intel i211 1000Mbps RJ-45 with surge protection, lightning protection design and 15KV ESD protection
USB：4 x USB3.0/2.0/1.1
COM：2 x RS-232/RS-485 with surge protection, RS485 support automatic flow control
Audio：Realtek ACL662 Audio controller

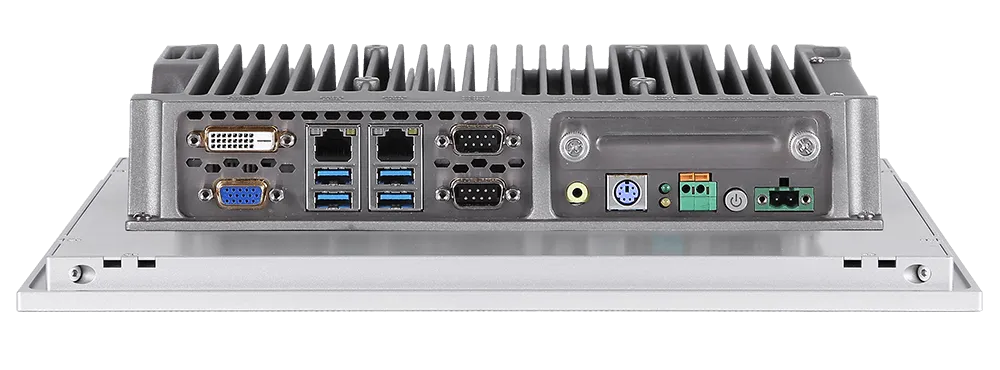

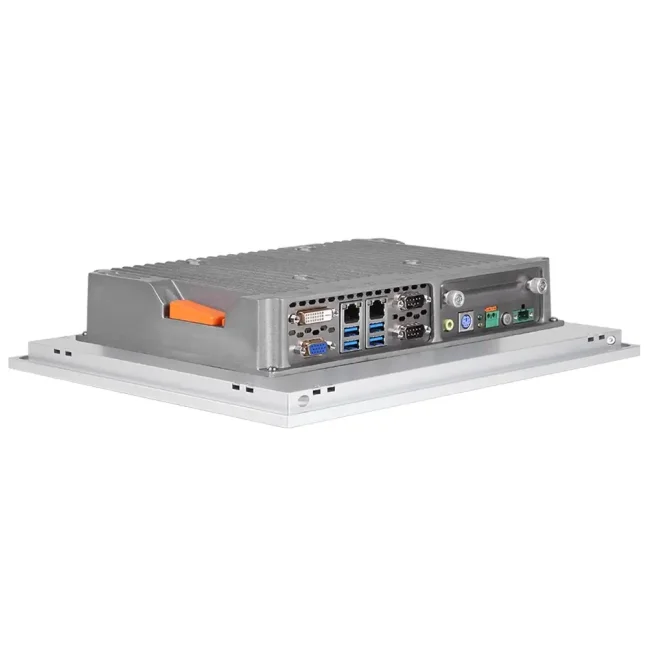

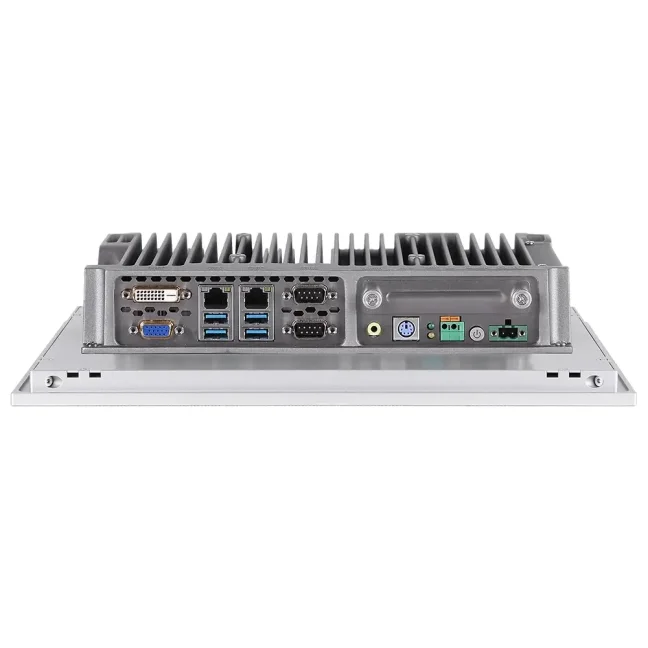

Rear I/O：DVI-D / 2 x GLAN / 4 x USB / 2 x COM /2 x PS2 / Line-out/Mic-in

Physical

Dimensions ：298.5mm×238.5mm×65mm (11.75"×9.38"×2.60")
Cut Out Size ：280.5mm×220.5mm (11.04"×8.68")
Weight：3.46kg

Operating System

OS：Windows 7, Windows 7 Embedded, Windows 8, Windows 10, Ubuntu, QNX, VXWORKS

Power

Input Voltage：12-24VDC ±10% , support reverse polarity protection,overvoltage protection,overcurrent protection
Power Dissipation：35W（Maximum）

LCD

LCD Size：10.4" XGA TFT
Resolution：1024 x 768
Colors：16.7MB
Active Area ：211.2mm×158.4mm (8.31"×6.24")
Backlight：LED
MTBF：30000hrs
Pixel Pitch：0.206×0.206
Luminance：350cd/m2
Contrast Ratio：900:1
Viewing Angle：(L) 75 / (R) 75 / (T) 75 / (B) 75

Touch Screen

Touchscreen Type：Multi-point capacitive touch screen
Transmittance：＞87%
Controller interface：USB
Driver Support：Windows 7, Windows 8, Windows 10, Linux
Surface hardness：Mohs' 7H
Multi-touch：10 points (windows system)

Environment

Work temperature：-20~60℃（-4~140°F）
Storage Temperature：-30 ~ 80°C (-22 ~ 176°F)
Relative Humidity：5~95%@40℃(,non-condensing)
Vibration：SSD applied: 1.5 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis
Shock：SSD applied: 10 G, IEC 60068-2-27, Half-sine wave, 11ms duration
EMC：CE/FCC Class B
Water-proof：Front panel IP65

Expansion Slot

MiniPCIe：1×Mini-PCIe slot, extensible 3G,WIFI wireless card; 1×EasyBUS slot
